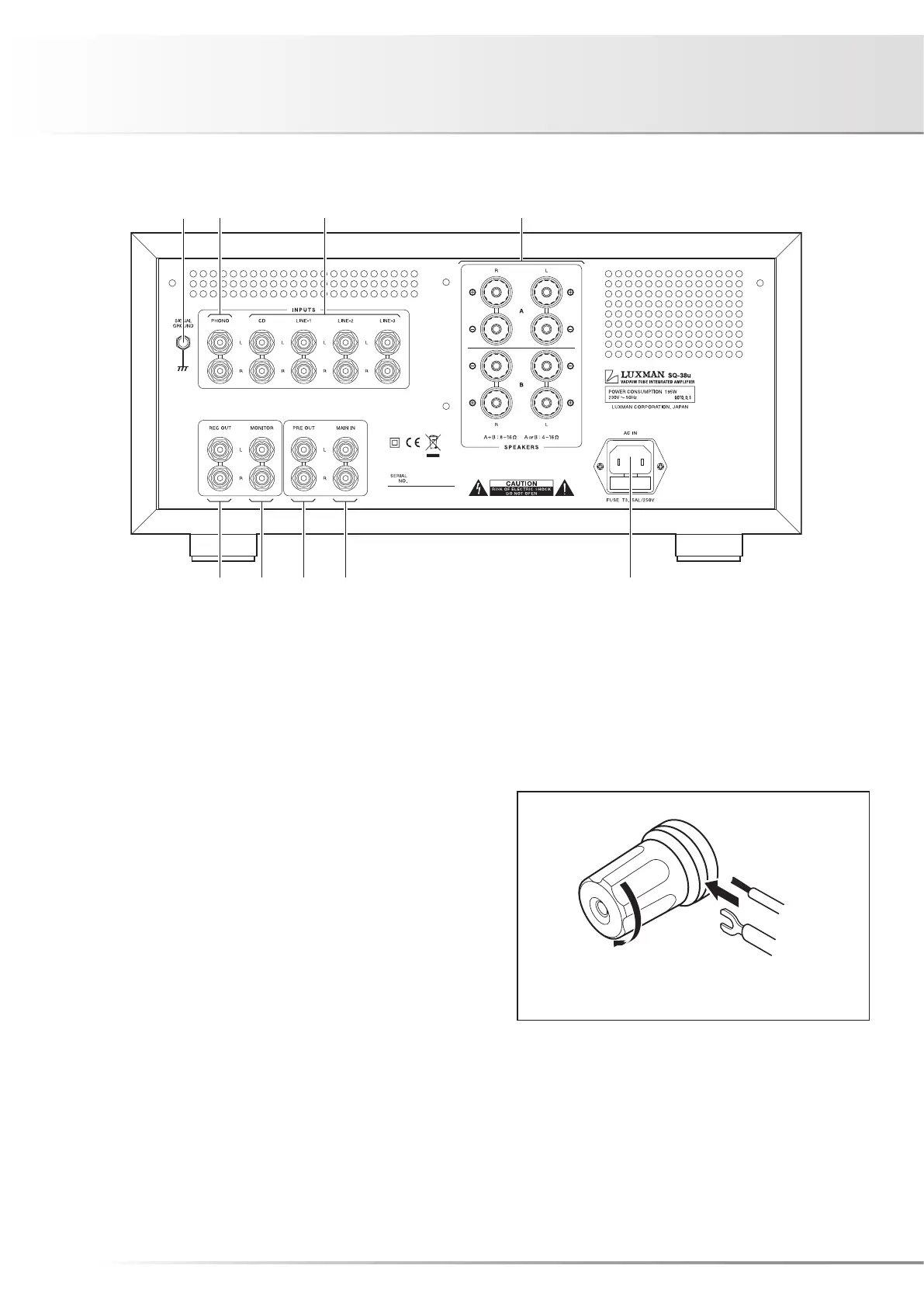

18. Signal ground terminal
(SIGNAL GROUND)
Is a ground terminal for devices to be connected to this unit.
This terminal is used to reduce noise when other devices
are connected, and is connected to an analog player or a
tone arm. This terminal is designed not for safety.
19. Phono input terminals (PHONO)
Are used as an input terminal to connect an RCA pin-plug
cable from an analog player or a tone arm.
20. Line input terminals
(CD, LINE-1, LINE-2, LINE-3)
Are used for high-level signal inputs from a CD/DVD player,
a SACD player, a tuner, a video deck, a TV, and other such
devices. These input terminals offer the same functions.
21. Speaker output terminals (SPEAKERS)
Connects a speaker system. The right speaker terminal
shall be connected to the R side, and the left speaker termi-
nal shall be connected to the L side in consideration of the
polarity (! and @).
For general
type terminal
18 19
2223
2120
242526
Names and Functions
