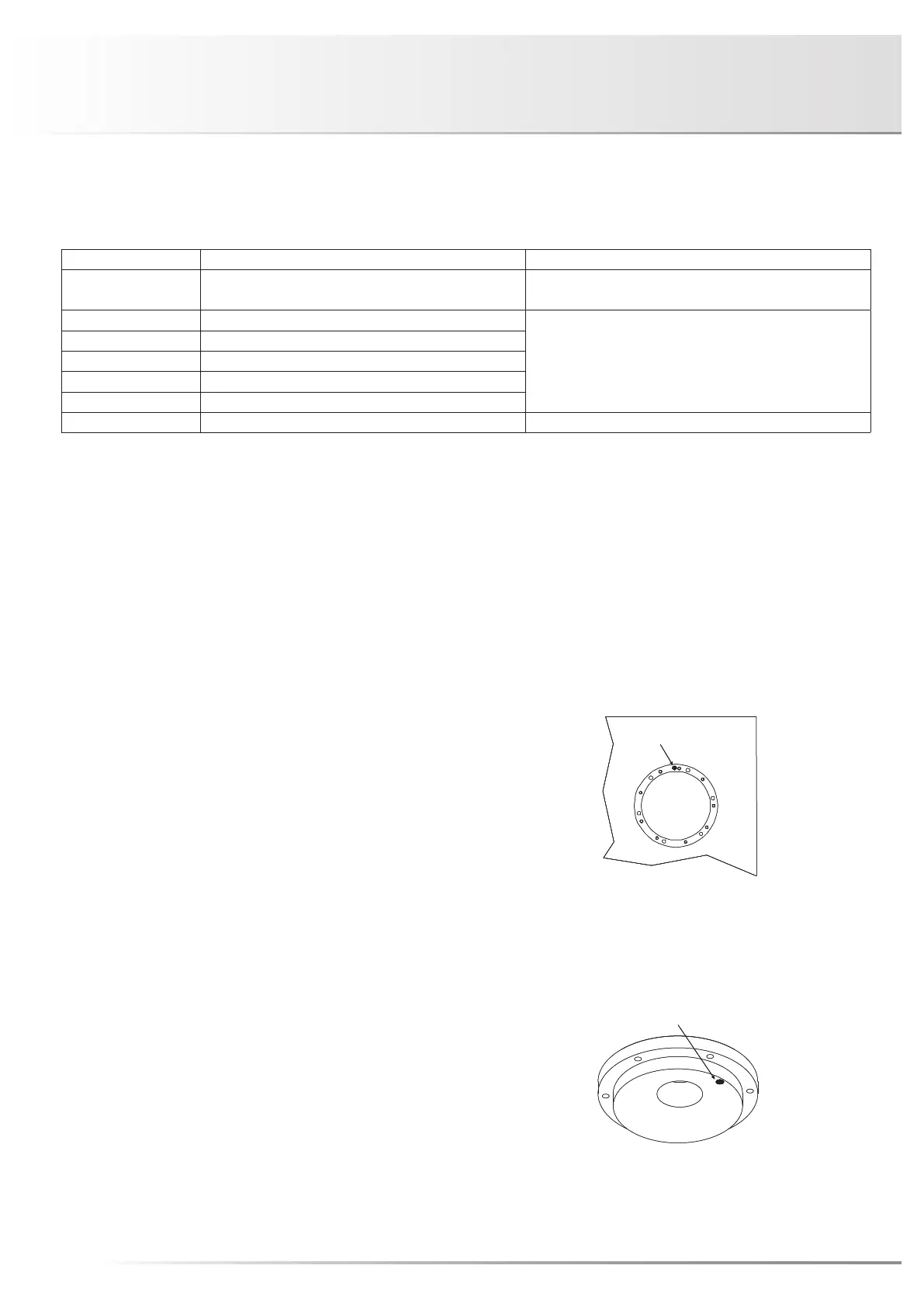

How to replace tone arm
Model name Compatible tone arm Contents
OPPD-AB1 SME 3009R/ 3010R/ Series M2-9R/
Series M2-9, M2-10/ Series IV, V
Arm base, mounting wrench, arm mounting screws
(4 pcs)*
1
, instruction manual
OPPD-AB2 FR64/ 64S/ 64FX, IKEDA IT-345
Arm base, mounting wrench, instruction manual
OPPD-AB3 SAEC WE-308
OPPD-AB4 SAEC WE-407/ 23
OPPD-AB5 ORTOFON AS-212S/ RD-212D
OPPD-AB6 Universal type (no arm mounting hole)
OPPD-AB11L*
2
SME 3012R Arm base, mounting wrench, instruction manual
*1: The supplied arm mounting screws (4 pieces) shall be used to mount Series M2-9, M2-10, Series IV, or V. Do not use the screws
supplied with the tone arm, but use the screws supplied with the optional arm base.
*2: This arm base shall be mount on the side face of the main unit to use a long type tone arm. Refer to the instruction manual of the
arm base for further information about how to mount it.
Concerning how to replace the tone arm, follow the procedure
below, and be careful not to damage the main unit (PD-191A)
or arm base. In addition, unplug the power cable of the main
unit (PD-191A) before replacement.
When the arm is adjusted after replacement, conduct adjust-
ment by following the contents of the instruction manual of your
tone arm.
1. Removal of the arm and arm base of
this product (PD-191A)
Remove the rubber mat, platter, and belt from the main unit.
Loosen the screw tightening the cable holder securing the
phono cable, and remove the phono cable from the main
unit.
Use the arm base cover removal wrench (3.0 mm) supplied
with the main unit to remove the mounting screws (6 piec-
es) from the main unit. (Keep the removal mounting screws
temporarily because they are used to mount the optional
arm base later.)
When the arm base is removed from the main unit, unplug
the phono cable from the tone arm.
2. Mounting of the tone arm on the arm
base
When your tone arm is mounted on the purchased arm
base, follow the instruction manual for the optional arm
base.
3. Mounting of the arm base on the main
unit (PD-191A)
A golden seal is attached on the main unit (PD-191A) from
which the arm base is removed. Put the arm base so that
the golden seals are aligned, and align the position of the
screw hole on the arm base side with the position of the
screw hole on the main unit side (PD-191A). Next, use the
mounting screws removed from the original arm base to
fasten the arm base securely.
Note:
Loosely tightening the screws may exert an adverse effect
on sound quality. Therefore, Tighten the screws firmly.
Illustration of the main unit (PD-191A) with
the arm base removed
Golden seal
Golden seal
Adjust the position so that the golden seal positions are
aligned at mounting the arm base on the main unit.
Position of the golden seal on the arm base side (example)
Replacing the arm base mounted on this product (PD-191A) with the optional arm base allows you to mount your tone arm. Tone arms
applicable to the optional arm base are shown in the table below.
