BELT DRIVE ANALOG PLAYER PD-171AL
11
4. Tone arm mounting
The arm bases listed below are optionally available for
mounting the following tone arms:
Purchase an arm base according to the tone arm to be
used.
List of optional arm bases
Arm base name Applicable tone arm Accessories
OPPD-AB1 SME 3009R / 3010R Arm base mounting wrench (3 mm) 1 pc.
OPPD-AB2 FR64/64S/64FX, IKEDA IT-345 Arm base mounting wrench (3 mm) 1 pc.
OPPD-AB3 SAEC WE-308 Arm base mounting wrench (3 mm) 1 pc.
OPPD-AB4 SAEC WE-407/23 Arm base mounting wrench (3 mm) 1 pc.
OPPD-AB5 ORTOFON AS-212S / RS-212D Arm base mounting wrench (3 mm) 1 pc.
OPPD-AB6 Universal
Note 1
Arm base mounting wrench (3 mm) 1 pc.
Note 1: OPPD-AB6 This arm base (universal) has no tone arm mounting hole. If your tone arm is not found in the list of optional arm
bases, use this arm base after making a tone arm mounting hole for mounting. Make the mounting hold shape and decide its
position by following the operating instructions of your tone arm.
1. Remove the screws (6 pieces) that attach the arm base
cover using the supplied hex wrench.
2. Mount the tone arm on the optional arm base.
3. Align the mounting holes between the tone arm-mounted
arm base and this product.
Adjust the position relationship between the arm base
and main unit according to the operating instructions of
the optional arm base.
4. Insert the mounting screw into the hole of the arm base
and tighten it using the hex wrench securely.
If the screw is not sufficiently tightened, the sound quality
may be adversely affected. Thus tighten the screw securely.
5. Connect the supplied phono cable to the tone arm se-
curely.
6. Secure the phono cable using the supplied phono cable
securing cushion.
Select a cushion whose thickness is best suited for
placement.
* Follow the operating instructions of the tone arm for how
to mount the tone arm.
* Refer to the operation instructions of the tone arm for tone
arm adjustments (overhang adjustment, lateral balance
adjustment, anti-skating
Note 2
adjustment, tone arm hori-
zontal adjustment, stylus pressure adjustment, etc.).
Note 2: Anti-skating is also called as inside force canceler.

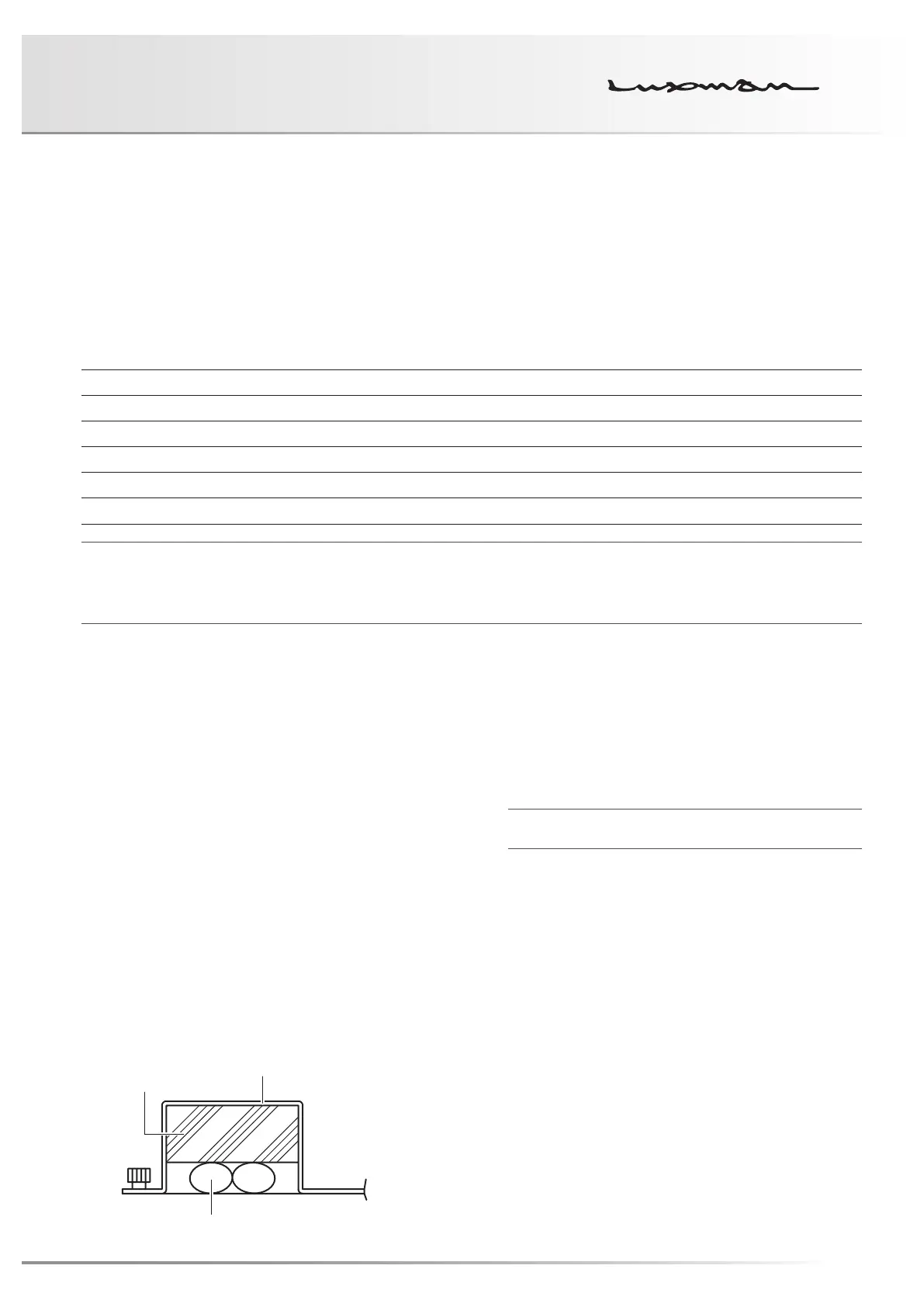

Phono cable
securing cushion
Cable holder
Phono cable
