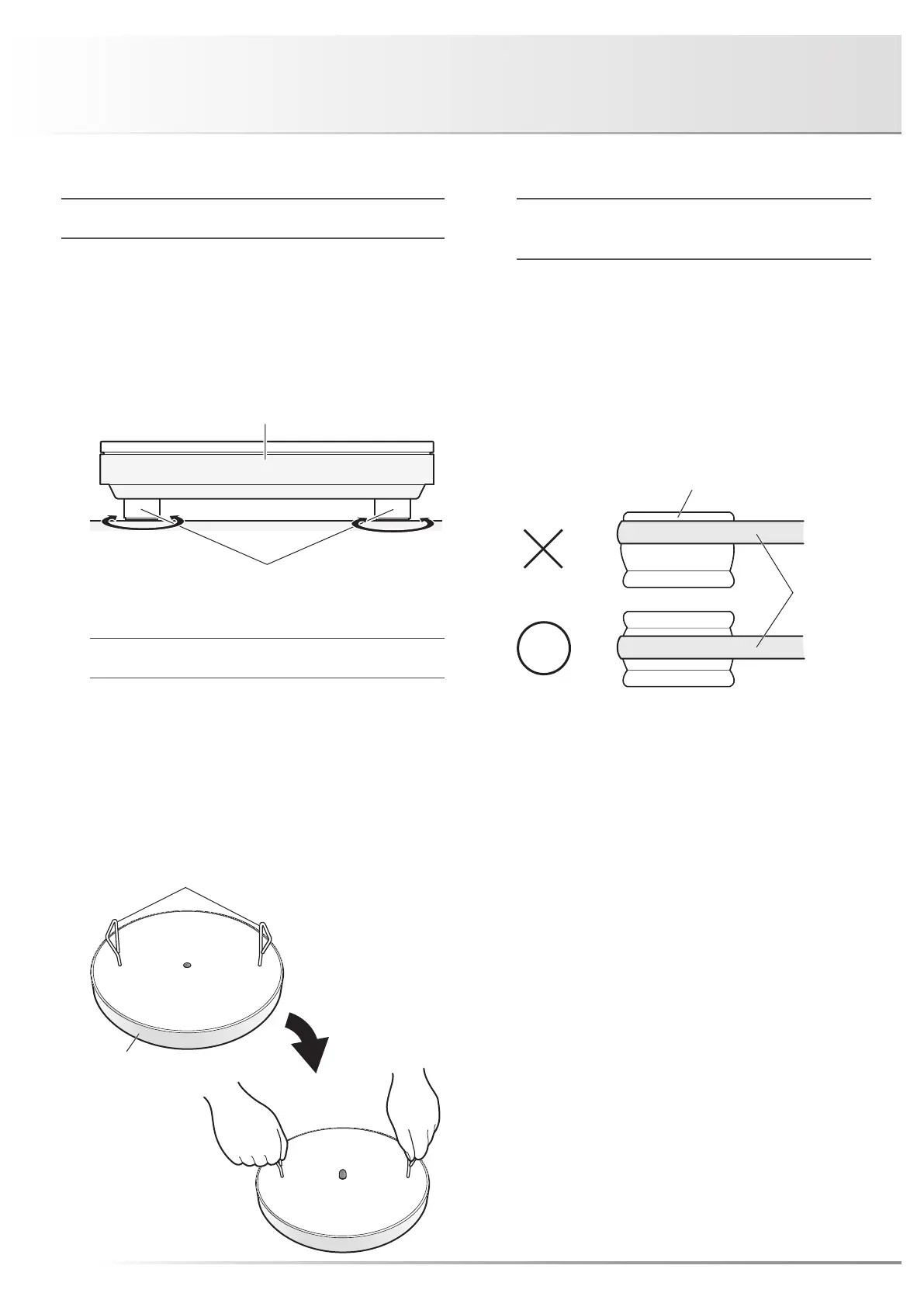

How to Assemble
Do not turn on the power until assembly is completed.
1. Installation of main body
Install the main body on a rack that is in a position as hori-
zontal as possible.
If the mounting position is inclined, rotate the insulators on
four corners of the bottom side to adjust the whole horizon-
tal balance.
Counterclockwise for up, and clockwise for down.
2. Platter mounting
Engage the supplied platter mount handles in the platter,
align the center of the platter with the center spindle while
holding the handles, and engage them.
Be sure to use both hands to hold the platter and mount it
while using caution not to apply any unreasonable force to
the center spindle.
Exercise extra care to handle the platter because the platter
is heavy.
3. Belt wrapping
Firstly, wrap the belt around the turntable. Secondly, wrap
the belt that is wrapped around the turntable around the
pulley. (There is no difference between inside and outside
on belt.)
Rotate the turntable with your hand a few times, and check
to see that the belt is wrapped around the correct position
of the pulley.
Insulator
Player unit
Platter mount handle
Platter
Rubber belt
Motor pulley
