SPECIFICATION SUBMITTAL Page
Job Name:
Job Number:
Model Numbers:
Caséta by Lutron Load Controls
369987l 23 2.24.23

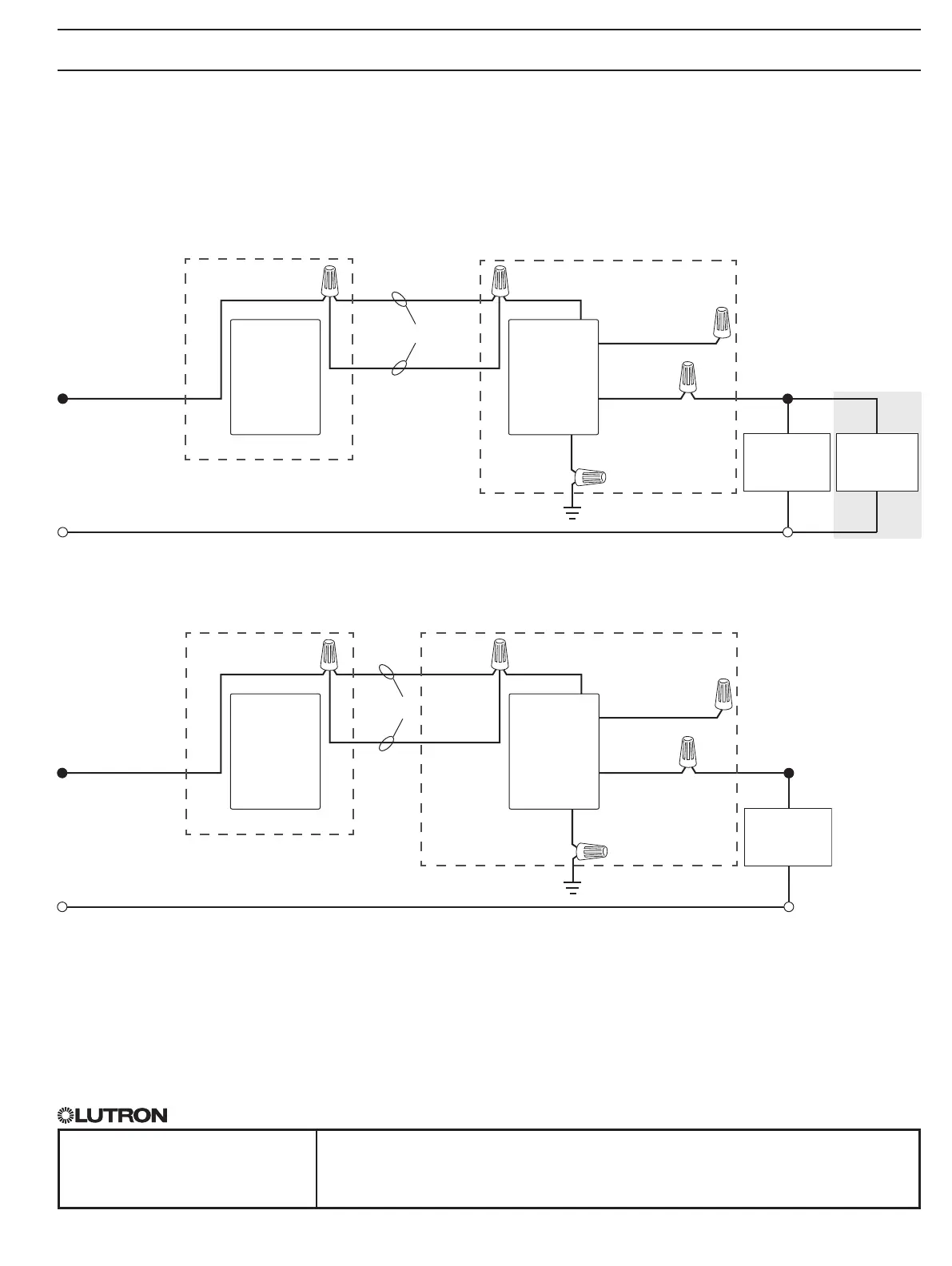

Wiring Diagrams - Dimmers (continued)
1
When using controls without mechanical 3-way switch, cap the blue terminal. Do not connect the blue wire to any other wiring or to ground.
2
A LUT-MLC ensures proper function when LED, fluorescent, or ELV loads are used. Install the LUT-MLC inside a load fixture or in a separate junction box
within the circuit.
3
The mechanical switch will need to be removed so the Pico remote control can be installed.
4
When using a Pico in a 3-way installation with a dimmer the Black and Red wires are reversible.
5
Blue wire is only present on the PD-10NXD and DVRL-6L models.
3-Way Installation (load is controlled from 2 locations) (continued)
Option 2: With Pico remote controls
PJ2-2B-xx and wallbox mounting adapters (PICO-WBX-ADAPT)
BlackBlack
DVRF-6L
Pico
Remote
Control and
Wallbox
Mounting
Adapter
3
LUT-MLC
2
Load
Line / Hot
Neutral
Green
Ground
Red
Blue
1, 5
120 V~
50 / 60 Hz
Travelers
DVRF-6L
Location 1 Location 2
BlackBlack
PD-10NXD
PD-5NE
Pico
Remote
Control and
Wallbox
Mounting
Adapter
3
Load
Line / Hot
Neutral
Green
Ground
Red
4
Blue
1, 5
120 V~
50 / 60 Hz
Travelers
PD-10NXD, PD-5NE
Location 1 Location 2
DVRF-6L
23
