SPECIFICATION SUBMITTAL Page
Job Name:
Job Number:
Model Numbers:
Caséta by Lutron Load Controls
369987l 20 2.24.23

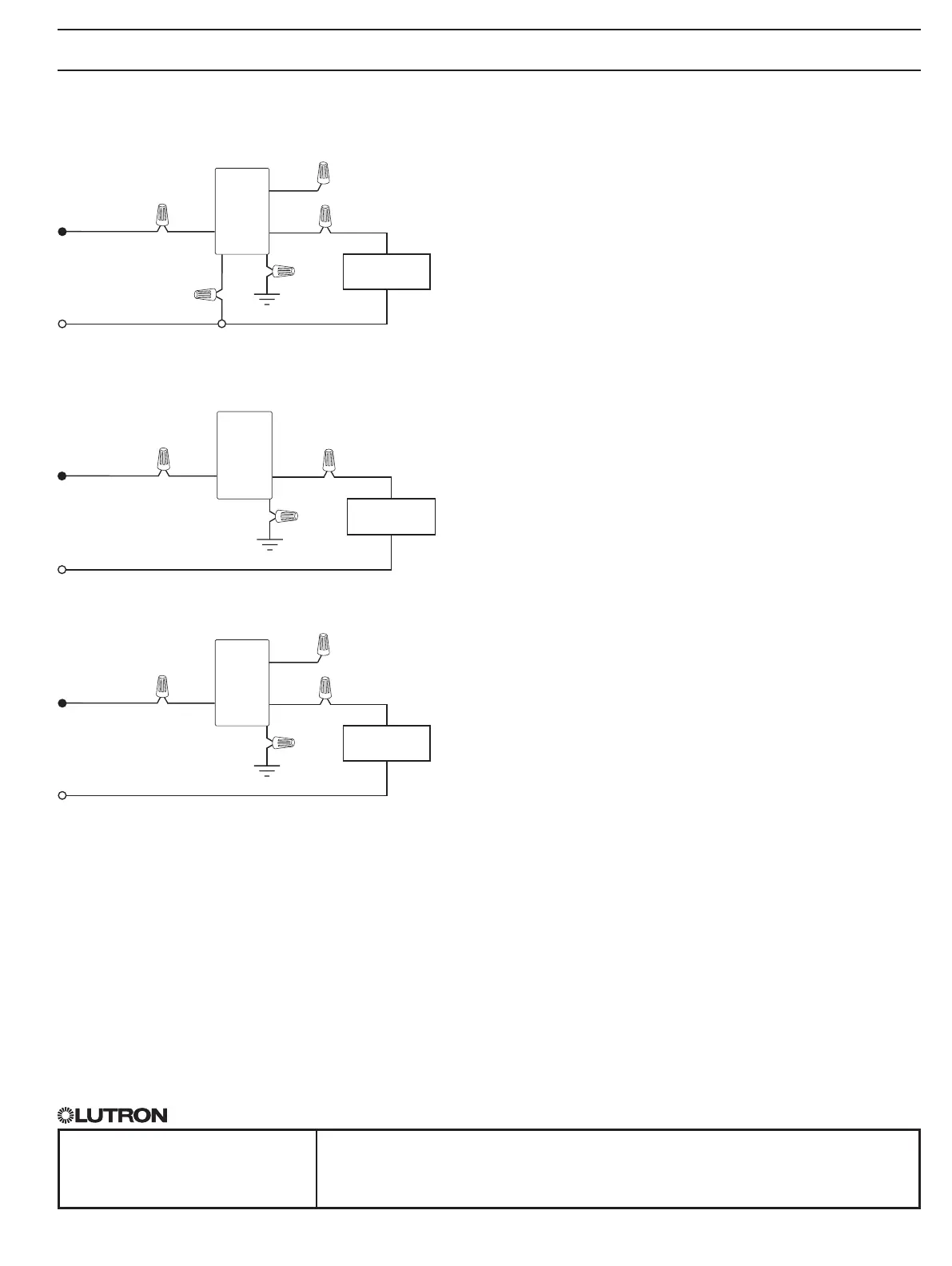

Wiring Diagrams - Dimmers
Single Pole Installation (load is controlled from 1 location)
Line / Hot
120 V~
50 / 60 Hz
Neutral
Black
Red
Green
Ground
Load
Blue
1, 5
White
3,4
PD-10NXD or PD-5NE
1
When using controls without mechanical 3-way switch, cap the blue terminal. Do not connect the blue wire to any other wiring or to ground.
2
Location of Caséta dimmer PRO and mechanical switch may be reversed.
3
For PD-10NXD only, neutral connection optional except for MLV loads, LED drivers, and power modules (PHPM-PA, PHPM-3F, and GRX-TVI).
4
For PD-5NE, neutral is required.
5
Blue wire is only present on the PD-10NXD and DVRL-6L models.
Dimmer
Line / Hot
120 V~
50 / 60 Hz
Neutral
Black
Red
Green
Ground
Load
Blue
1
DVRF-6L
Dimmer
PD-6WCL
Line / Hot
120 V~
50 / 60 Hz
Neutral
Black Black
Green
Ground
Load
Dimmer
20
