6
XP800
Insert always an articulated joint between the chain and the anchor so that the chain itself does not twist.
3.9 Chain insertion
In order to guarantee performances and reliability, it is recommended to use a calibrated chain of the measure corresponding to the
gipsy supplied.
4.1 Electrical cable section
In order to obtain the maximum performances from the anchor windlass and safeguard the electrical system, it is essential that the
anchor windlass be wired with cables of sufcient section as suggested in the table. Note that the two cables coming out of the gearmotor
input require 6 mm crimp lugs. The minimum cable cross-section for the two cables coming from the control box—one green and one
black—which connect using the crimp bullet connectors provided in the windlass package, should be no less than 2.5 mm² (14 AWG).
The gearmotor will include from factory 30cm positive and negative cables for the power supply (Maximum allowed voltage drop 10%
for power and command circuit).
4.2 Control Box
Place it in a dry and well ventilated place near the windlass, the control box needs to be protected against direct water contact. Do not
mount the control box near ammable material since during operation it might get hot.
4.3 Circuit breakers
The circuit breakers recommended by Lofrans have an intervention curve and not a simple plate value. The switches selected for each
model guarantee the correct operation of the system.
4.4 Remote control electric panel board
The remote control electric panel board must be mounted in a comfortable position (such as the deck, the rudder or the cockpit), so that
the operator can see the windlass during the anchoring. Mount and seal the electric panel board so that the terminals remain in a dry
place.

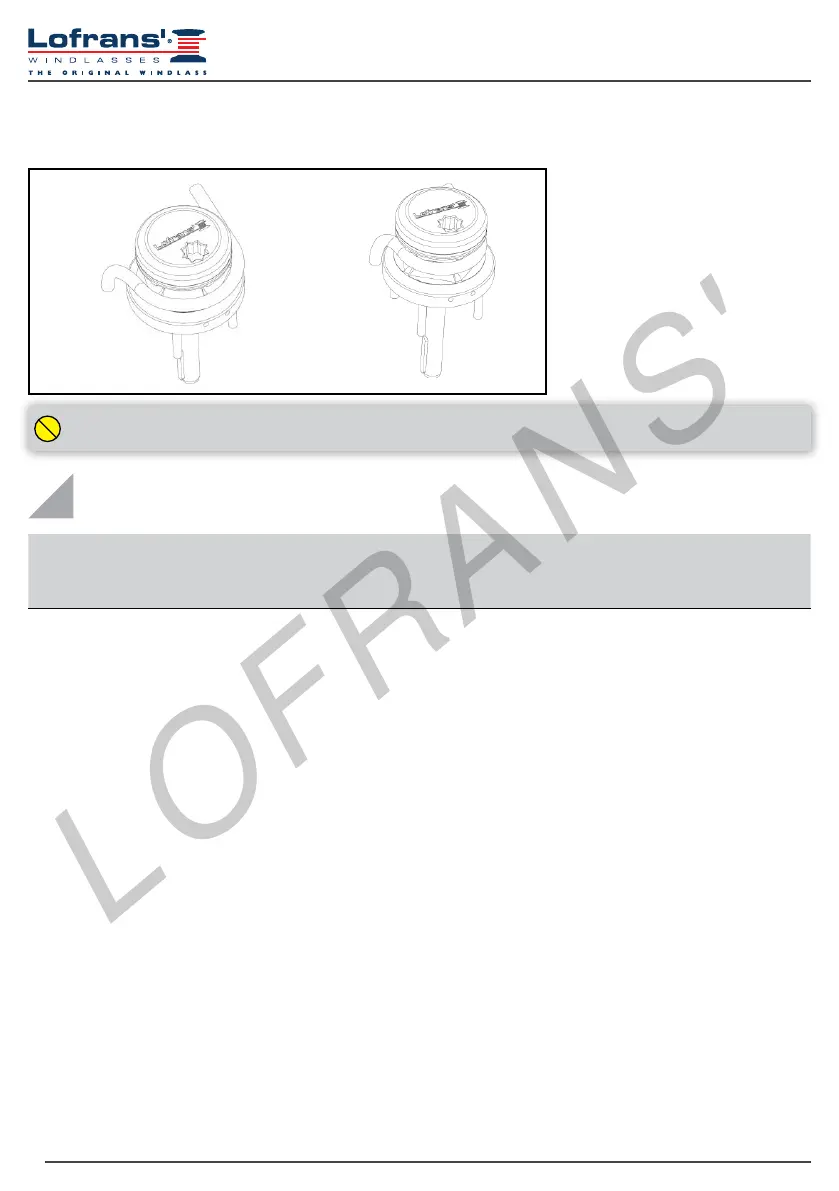

1. Insert the chain into the hole and x to
a safe point.
2. Wrap the chain in the gipsy.
3. Recover all the chain by using the motor,
taking care that the chain enters into the
gipsy well aligned.
4 ELECTRICAL SYSTEM
Model
Motor Power
(W)
Voltage (V) Contactor (A)
Cable sizing according length of cable (positive + negative)
Insulation Temp. Rating ≥105°C
0-10 m 0-33 ft
XP800 500 12 40 10 mm
2
8 AWG
1 2
LOFRANS'
