3.5 Prevention from electrolysis
For aluminium boats, it is essential that the anchor windlass be insulated from the deck through a non-conductive gasket (not supplied).
In addition, it is important that also the anchor and the chain be insulated from the hull, including chain stopper and xing systems.
3.6 Deck thickness
The area of the deck where the windlass is mounted must be solid and resistant so
to be able to support the stresses due to the recovery of the anchor. The standard
series studs allow an admissible range of deck thickness from 10 to 30 mm (for
bigger deck thickness use bigger studs).
3.7 Deck installation
3.8 Under deck installation

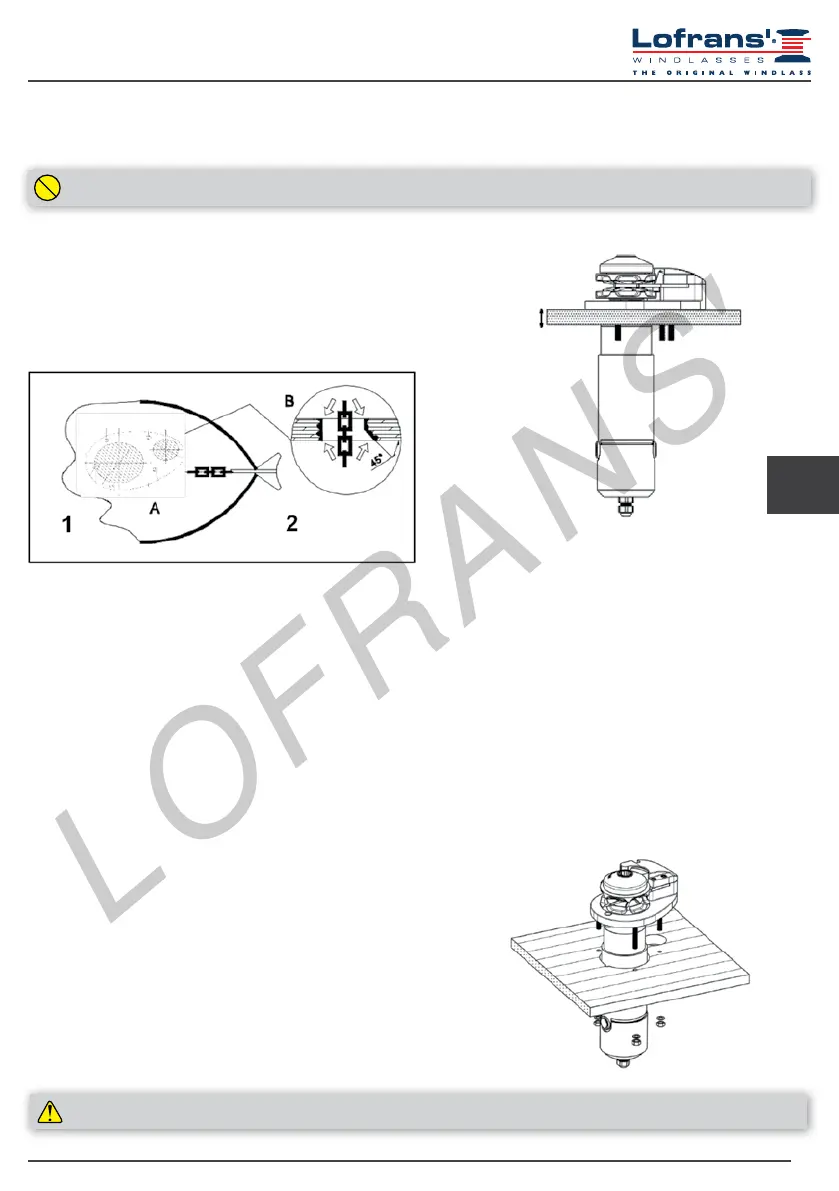

1. Place carefully the drilling template on the deck, by ensuring the correct
alignment with the bow.
2. Let the edges of the holes sharp, while the edge side of the holes of the
chain towards the bow must be smoothed for an angle of 45° degrees.
3. Place carefully the upper part of the anchor windlass on the deck.
4. Drill rst the 12 mm hole, which concerns the chain counting sensor
and then proceed with the rest of the drillings according to the template.
By using a 10 mm ( 3/8 ‘’) diameter drill prepare the four holes for the
deck mounting studs. Use hole saws of 105 mm (4-1/8”) and 50 mm
(2”) diameter to complete the required cutouts.
1. Tighten the washers and related nuts to the studs by fastening them
appropriately
2. Connect the cables coming from the gearmotor to the control box and
the battery by following the indications of the wiring diagram.
Without these precautions, the electrolysis phenomenon will lead to a rapid corrosion of the anchor windlass.
5. When all the holes have been made, remove the drilling
template. To help avoid water absorption by the deck,
apply an appropriate marine sealant to the freshly cut
hole edges.
6. Assemble and fully tighten the four studs into the
windlass base (#1041c).
ATTENTION! Always disconnect electrical power to the anchor windlass before carrying out any action.
Note:
It is recommended to seal the base of the anchor windlass to the deck by means of silicone glue. Do not use a permanent glue to x the
base of the anchor windlass to the deck since this will make difcult the removal in case of maintenance or intervention.
