www.lofrans.com
5

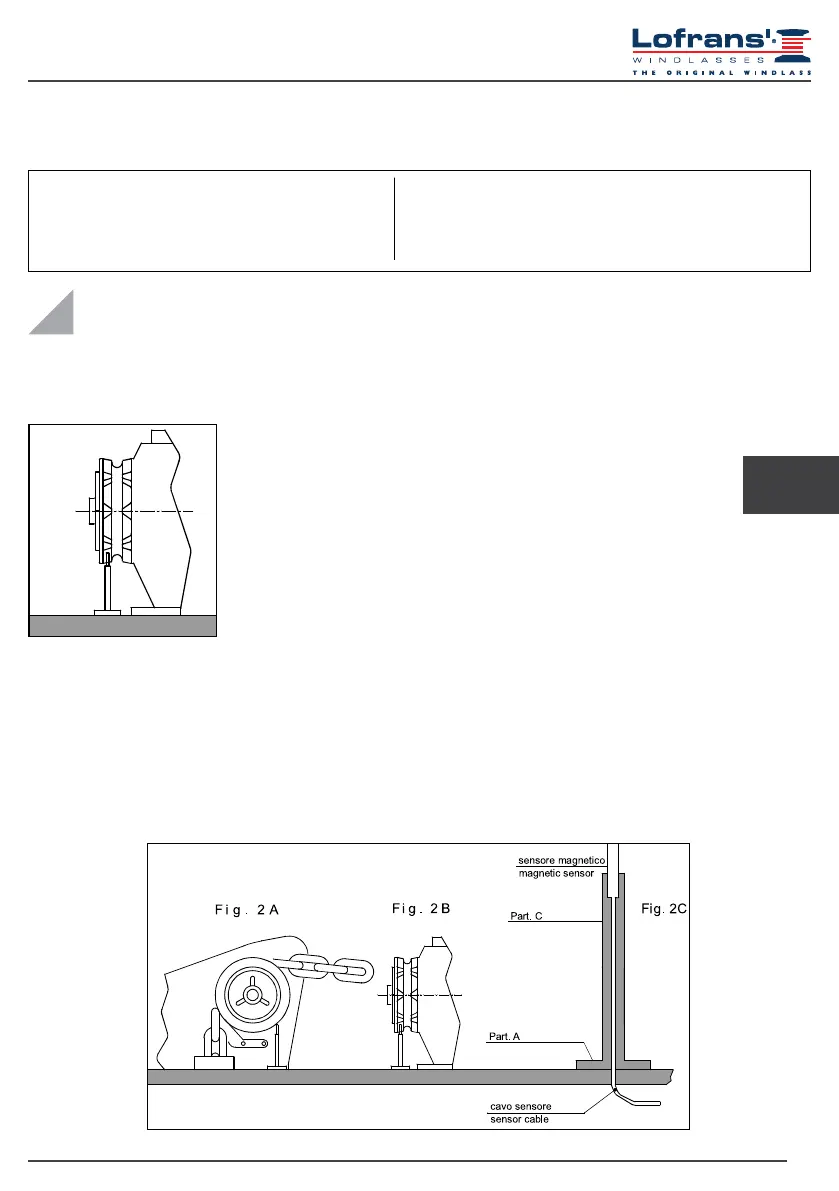

3.2 Installing the magnetic sensor for horizontal shaft anchor windlasses
(see Fig. 2A – 2B – 2C)
Drill a 4 mm (~3/16”) hole in the cover through which to thread the sensor cable. Fasten Part A of the support with the two screws
provided, after having positioned the O-ring in the lower part of the support. Cut Part C to measure using a hacksaw. The sensor must
be positioned at a distance between 2 mm to 10 mm (5/64’’ to 25/64’’) from the magnet. Fit Part C with the magnetic sensor on support A
and x it in place using an adhesive for plastic (two-component epoxy glue) or silicone. Using the same glue, attach the sensor to Part C.
3.1 Installing the magnet on the anchor windlass
On a few models of anchor windlass the sensor and the magnet are already
installed (chain counter setting).
Therefore, the operations described below are not necessary.
1. A hole having a diameter of 7 mm (9/32”) and depth of 12.5 mm (31/64”) must be
drilled on a tooth of the gypsy, in a place outside the chain’s path.
2. In the case of horizontal shaft anchor windlasses (see Fig. 1), drill the hole in the
outer circumference of the gypsy.
3. Also make sure that the protruding part of the magnet will not collide with the base
or sensor during rotation of the gypsy. Insert the metal part of the magnet in the
hole, allowing the protected part to protrude by about 2 mm. Fix it in place using an
adhesive for metals (two component epoxy glue) or silicone. The glue used must be
able to withstand a marine environment.
UK
Recommended accessories
Use exclusively original Lofrans accessories and spare parts, designed and manufactured to ensure performances, duration and for
keeping valid the warranty. For information on available spare parts, contact your local reseller or visit website www.lofrans.com
3 INSTALLATION
Fig. 1
2.3 Packaging contents
The Hand Held Control Chain Counter packaging includes:
1 Hand held chain counter-THETIS 5003
1 Connector 6-pole (female plug)
1 Magnetic sensor
1 Magnet for the windlass
1 Horizontal shaft anchor windlass sensor support
1 Cradle with 2 screws
1 Installation and user’s manual
