6
SX7
ATTENTION! Always disconnect all electrical power to the anchor windlass before carrying out any operation.
Insert always an articulated joint between the chain and the anchor so that the chain itself does not turn into as spiral.

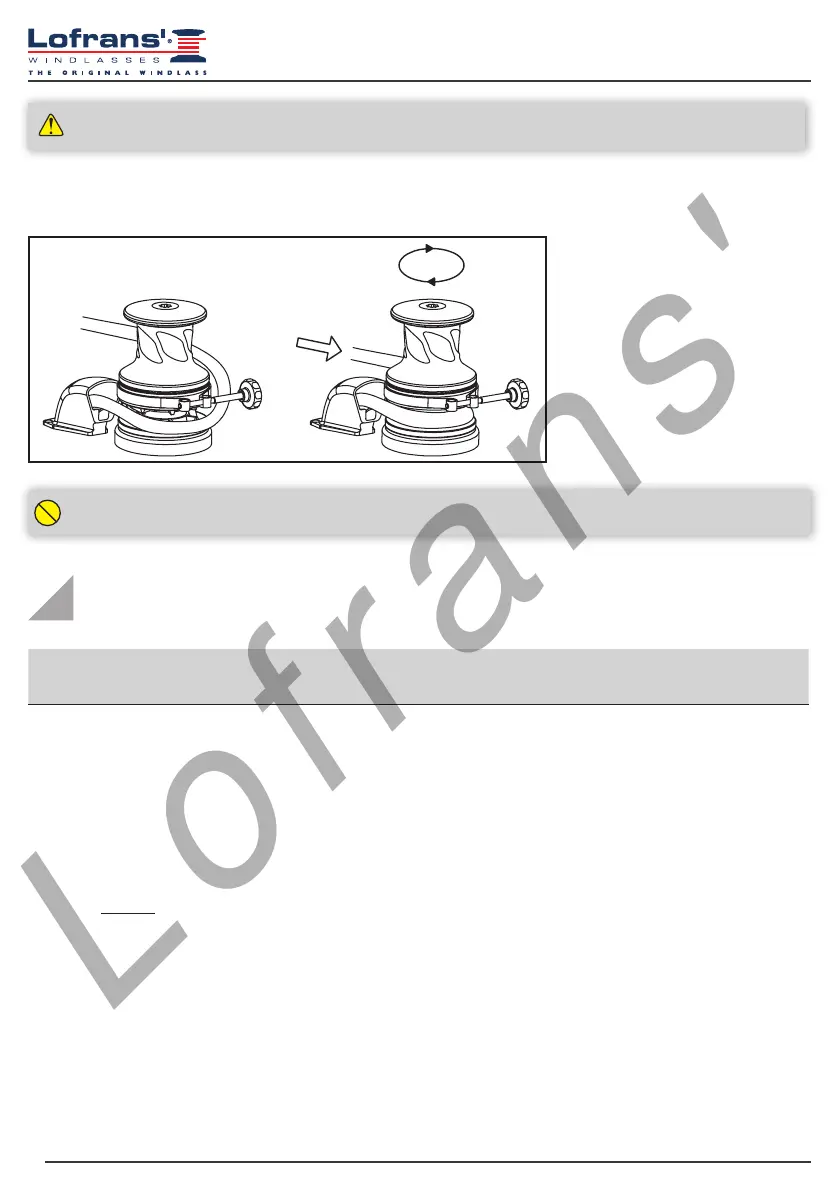

3.9 Chain insertion
In order to guarantee performances and reliability, it is recommended to use a calibrated chain of the measure corresponding to the
gipsy supplied.
4.1 Electrical cable section
In order to obtain the maximum performances from the anchor windlass and safeguard the electrical system, it is essential that the
anchor windlass be wired with cables of sufcient section as suggested in the table. (Maximum allowed voltage drop 10%)
* Calculate accordingly for maximum allowed voltage drop of 10%.
4.2 Contractor (Control Box)
Place it in a dry place near the windlass in which the control box unit will not have direct water contact. The control box must be rmly
supported in possition
4.3 Circuit breakers
The circuit breakers recommended by Lofrans’ have an intervention curve and not a simple plate value. The switches selected for each
model guarantee the correct operation of the system and the validity of the warranty.
4.4 Remote control electric panel board
The remote control electric panel board must be mounted in a comfortable position (such as the deck, the rudder or the cockpit), so that
the operator can see the windlasse during the manoeuvre. Mount and seal the electric panel board so that the terminals remain in a dry
place.
UP
1
2
3
1. Insert the chain into the hole and x
to a safe point.
2. Wrap the chain in the gipsy.
3. Recover all the chain by using the
motor, taking care that the chain enters
into the gipsy well aligned.
4 ELECTRICAL SYSTEM
Model
Motor Power
(W)
Voltage (V)
Contactor
(A)
Cable sizing according length of cable (positive + negative)
15-25 m 50-75 ft > 25 m > 75 ft
SX7 3500 24 200 95 mm
2
3/0 * *
