2.6 Testing the installation
1. All heating foils must be connected during testing!
2. Measure the total resistance value of the heating foils and record this value on the check/control
card in this manual. Hang this check control card in the meter cupboard).
3. Calculate the actual power (wattage) with the following formula: power (230 V X 230 V) = 52,900
divided by the measured resistance value. Record this value on the check/control card.
4. Measure the total length of the heating foil and calculate the total
installed capacity with the formula: total installed power = total length x installed power of 150 W/m.
Record this value on the check/control card.
5. Make a sketch on the centre page and, preferably, take a photo of the installation.
2.7 Covering the heating foil
1. Cover the heating foil with vapour-resistant PE foil with a minimum thickness of 0.1 mm.
2. Place the floorboards (wooden floors, laminate, parquet or click PVC) according to the
manufacturer's instructions. Do not wear heavy or dirty footwear to prevent damage to the foil.
2.8 Connecting and installing the thermostat
For use and programming of the thermostat, please refer to the instructions enclosed with the
thermostat. Connection must be carried out by a recognised installer in accordance with the relevant
regulations. Always switch off the electricity in the meter cupboard before installing or removing the
thermostat. The MRC thermostat can be mounted in a single flush-mounted box 35 mm deep
(minimum depth), according to standard DIN formats. Check if the power is off.
Connecting the thermostat
DO • Mount the thermostat at eye level.
• Read the instructions fully so you get the best from our product.
DON’T • Do not install near to a direct heat source as this will affect functionality.
• Do not push hard on the LCD screen as this may cause irreparable damage.

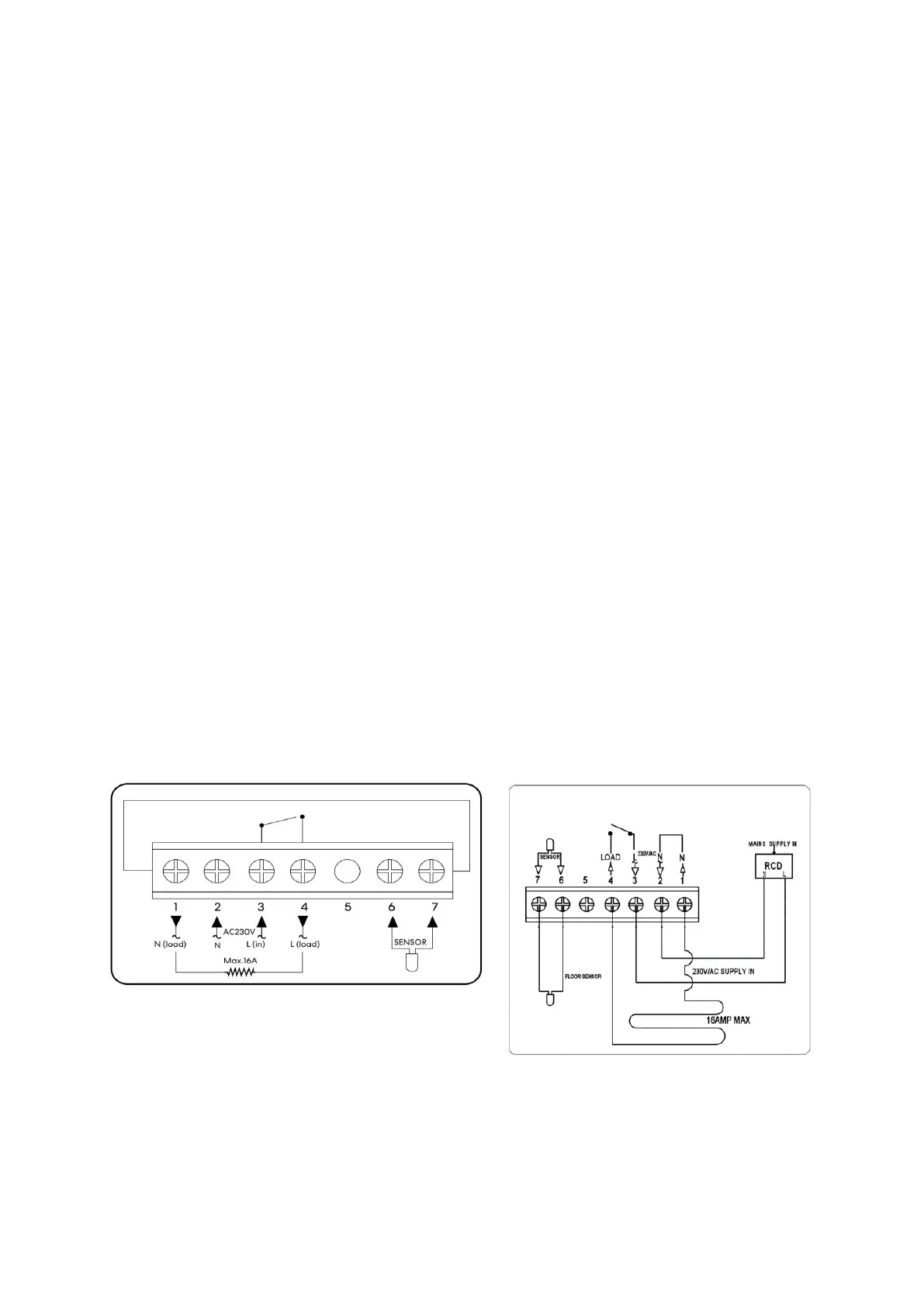

HEATING FILM (N) Heating cable connection wire
(terminal 1)
N Power Supply (Neutral) (terminal 2)
L Power Supply (Live) (terminal 3)
HEATING (L) Heating cable connecting wire (terminal 4)
FLOOR SENSOR Floor sensor connection (terminal 6 / 7)
