B-9
OPERATION (INSTRUCTOR MODE)REALWELD
®
TRAINER
6. The calibrate jig window has directions that show where to place
the LED markers. Two of the LED markers need to be placed over
the 2 pin locations on the platform and the 3rd marker is magnetic
and should be placed in between and above the other two markers
(towards the back of the jig platform but no more than halfway
back). See Figures B.37.
7. With the LED markers in place, select the ‘Start Calibration’ icon
on the screen. The LED markers on the screen will start to blink
while various numbers appear above them. During this time, the
equipment is determining the position of the jig platform. See
Figure B.38.
8. In some cases, there might be an error with the calibration due to
the markers not being within the field of view or if there is a bright
light in the area. Also, in some instances the ambient lighting
can cause an error stating ‘too many markers recognized’. If this
happens, select the ‘OK’ icon, verify that the markers are placed
correctly and that there aren’t any sources of bright light in the
area and repeat the calibration steps. See Figure B.39.
9. When the calibration is complete, the calibrate jig window will
automatically close. The jig calibration menu will still be displayed
and the numerical values for pins 1-3 will be updated. The date
and time of the calibration will also be updated and displayed. See
Figure B.40.
10. Repeat this calibration for each of the three jig platform positions,
by adjusting the jig platform to the corresponding position and
selecting the position from the menu on the left side of the
screen.
11. When calibration is complete, remove the LED markers from the
jig platform and store them properly.
12. Close the camera lenses.

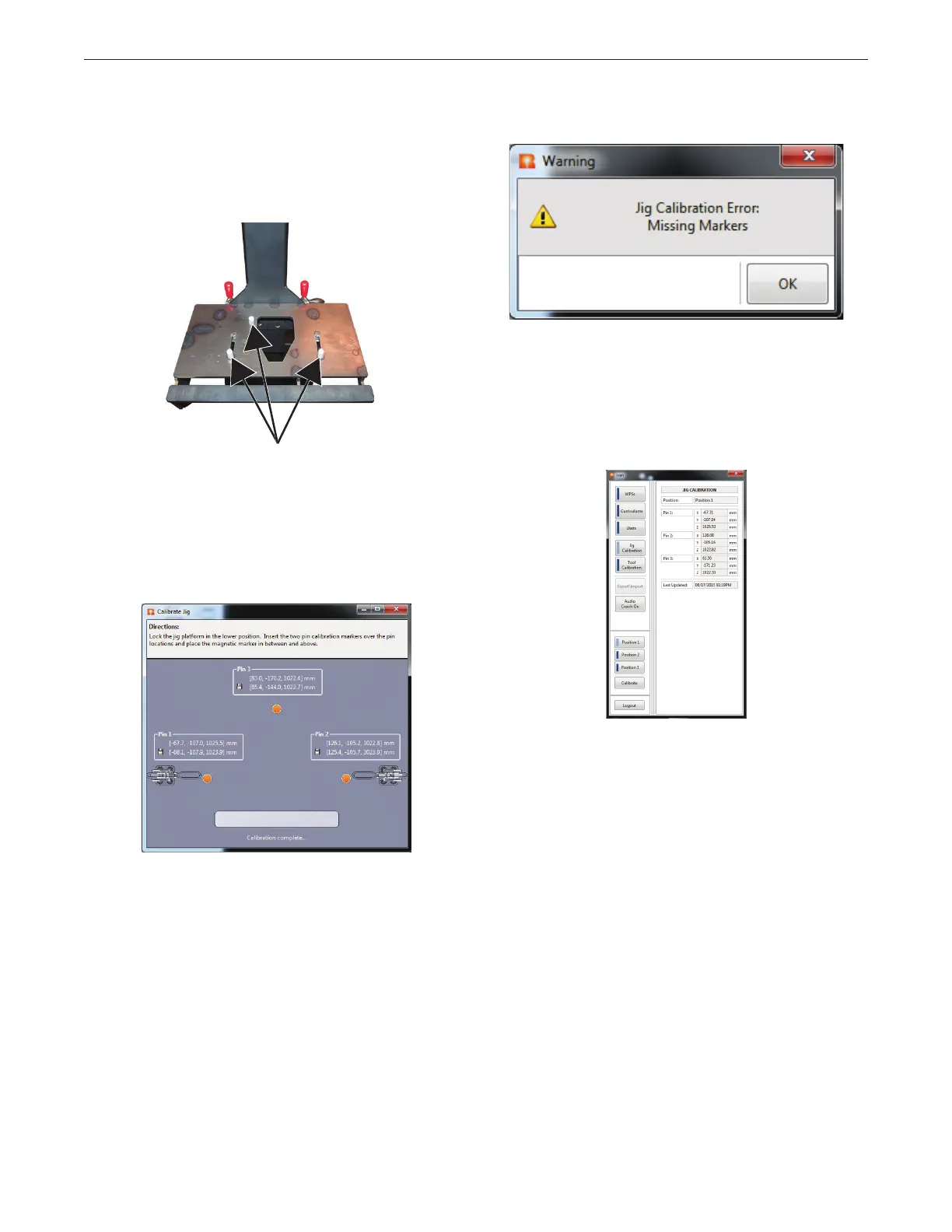

CALIBRATION MARKERS
Figure B.38 – Start calibration
Figure B.37 – Jig platform calibration markers
Figure B.39 – Calibration error
Figure B.40 – Calibration complete
