B-2
OPERATION (INSTRUCTOR MODE)REALWELD
®
TRAINER
LOADING REALWELD TRAINER SOFTWARE
1. Using the touchscreen monitor, double tap (using your finger only)
the RealWeld Trainer icon on the desktop. The software may take
15-30 seconds to load and will display a RealWeld Trainer splash
screen during this process. See Figure B.3.
2. If the RealWeld System Admin application is running, there will
be a warning message and the RealWeld Trainer application will
shut down. To run the RealWeld Trainer application in this case,
shutdown the RealWeld System Admin application.
3. The login window will appear once the software has been opened.
See Figure B.4.
INSTRUCTOR MODE
To access the features of the instructor mode, the instructor must
login with the appropriate username and password.
Default instructor login credentials:
Username: ivan
Password: i
Default student login credentials:
Username: tom
Password: t
1. Using the touchscreen monitor, select the ‘Username’ text box and
enter the assigned username with the on-screen keyboard. Select
the ‘Enter’ icon to apply the username. See Figure B.5.
2. Using the touchscreen monitor, select the ‘Password’ text box and
enter the assigned password with the on-screen keyboard. Single
tap the ‘Enter’ icon once the password has been entered, this will
remove the on-screen keyboard from the screen. See Figure B.6.
3. Using the touchscreen monitor, select the ‘OK’ icon on the login
window. Once selected, the user will be logged in and a set of
menu options, specifically for an instructor, will be displayed on
the left side of the screen. See Figure B.7.

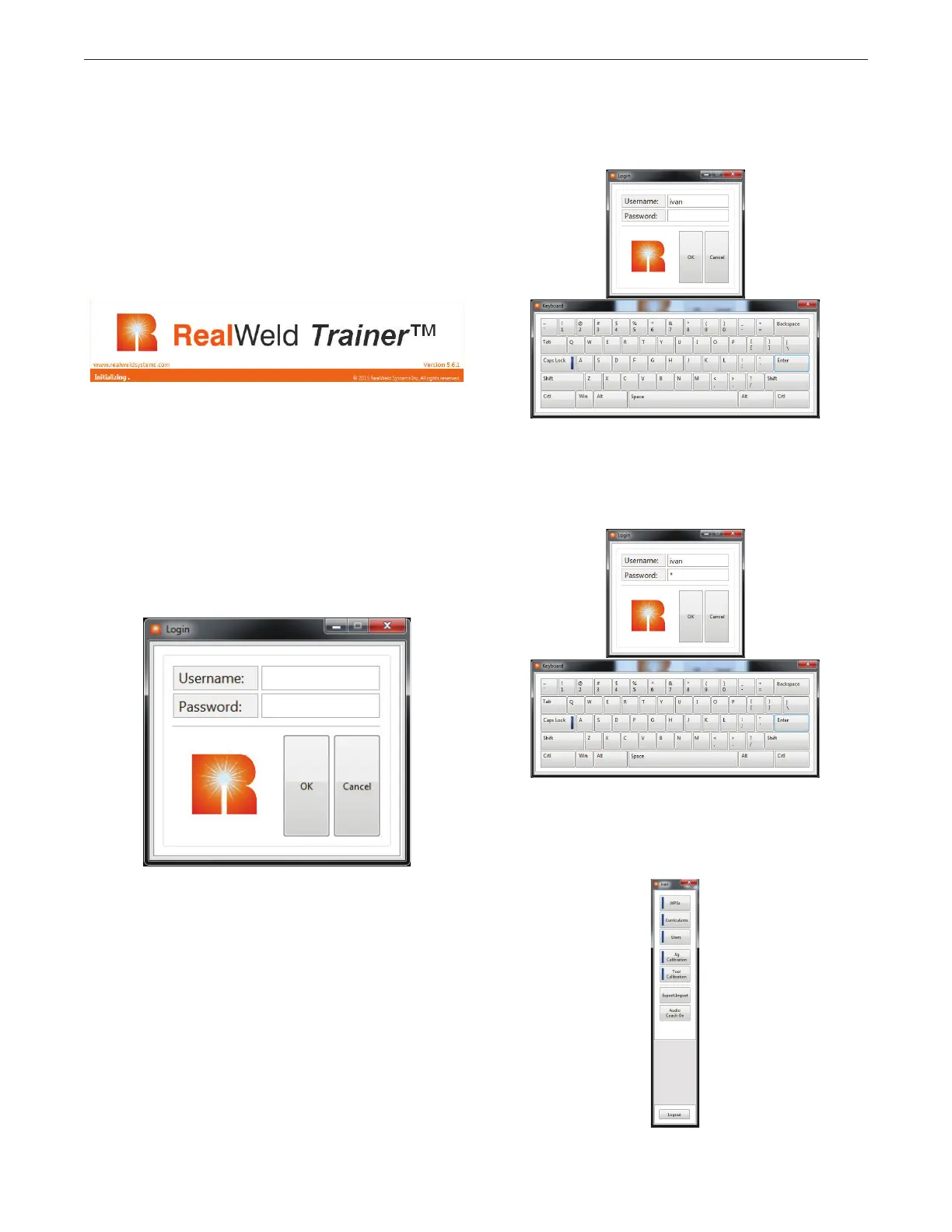

Figure B.3 – RealWeld trainer software
Figure B.4 – Login
Figure B.5 – Username
Figure B.6 – Password
Figure B.7 – Instructor menu
