A-22

INSTALLATIONFUME EXTRACTION ARMS

3. Position the mounting assembly on a wall mounting bracket

(See Figure A.33) so that the cable hole is on the wall side.

Use the six 3” bolts and nuts to secure the mounting

assembly to the wall mounting bracket. Rotate the hinge rod

so the stop pin is in the front.

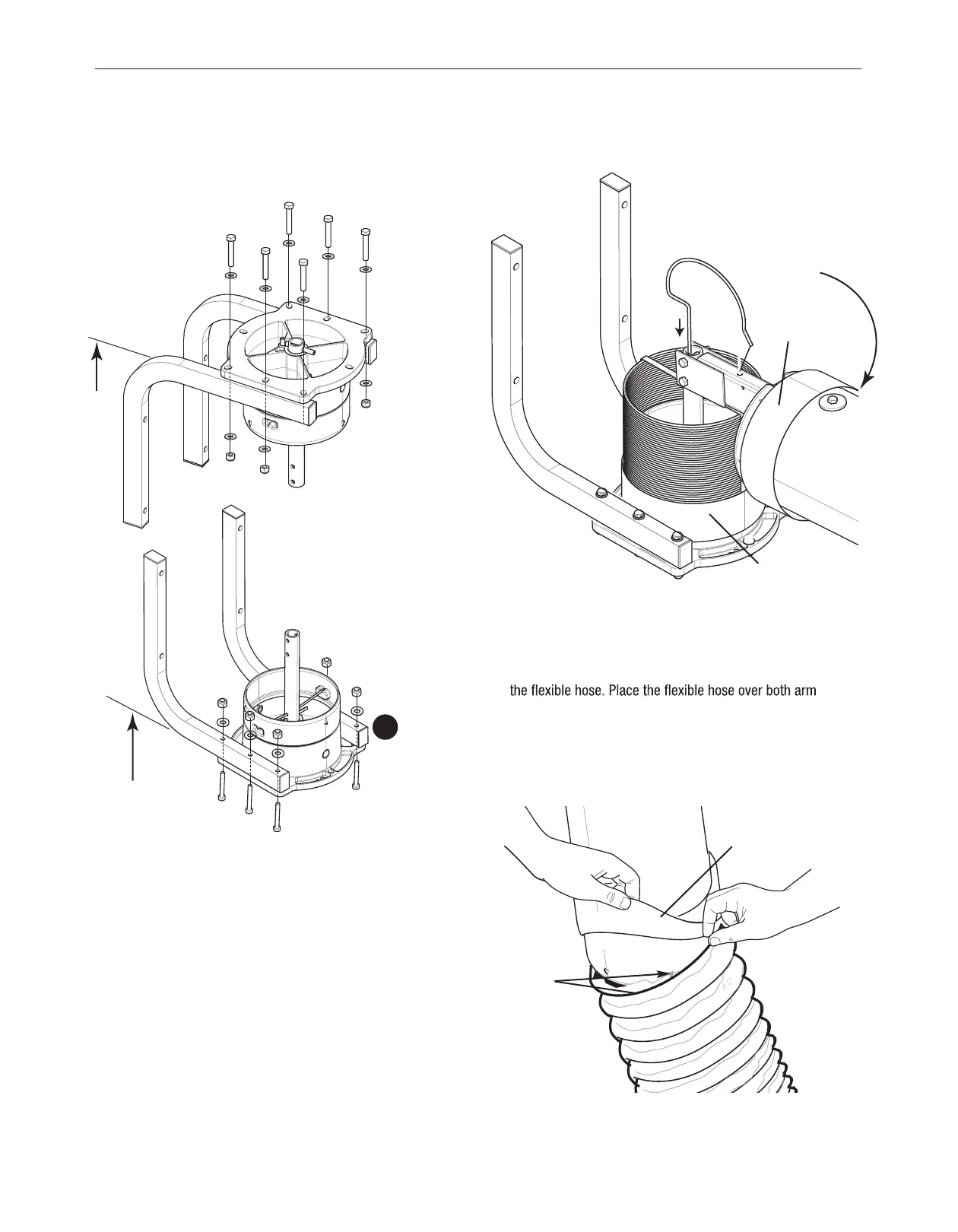

FIGURE A.33

Position one 8" arm seal band and a flexible hose on the red

plastic ring of the mounting assembly. Put another arm seal

band on the top of the arm. Mount the arm body (Figure A.34)

to the mounting assembly using (2) 1.75” bolts and nuts.

5. Mount the spring bracket and position the arm seal band

and the flexible hose around the connection flange. (See

Figure A.34).

FIGURE A.34

6. Remove the plastic and tape packaging from the arm

sections. Adjust the friction of the arm and hood movement

as described in the maintenance section of this manual.

When set, seal all hose connections with the arm seal bands.

7. Fold back 2/3 of both arm seal bands. Remove the wrap of

sections. To secure the hose, at least one metal rings of the

hose should be applied over the ridges at each arm section.

Fold back the arm seal bands and place them over the hose.

The arm seal band should cover the arm section 0.5-1 in. See

Figure A.35

FIGURE A.35

This option puts

fan below brackets

(arm tight to ceiling)

This option puts

fan on top

Place at least

one metal band

of flexible hose

over ridge

arm band seal

Stretch arm band seal

over flexible tube

Flange hangs from

from underside of

brackets with shaft

pointing up.

Bolt should be on top of

the arm when installed

Approx. 98

inches to

the floor

Approx. 77

inches to

the floor
