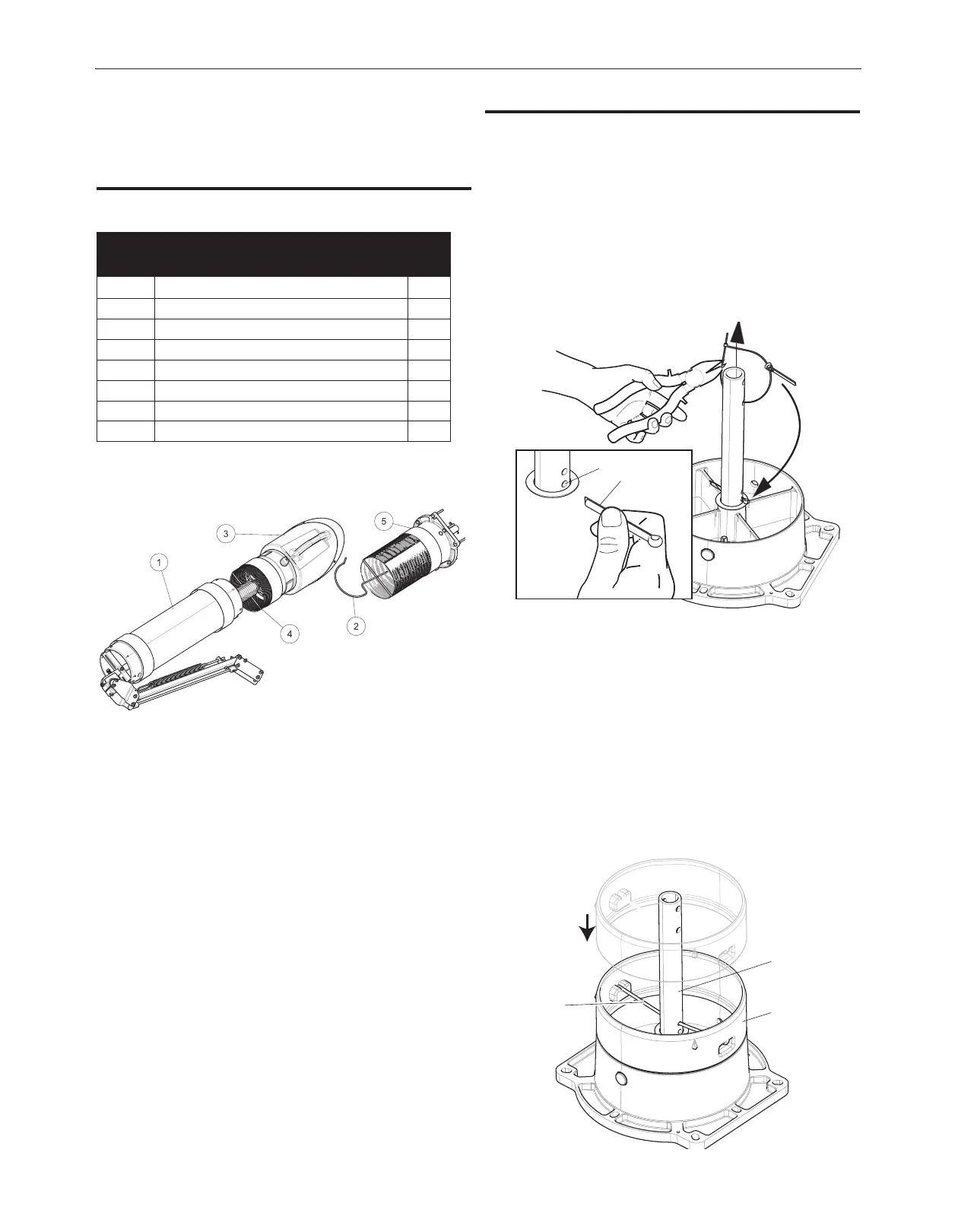

A-19

INSTALLATIONFUME EXTRACTION ARMS

WALL MOUNTING

FLEXIBLE 7 FT. ARM

Components

*NOT SHOWN

See Parts Page for Hardware Bag Contents

For wall mounting applications:

Install wall mounting brackets as detailed in the section titled

“INSTALLATION OF WALL MOUNTING BRACKETS” for Operator

Manual included with the Prism 2400 Stationary Fan.

MOUNTING THE LFA 2.0 EXTRACTION ARM ON THE

WALL MOUNTING BRACKET

See Figure A.26 for steps 1-4

1. Cut through the upper cable tie to release the cotter pin

(Item A).

2. Lift the post of the base swivel mount by the lower cable tie.

3. Put the cotter pin through the lowest hole in the post (Item B)

and bend it around.

4. Cut the lower cable tie and let down the post.

FIGURE A.26

2. The mounting assembly of the arm comes in three pieces:

(See to Figure A.27)

• Metal rotating rod (Item A),

• red plastic ring (Item B),

• and metal spring collar pivot rod (Item C).

Mount the red plastic ring to the metal mounting assembly by

fitting the metal spring collarpivot rod through the hole in the

rotating rod, and snapping it into place on the U-shaped

indents on the red plastic ring. The lip of the ring should fit

securely against the top edge of the mounting assembly yet

rotate with the rod.

FIGURE A.27

K1655-12 – WALL MOUNT EXTRACTION

ARM

ITEM DESCRIPTION QTY

1 ARM BODY 1

2 HOSE SUPPORT 1

3 HOOD ASSEMBLY 1

4 FLEXIBLE HOSES 2

5 MOUNTING ASSEMBLY 1

6* INSTRUCTION MANUAL 1

7* LOOSE HARDWARE BAG 1
