A-18
INSTALLATIONFUME EXTRACTION ARMS

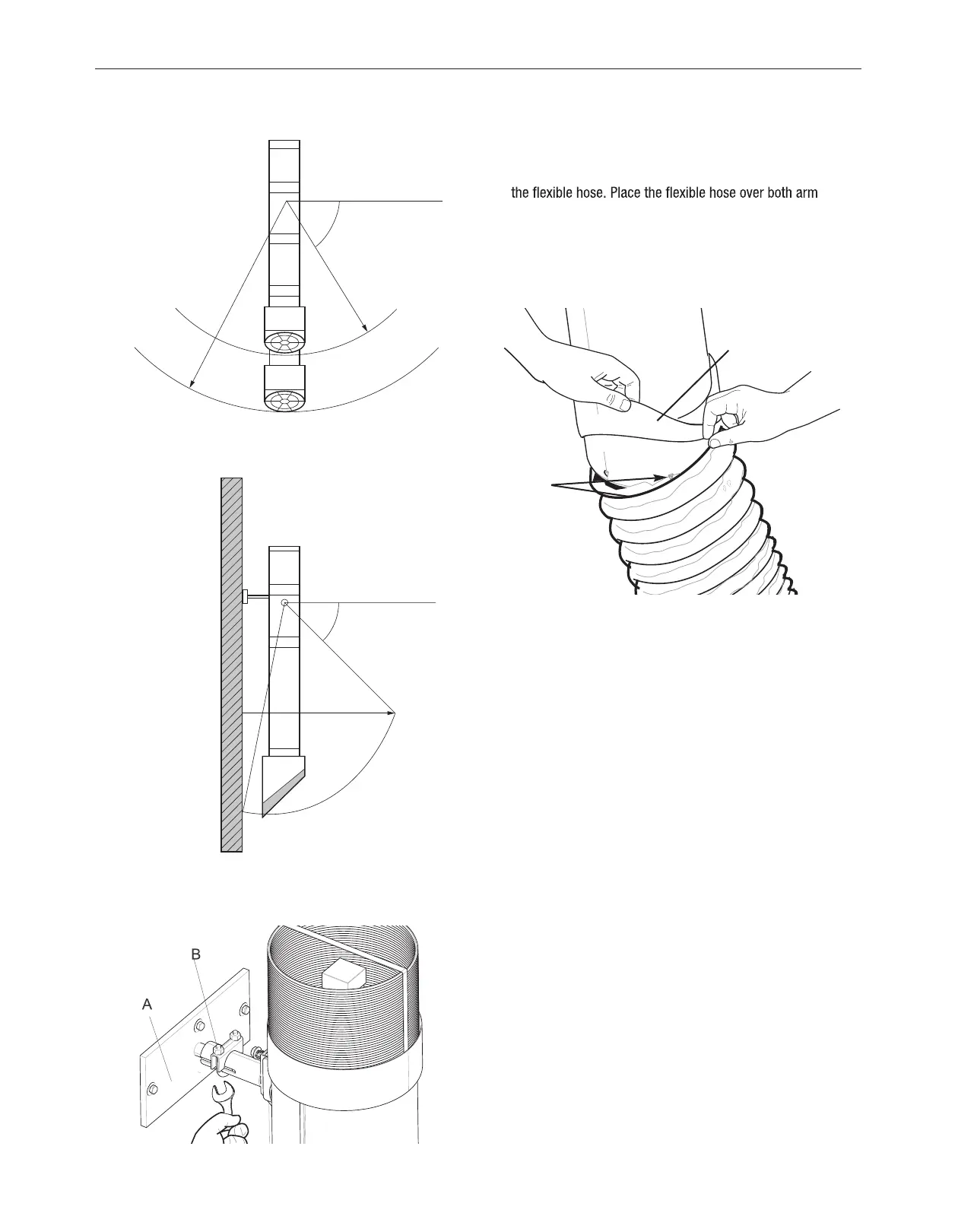

FIGURE A.23
3. Slide the arm friction tube onto mounting bracket. Using a ½”
wrench, tighten the U-clamp (B)
FIGURE A.24
4. Remove the plastic and tape packaging from the arm
sections. Adjust the friction of the arm and hood movement
as described in the maintenance section of this manual.
When set, seal all hose connections with the arm seal bands.
5. Fold back 2/3 of both arm seal bands. Remove the wrap of
sections. To secure the hose, at least one metal rings of the
hose should be applied over the ridges at each arm section.
Fold back the arm seal bands and place them over the hose.
The arm seal band should cover the arm section 0.5-1 in. See
Figure A.25
FIGURE A.25
45°
45°
40"
(1000 mm)
40"
(1000 mm)
40"
(1000 mm)
55"
(1400 mm)
55"
(1400 mm)
Place at least
one metal band
of flexible hose
over ridge
Stretch arm band seal
over flexible tube
