A-8

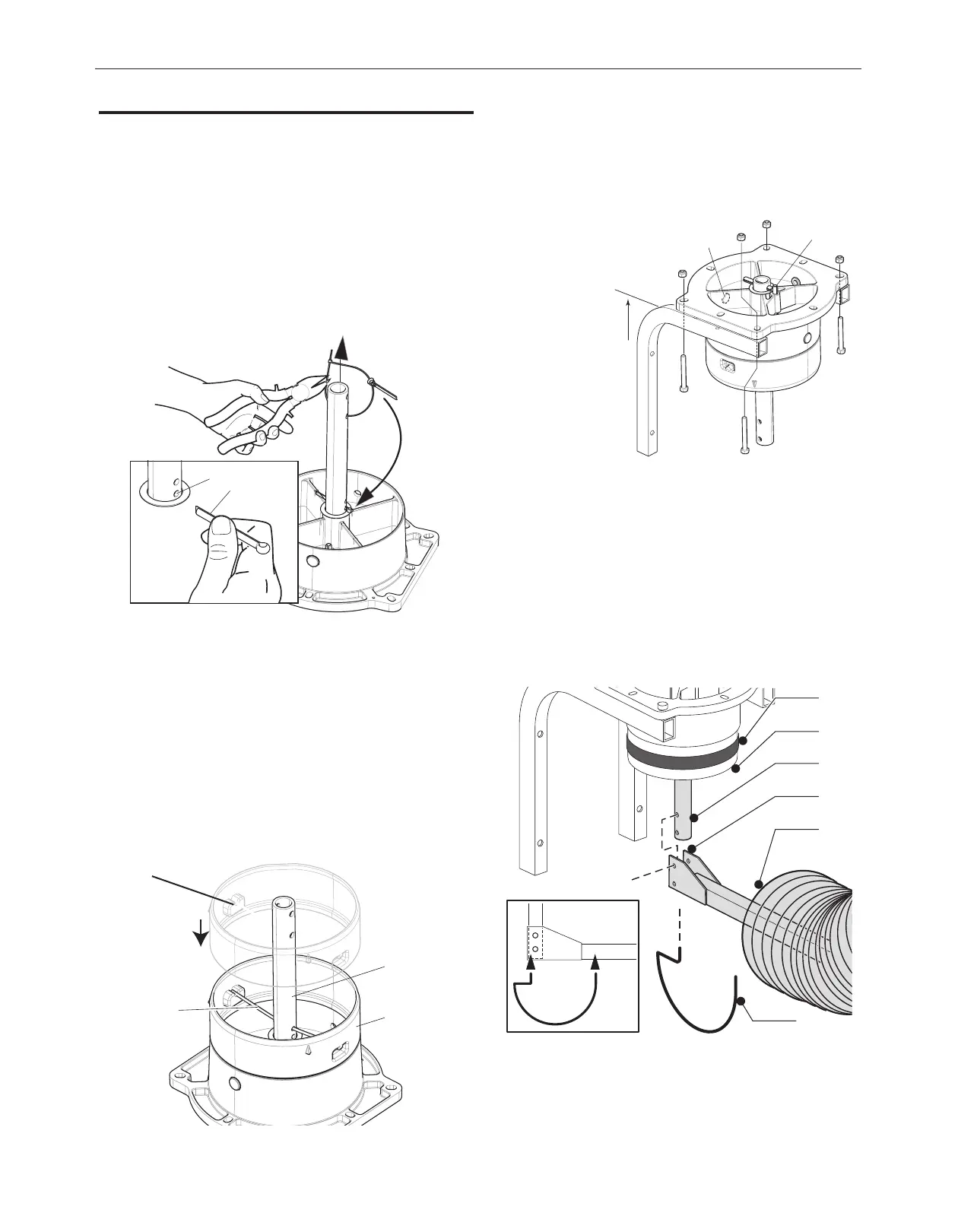

INSTALLATIONFUME EXTRACTION ARMS

MOUNTING THE FLEXIBLE 10 FT. OR 13 FT. ARM TO

THE WALL-MOUNTING BRACKET

See Figure A.1 for steps 1-4

1. Cut through the upper cable tie to release the cotter pin

(Item A).

2. Lift the post of the base swivel mount by the lower cable tie.

3. Put the cotter pin through the lowest hole in the post (Item B)

and bend it around.

4. Cut the lower cable tie and let down the post.

FIGURE A.1

• Metal rotating rod (Item A),

• red plastic ring (Item B),

• and metal spring collar pivot rod (Item C).

Mount the red plastic ring to the metal mounting assembly

by fitting the metal spring collarpivot rod through the hole

in the rotating rod, and snapping it into place o the U-

shaped indents on the red plastic ring. The lip of the ring

should fit securely against the top edge of the mounting

assembly yet rotate with the rod.

FIGURE A.2

Position the mounting assembly on a wall mounting bracket (See

Figure A.3) so that the cable hole (Figure A.3, Item A) is on the

wall side. Use the four 2.5” bolts and nuts to secure the

mounting assembly to the wall mounting bracket. Rotate the

hinge rod (Fig. 3, Item D) so the stop pin (Figure A.3, Item B is in

the front.

FIGURE A.3

FIGURE A.4

U-shaped

indent

The mounting assemly of the arm comes in three pieces:

(See to Figure A.2)

Mount the hanging adapter (Fig. A.4, Item D) to the hinge rod

using (2) 1.75” bolts with washers and nuts. Mount the spring

bracket (Fig. 5, Item F) into the two holes as shown. Position

one 8" rubber band (Fig. 5, Item A) and the flexible hose

supplied with the mounting bracket (Fig. 5, Item E) on the red

plastic ring of the rotating hinge.

STANDARD MOUNTING HEIGHT:

100" (8.3') to floor

TYPICAL MOUNTING HEIGHT

RANGE

10ft ARM: 78" - 120" (6.5' - 10')

13ft ARM: 98" - 144" (8.2' - 12')

REFERENCE FLEXIBLE ARM REACH GRAPH TO

DETERMINE BEST HEIGHT FOR YOUR APPLICATION
