A-7

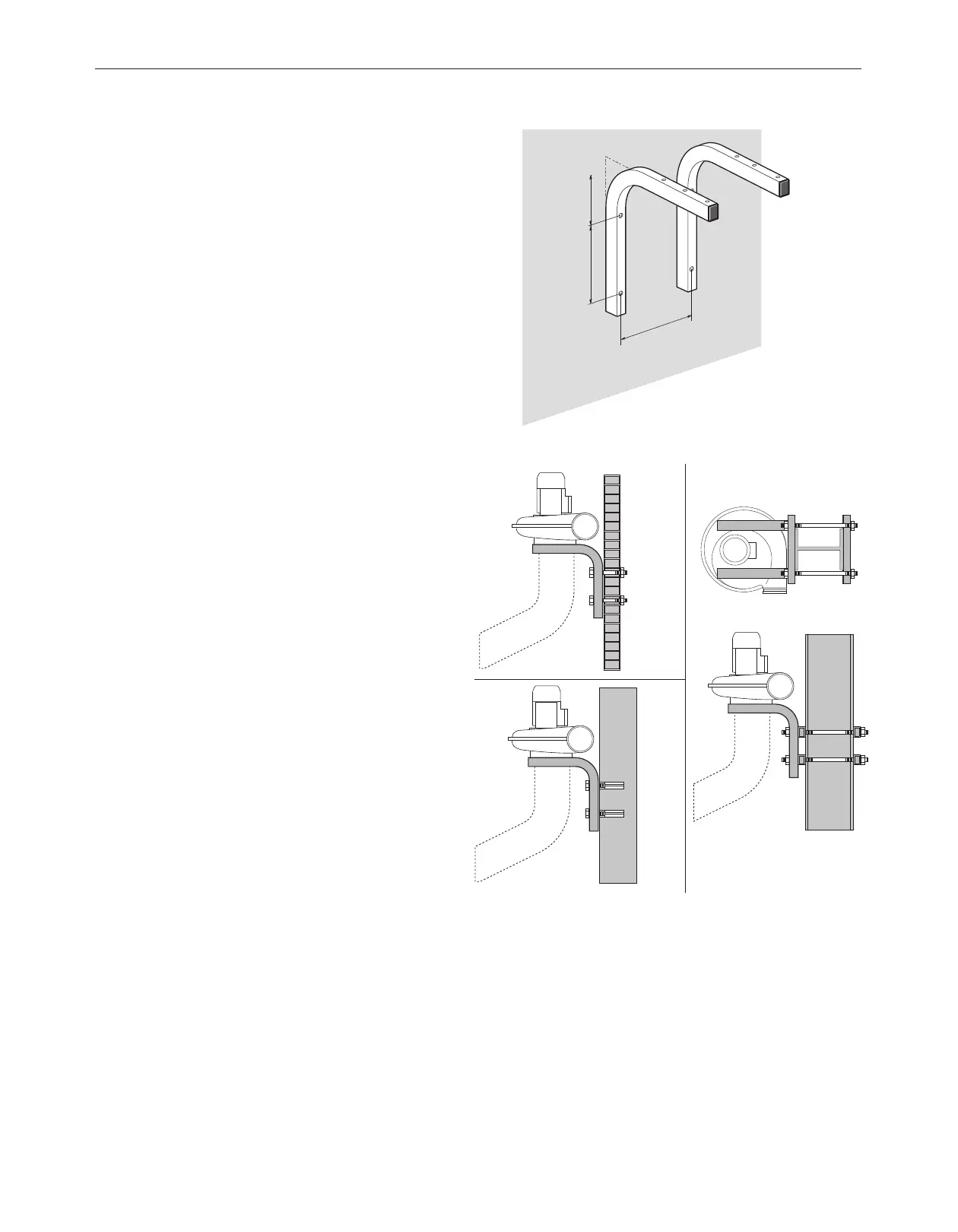

INSTALLATIONFUME EXTRACTION ARMS
A. Mounting on a thin wall (recommended minimum wall thickness
5 in (100 mm), using four threaded rods, 3/8 in. (M10).
B. Mounting on a thick wall using four cotter bolts 3/8 in. (M10
C. Mounting on a steel I-beam using four threaded rods 3/8 in. (M1
and two box-profile stabilizers (1x1x0.1 in., 30x30x3mm).
FIGURE 1
9" (230 mm)
8.3"
(210 mm)
6.3" (160 mm)
FIGURE 2
A
C
B
3/8"
3/8"
3/8"
3/8"
For wall mounting applications:
Install wall mounting brackets as detailed in the section titled
“INSTALLATION OF WALL MOUNTING BRACKETS” for Operator
Manual included with the Prism 2400 Stationary Fan.
Standard mounting height is approximately 100" from the floor to the
top of the wall mounting bracket. Typical mounting height range is
78" - 120" for 10FT arms and 98" - 144" for 13FT arms. Reference
flexible arm reach graph to determine best height for your application.
See Figure 1 for drilling dimensions.
See Figure 2 for recommended mounting methods for installation on
various wall types.
