Installation Section 2
RESTRAINT REQUIREMENT OVENS ON CASTERS
• The installation shall be made with a gas connector that
complies with the local codes for Connectors for Movable
Gas Appliances, ANSI Z21.69 • CSA 6.16 latest version,
and a quick disconnect device that complies with the
local codes for Quick Disconnect Devices for Use with Gas
Fuel, ANSI Z21.41 • CSA 6.9 latest version.
• The installation of the restraint must limit the movement
of the oven(s) without depending on the connector, the
quick disconnect device or its associated piping to limit
the oven movement.
• If the restraint must be disconnected during maintenance
or cleaning, it must be reconnected after the oven has
been returned to its originally installed position.
Procedure
1. Secure anchor wall/floor mount bracket “D” to wall stud
“C” or floor “E”.

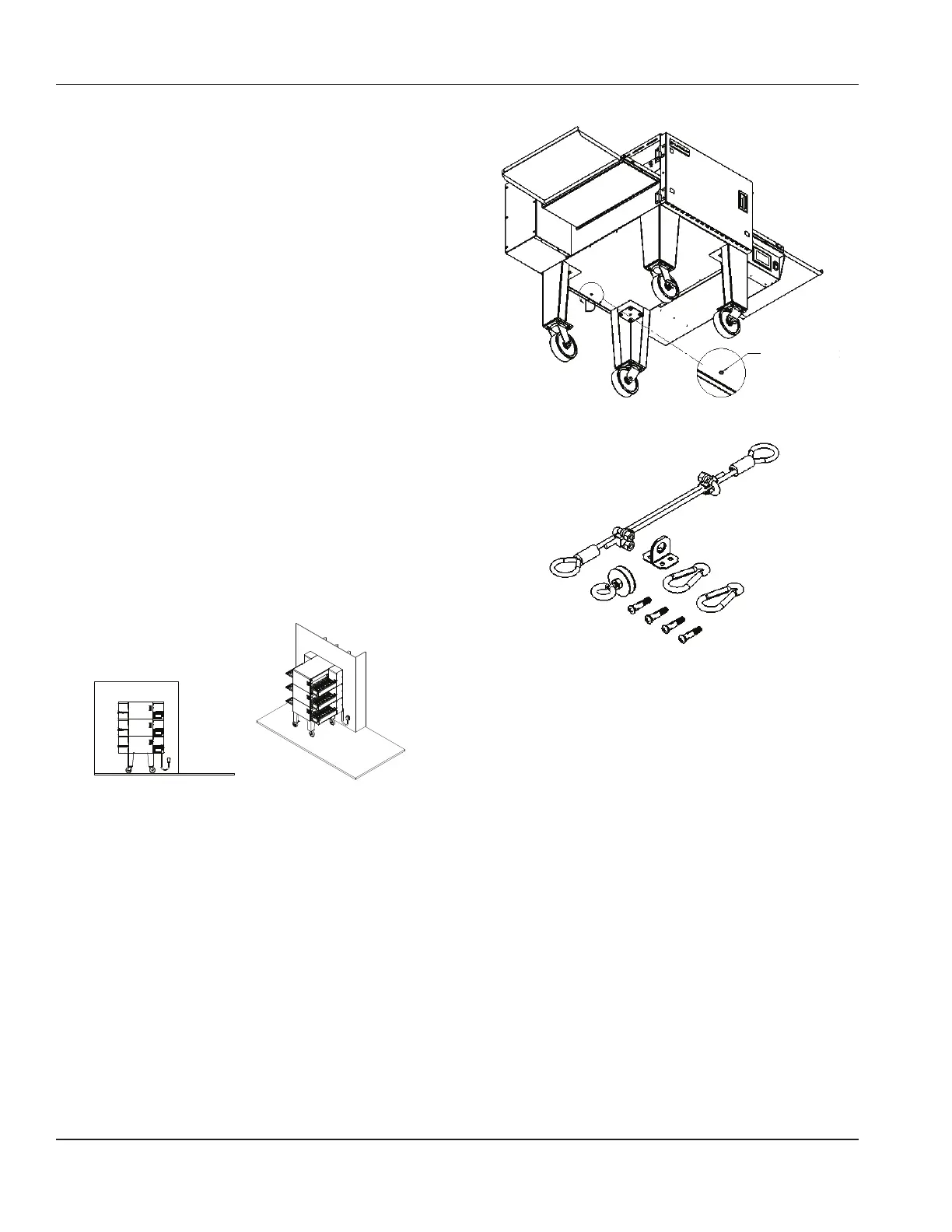

2. Secure eye bolt “B” into threaded hole located in the
oven bottom (See drawing below).
3. Attach restraint cable “A” with supplied carabiners to
both the eye bolt “B” and wall/floor bracket “D”.
4. Adjust/shorten restraint cable to limit oven movement.
NOTE: Installation point is the same for single, double, or
triple-stacked ovens.
Wall
E
Floor
C
Stud
Back of Oven
D
B
A
Restraining
Hole
A
B
D
