(3) Kitchen cabinet * (D) Distance to the back of
the appliance *
(4) Wall * (E) Distance to the side of
the appliance *
(A) Appliance depth *
You can place the appliance directly beside the kitchen
cabinet Fig.1(3).*
There must be a ventilation shaft at the depth Fig. 1 (D) of
the back of the top cupboard over the entire width of the
top cupboard.*
The ventilation cross-section Fig. 1 (C) must be maintained
under the ceiling.*
If the appliance is set up with the hinges next to a wall
Fig. 1 (4), the distance between the appliance and the wall
must be at least 13mm .*
If the appliance is set up with the hinges next to a wall
Fig. 1 (4), the distance between the appliance and the wall
must be at least 20mm .*
In order to be able to fully open the door, the appliance must
protrude by the depth of the door Fig. 1 (B) from the front
of the kitchen cabinet. The appliance may protrude further
depending on the depth of the kitchen cabinets Fig.1(3) and
whether wall spacers are used.*
Appliances without handle / with recessed grip:*
A
675mm
x
B 75mm
C
Min. 300cm
2
D Min. 50mm
E Min. 13mm
x
The use of wall spacers increases the dimensions by
15mm (see9 Mounting wall spacers) .*
Appliances with recessed grip and glass/stone
front:*
A
682mm
x
B 82mm
C
Min. 300cm
2
D Min. 50mm
E Min. 20mm
x
The use of wall spacers increases the dimensions by
15mm (see9 Mounting wall spacers) .*

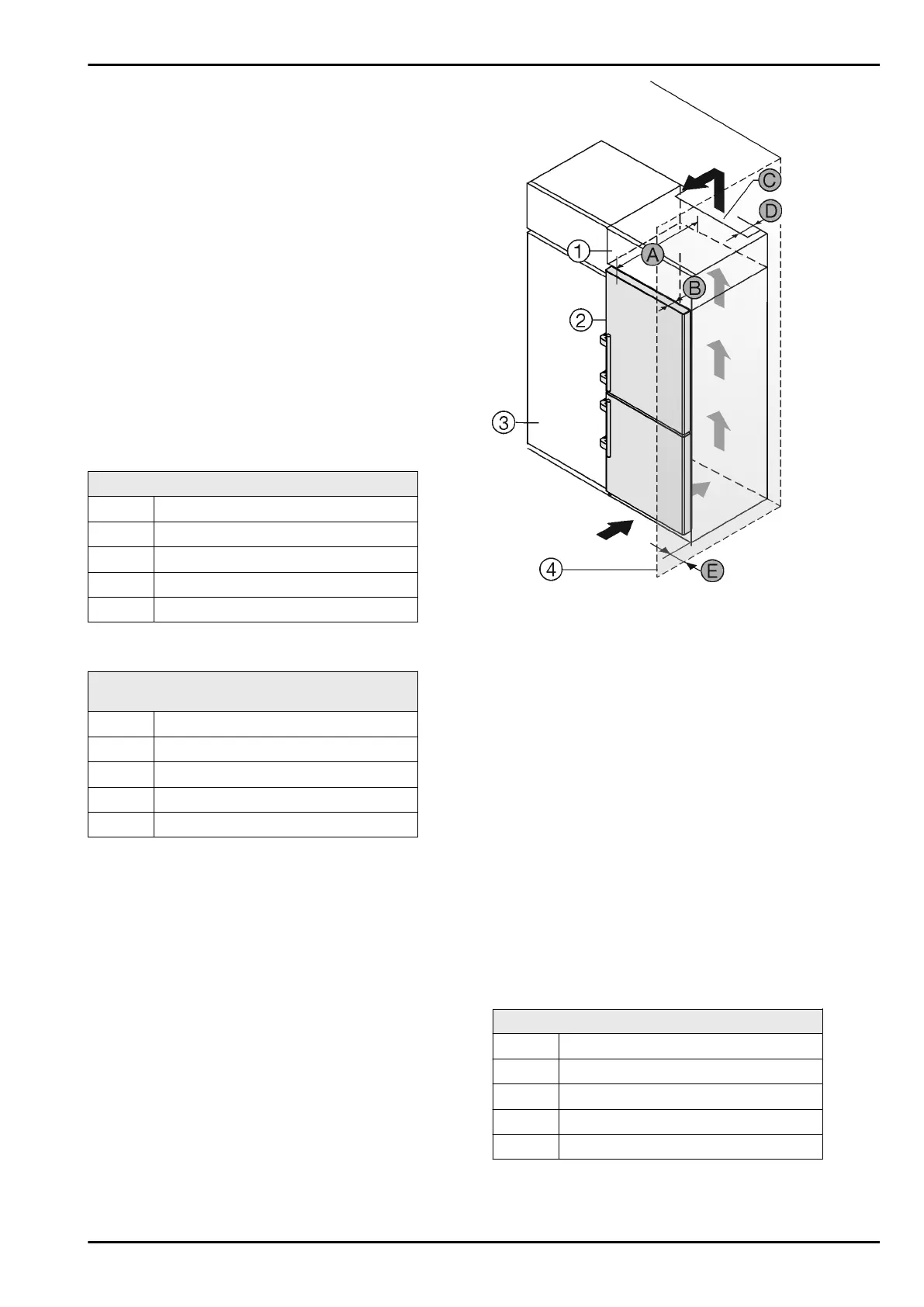

Fig.2
(1)
Top cabinet * (B) Door depth *
(2) Appliance * (C) Ventilation cross section
*
(3) Kitchen cabinet * (D) Distance to the back of
the appliance *
(4) Wall * (E) Distance to the side of
the appliance *
(A) Appliance depth *
You can place the appliance directly beside the kitchen
cabinet Fig.2(3).*
There must be a ventilation shaft at the depth Fig. 2 (D) of
the back of the top cupboard over the entire width of the
top cupboard.*
The ventilation cross-section Fig. 2 (C) must be maintained
under the ceiling.*
If the appliance is set up with the hinges next to a wall
Fig. 2 (4), the distance between the appliance and the
wall must be at least 57 mm . This is how far the handle
protrudes when the door is open.*
In order to be able to fully open the door, the appliance must
protrude by the depth of the door Fig. 2 (B) from the front
of the kitchen cabinet. The appliance may protrude further
depending on the depth of the kitchen cabinets Fig. 2 (3)
and whether wall spacers are used.*
Appliances with lever handle:*
A
675mm
x
B 75mm
C
Min. 300cm
2
D Min. 50mm
E Min. 57mm
x
The use of wall spacers increases the dimensions by
15mm (see9 Mounting wall spacers) .*
Installation conditions
4 * Depending on model and options
