TORX 15
1
2

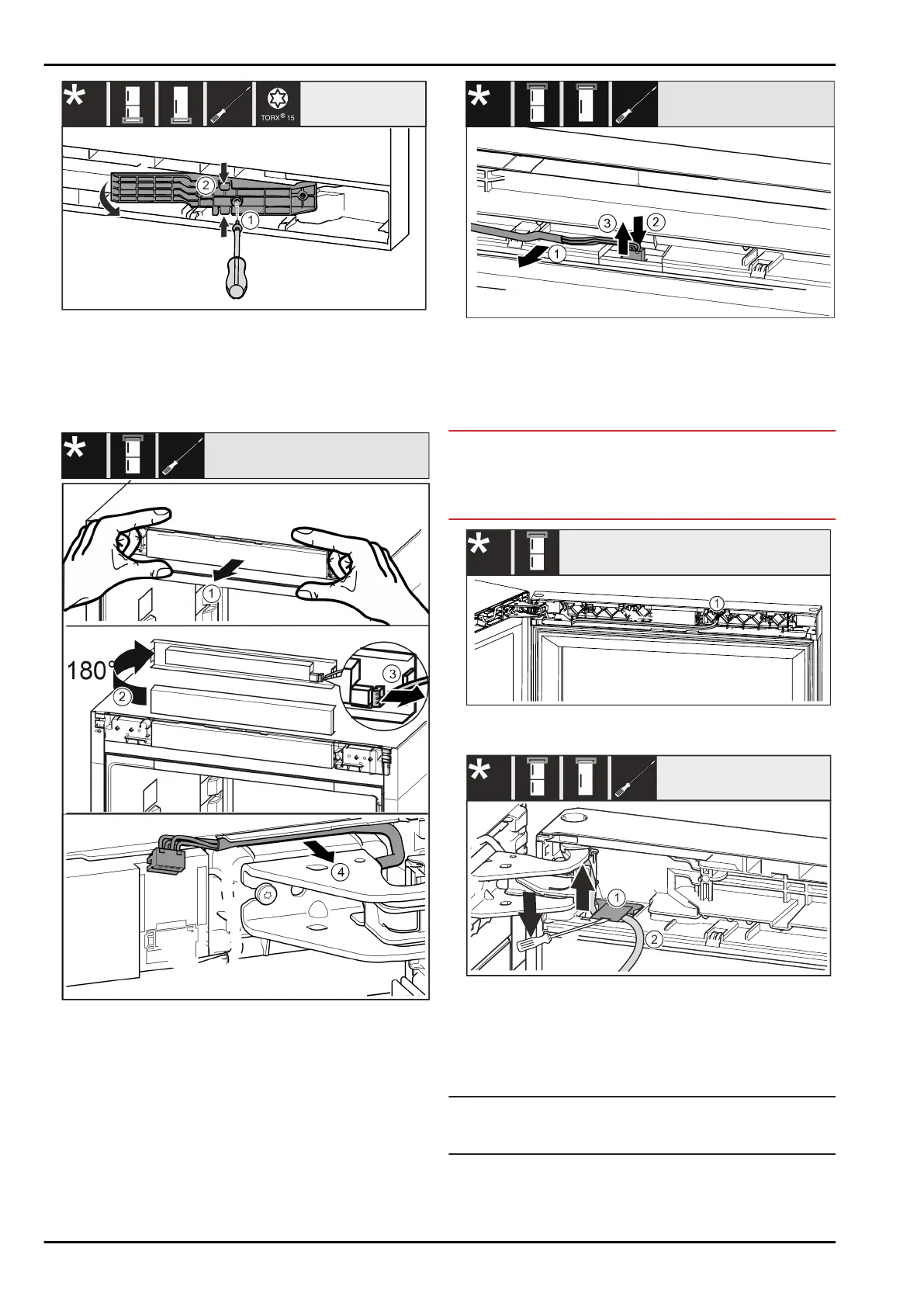

Fig. 19*
u
Remove the screw Fig. 19(1).*
u
Gently press the adapter piece Fig. 19 (2) together at the
top and bottom and pull it out.*
14.3 Undoing the cable connection
Fig.20
u
Carefully release the control panel trim Fig. 20 (1)
forwards.
u
Turn the control panel trim Fig.20(2) upwards by 180°.
u
Push the locking tab Fig. 20 (3) backwards and remove
the plug carefully.
u
Release the cable over the swap bearing block Fig. 20 (4)
from the guide carefully.
Fig. 21 Fridge/freezer combinations / freezers / refrigera‐
tors
u
Release the cable Fig. 21 (1) from the guide in the door
carefully.*
u
Push the tab Fig.21(2) behind the plug backwards.*
u
Pull the plug Fig.21(3) out upwards carefully.*
NOTICE
Risk of damage due to interrupted power supply!*
Damaged door lighting or operating electronics.
u
Do not pull out the end of the cable that is built into the
door.
*
1
Fig. 22 Wine-freezer combinations*
u
Pull the plug Fig.22(1) out of the retaining clip.*
2
*
1
Fig.23
u
Use the slotted screwdriver to lift the cover Fig. 23 (1) up
and pull it out.
u
Pull out the cable Fig.23(2).
14.4 Removing the top door
Note
u
Remove any food from the door racks before removing
the door, so that no food falls out.
For all appliances:
Door hinge change
* Depending on model and options 11
