u
Open the bottom door.
NOTICE
Risk of damage!
If the door seal is damaged, the door may fail to close prop‐
erly and the cooling will be inadequate.
u
Do not damage the door seal with the screwdriver!
u
Use a slotted screwdriver to unlatch the trim and swing it
to the side. (see Fig. 14)

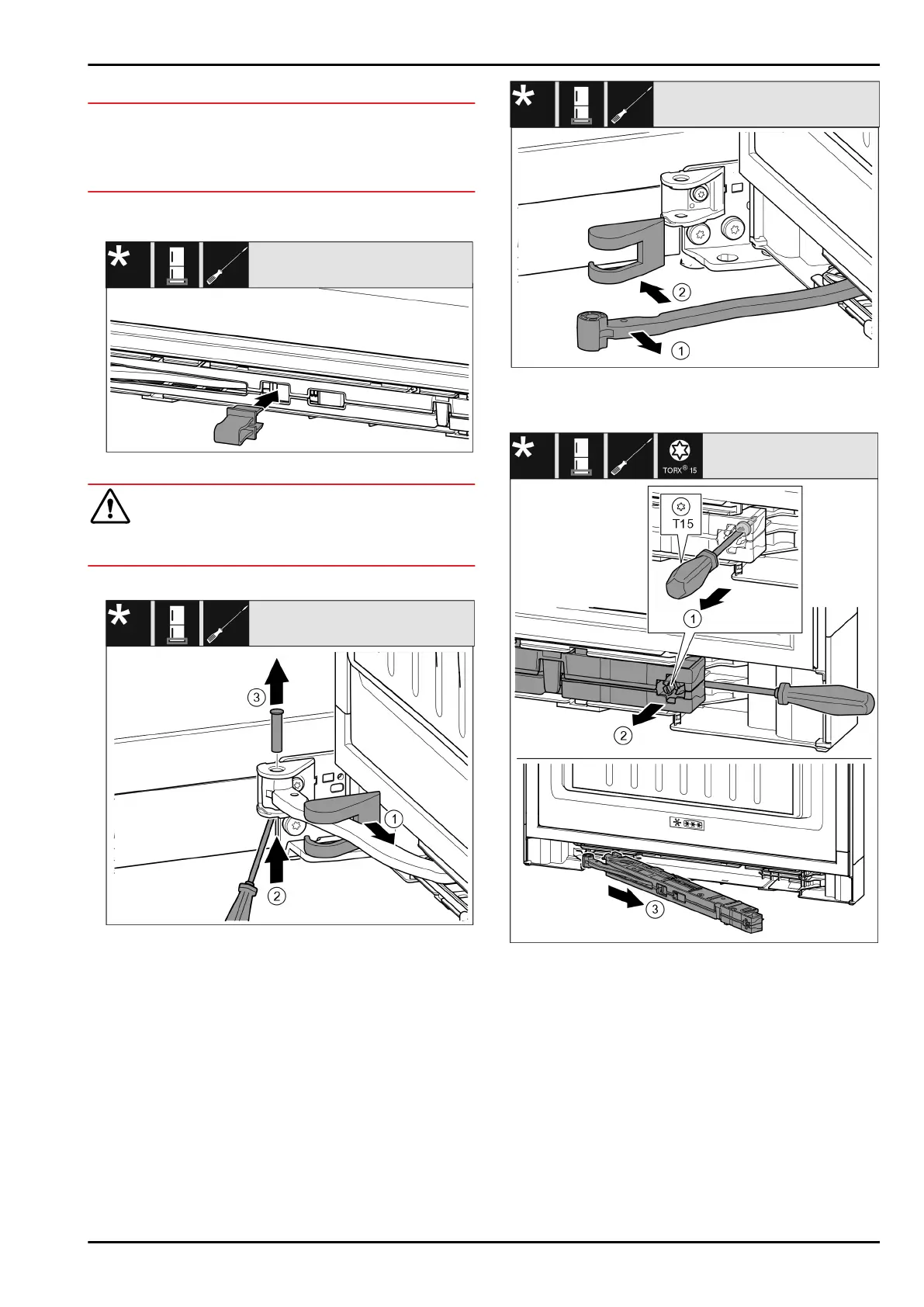

Fig. 15
CAUTION
Crushing hazard by joint folding up!
u
Engage safety device.
u
Latch safeguard into opening. (see Fig. 15)
Fig. 16
u
Remove the swap bearing block cover Fig. 16 (1) and slide
along the joint.
u
Use a screwdriver to lift the bolt Fig. 16(2) from below.
u
Pull out the bolt Fig. 16(3) from above.
Fig.17
u
Turn the joint Fig.17(1) towards the door.
u
Remove the swap bearing block cover Fig.17(2).
Fig. 18
u
Use screwdriver to loosen the screw Fig. 18 (1) on the
closing damper unit by 14mm.
u
Lever the closing damper unit Fig. 18 (2) forwards on the
handle side using a screwdriver.
u
Pull out the closing damper unit Fig. 18(3).
u
Place the soft stop mechanism to one side.
Door hinge change
10 * Depending on model and options
