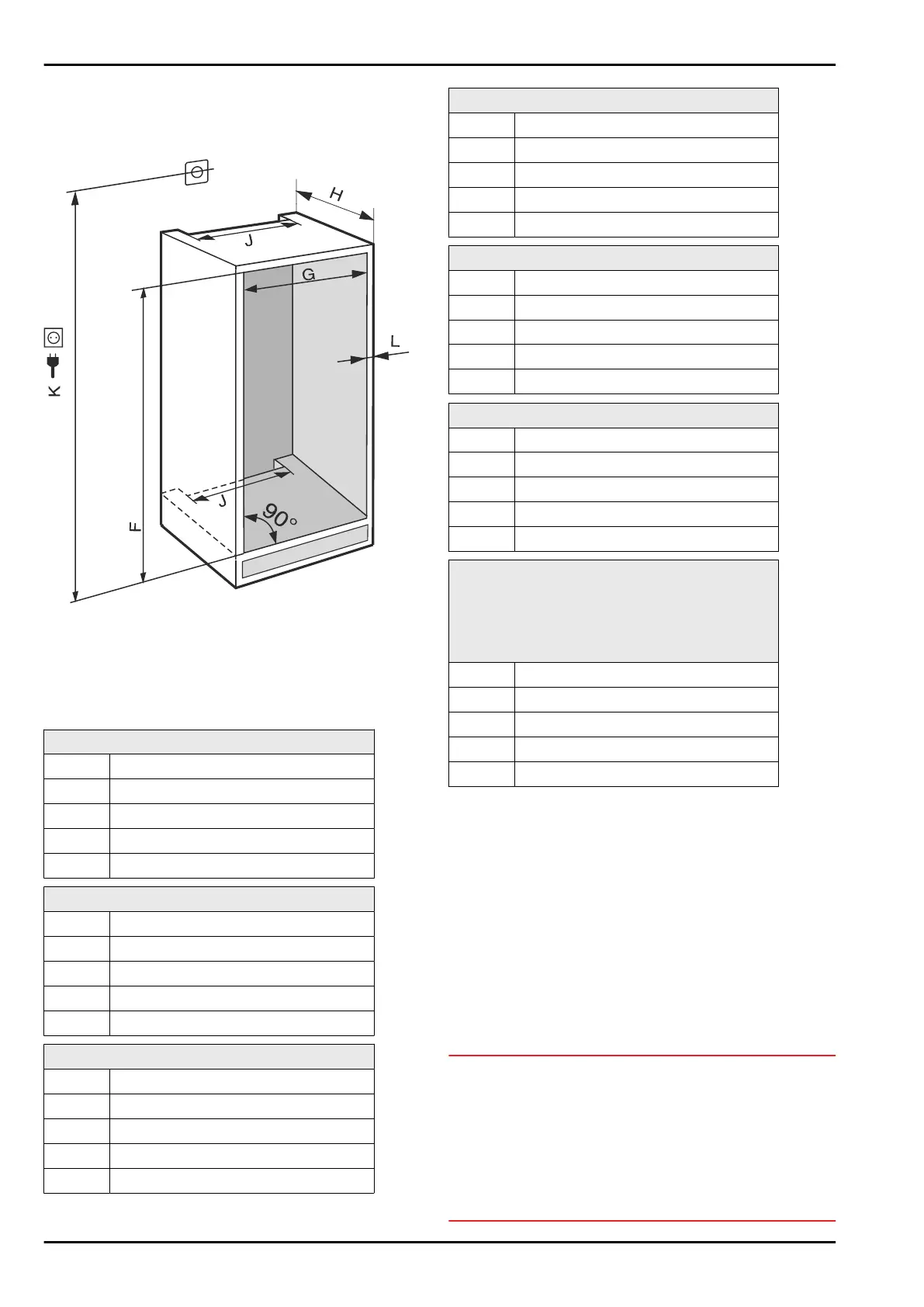

4 Recess dimensions
4.1 Internal dimensions
Fig.4 (K): max. 2100mm
Observe the following information for appliances with a
permanent water connection:
-
Water connection (see7 Water connection*)
-
Connect the appliance to the water supply
(see 15 Connecting the appliance to the water supply*)
IFN..(i) 35..
F (mm) 714 to 730
G (mm) 560 to 570
H (mm) min. 550, recommended560
J (mm) min.500
L (mm) max. 19
IFN..(i) 39.. / IR..(i) 39.. / SIBa20i 3905 / SIFN..i 39..
F (mm) 874 to 890
G (mm) 560 to 570
H (mm) min. 550, recommended560
J (mm) min.500
L (mm) max. 19
IR(B)..(i)40..
F (mm) 1024 to 1040
G (mm) 560 to 570
H (mm) min. 550, recommended560
J (mm) min.500
L (mm) max. 19
IR(B)..(i) 41.. / IRBbsbi 4170 / SIFN..i 41..
F (mm) 1216 to 1236
G (mm) 560 to 570
H (mm) min. 550, recommended560
J (mm) min.500
L (mm) max. 19
IR(B)..(i) 45.. / IRBbsbi 4570 / SIFN..i 45..
F (mm) 1397 to 1413
G (mm) 560 to 570
H (mm) min. 550, recommended560
J (mm) min.500
L (mm) max. 19
IRB..i48..
F (mm) 1574 to 1590
G (mm) 560 to 570
H (mm) min. 550, recommended560
J (mm) min.500
L (mm) max. 19
IC(B)(N)..(i) 51.. / ICBNbsci 5173 / IKG 51Ve03 /
IKGN 51Vc03 / ICNbsci 5173 / IKGN 51Ve03 / IR(B)
(P)..(i) 51.. / IRD..i 51.. / IRBbsci 5170 /
IRBbsci 5171 / IRBPbsci 5170 / IKB 51Vc50i /
IKB 51Vc51i / IK 51Ve00 / IK 51Ve01 / SICN..i 51.. /
SIFN..(i) 51../ SIFNbsdi51..
F (mm) 1772 to 1788
G (mm) 560 to 570
H (mm) min. 550, recommended560
J (mm) min.500
L (mm) max. 19
The specified energy consumption was determined with a
kitchen unit depth of 560 mm . The appliance will work
properly at a kitchen unit depth of 550 mm , but with a
slightly higher energy consumption.
u
Check the wall thickness of adjacent units: It must be a
minimum of 16mm .
u
Only fit the appliance into stable, solid kitchen units.
Secure the unit against tipping.
u
Align the cabinets with a level and a try square. If
necessary, level them by putting something underneath
them.
u
Make sure floor and the side panels of the cabinet are at
right angles to each other.
5 Ventilation requirements
NOTICE
Covered vents!
Damage. Appliance can overheat, which can reduce the
service life of various parts of the appliance and lead to
functional impairments.
u
Always ensure good ventilation.
u
Always keep vents or ventilation grills in the appliance
housing and in the kitchen structure (built-in appliance)
unobstructed.
u
Never block air vents of the fan.
Recess dimensions
* Depending on model and options 5
