9.1.2 Drawer on telescopic rails

Drawer on glass shelf

Disassembling pull-out system

Make sure the following prerequisites are met:

Drawer has been removed.

Glass shelf has been removed. (see 8.3 Glass shelves)

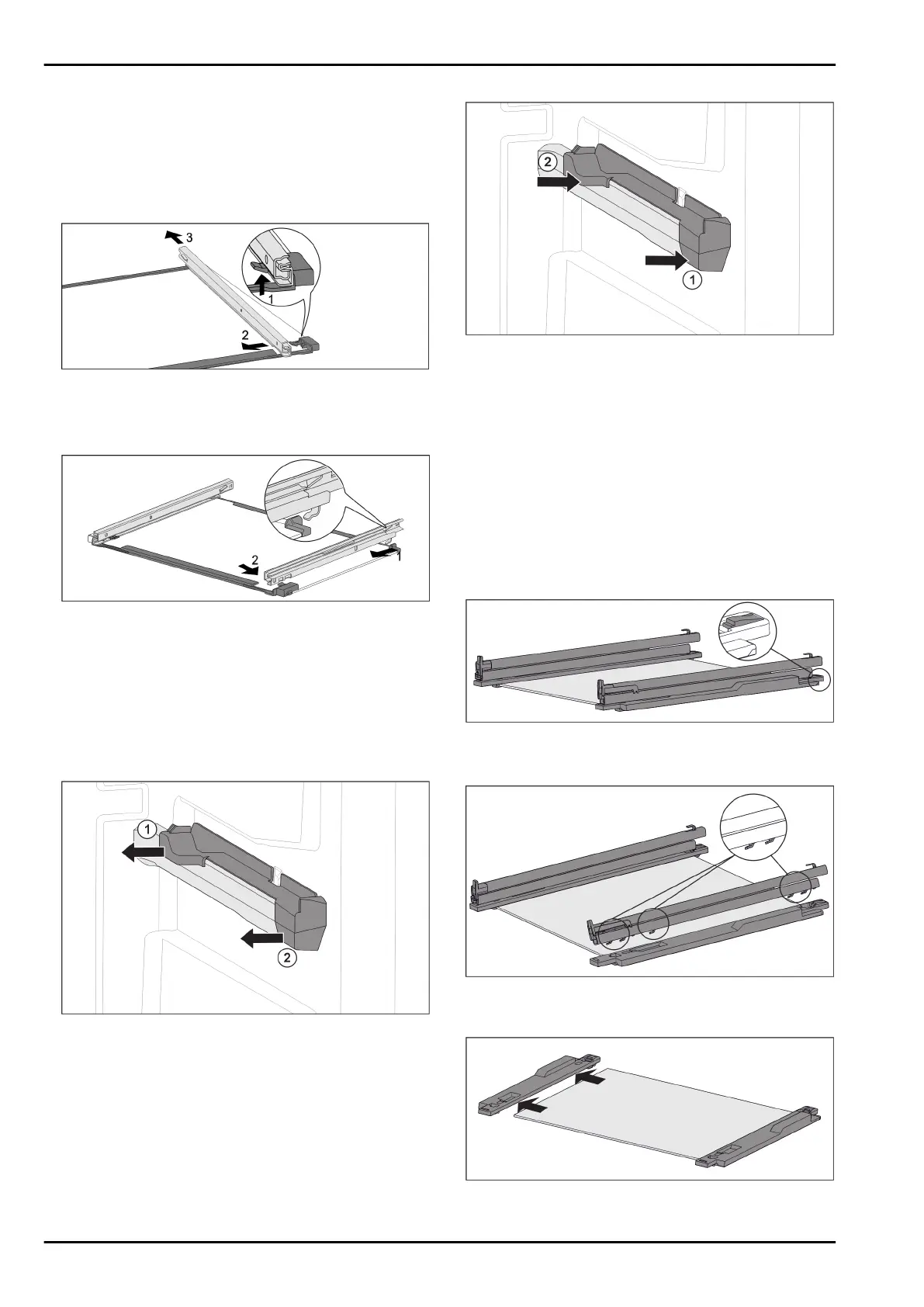

Fig. 112 Glass shelf with rails

Push up front click-in hooks. (1)

Move pull-out rails to the side (2) and to the rear (3).

Installing pull-out system

Fig. 113 Glass shelf with rails

Hook in rail at the back. (1)

Hook in rail at the front. (2)

9.1.3 Drawer on moulded rib*

Disassembling pull-out system

Make sure the following prerequisites are met:

Drawer has been removed. (see 8.1.3 Drawer on moulded

rib*)

Fig. 114 Attachment on the right moulded rib

Grab attachment at the back from below.

Pull off attachment at the back sideways. Fig. 114(1)

Pull off attachment at the front sideways. Fig. 114(2)

Installing pull-out system

Fig. 115 Attachment on the right moulded rib

Position attachment on moulded rib at the front.

Fig. 115(1)

Press on attachment at the back. Fig. 115(2)

9.1.4 IceTower

Disassembling pull-out system

Make sure the following prerequisites are met:

IceTower has been removed. (see 8.2 Pull-out board with

IceTower)

Glass shelf has been removed. (see 8.3 Glass shelves)

Place pull-out board on a table.

You are able to remove the rails more easily from the

glass shelf.

Fig. 116 Glass shelf with rails and retaining parts

Press down retaining part at the rear (see Fig.116) and at

the same time push the rail back.

Fig. 117 Glass shelf with rails and retaining parts

The rail hooks are released from the retaining part.

Remove rail from retaining part.

Fig. 118 Glass shelf with retaining part

Remove retaining part from glass shelf sideways.

Maintenance

* Depending on model and options 25
