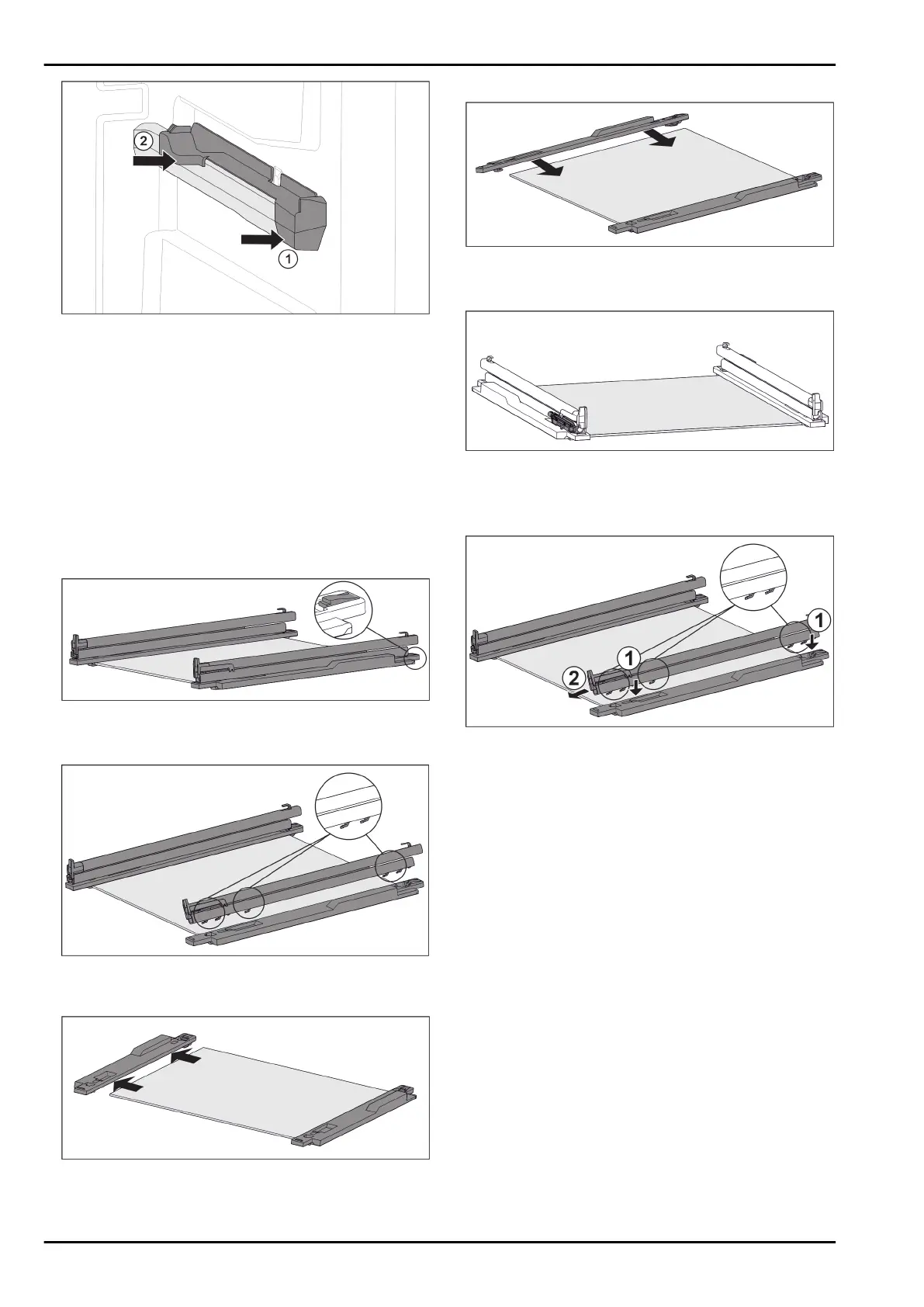

Fig. 57 Attachment on the right moulded rib
u
Position attachment on moulded rib at the front.
Fig. 57 (1)
u
Press on attachment at the back. Fig. 57 (2)
8.1.5 IceTower*
Disassembling pull-out system
Make sure the following prerequisites are met:
q
IceTower has been removed. (see 7.2 Pull-out board with
IceTower*)
q
Glass shelf has been removed. (see 7.3 Glass shelves*)
u
Place pull-out board on a table.
w
You are able to remove the rails more easily from the
glass shelf.
Fig. 58 Glass shelf with rails and retaining parts
u
Press down retaining part at the rear (see Fig. 314) and at
the same time push the rail back.
Fig. 59 Glass shelf with rails and retaining parts
w
The rail hooks are released from the retaining part.
u
Remove rail from retaining part.
Fig. 60 Glass shelf with retaining part
u
Remove retaining part from glass shelf sideways.
Installing pull-out system
Fig. 61 Glass shelf with retaining part
u
Fit retaining part on glass shelf.
u
Push retaining part onto glass shelf as far as it will go.
Fig. 62 Damping mechanism
The damping mechanism is attached to the left rail. (see
Fig. 318) There is no damping mechanism attached to the
right rail.
Fig. 63 Glass shelf with rails and retaining parts
Install rail with damping mechanism:
u
Place rail hooks onto the openings of the left retaining
part. Fig. 63 (1)
u
Push rail forwards. Fig. 63 (2)
w
Rail latches in audibly.
Install rail without damping mechanism:
u
Place rail hooks onto the openings of the right retaining
part. Fig. 63 (1)
u
Push rail forwards. Fig. 63 (2)
w
Rail latches in audibly.
8.2 Defrosting the appliance
8.2.1 Defrosting with NoFrost
Defrosting is performed automatically with the NoFrost
system. The moisture is deposited on the evaporator, is peri‐
odically defrosted and evaporates.
The appliance does not need to be defrosted.
Maintenance
* Depending on model and options 21
