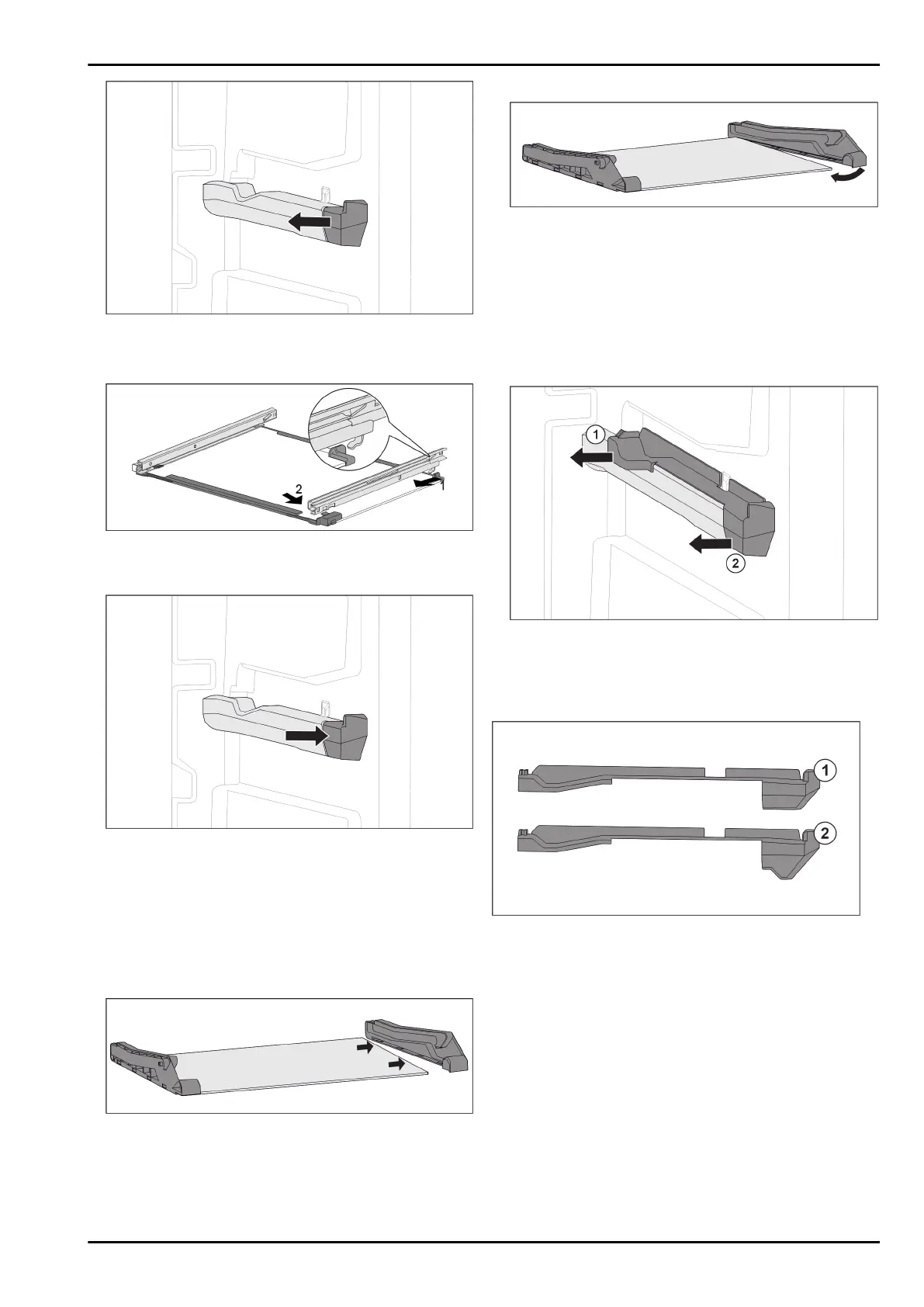

Fig. 50 Attachment on the right moulded rib
u
Remove moulded rib attachment sideways.
Installing pull-out system
Fig. 51 Glass shelf with rails
u
Hook in rail at the back. (1)
u
Hook in rail at the front. (2)
Fig. 52 Attachment on the right moulded rib
u
Press attachment onto moulded rib.
8.1.3 Top tilting drawer*
Disassembling pull-out system
Make sure the following prerequisites are met:
q
Drawer has been removed. (see 7.1.3 Top tilting drawer*)
q
Glass shelf has been removed. (see 7.3 Glass shelves*)
Fig. 53 Glass shelf with side parts
u
Pull off side part from glass shelf sideways.
Installing pull-out system
Fig. 54 Glass shelf with side parts
u
Place on side part at the back.
u
Press side part onto glass shelf at the front.
8.1.4 Drawer on moulded rib*
Disassembling pull-out system
Make sure the following prerequisites are met:
q
Drawer has been removed. (see 7.1.4 Drawer on moulded
rib*)
Fig. 55 Attachment on the right moulded rib
u
Grab attachment at the back from below.
u
Pull off attachment at the back sideways. Fig. 55 (1)
u
Pull off attachment at the front sideways. Fig. 55 (2)
Installing pull-out system
Fig. 56 Comparing attachments
There are two different attachments in the appliance. The
attachment above the lowest drawer Fig. 56 (2) has a three-
cornered edge. All other attachments Fig. 56 (1) have a
straight edge.
u
Fit attachment Fig. 56 (2) with the three-cornered edge
above the lowest drawer.
u
Fit attachment Fig. 56 (1) with straight edge in all other
positions.
Maintenance
20 * Depending on model and options
