7.1.4 Drawer on moulded rib*
The drawer runs directly on the moulded rib. There are no
rails.
Removing drawer

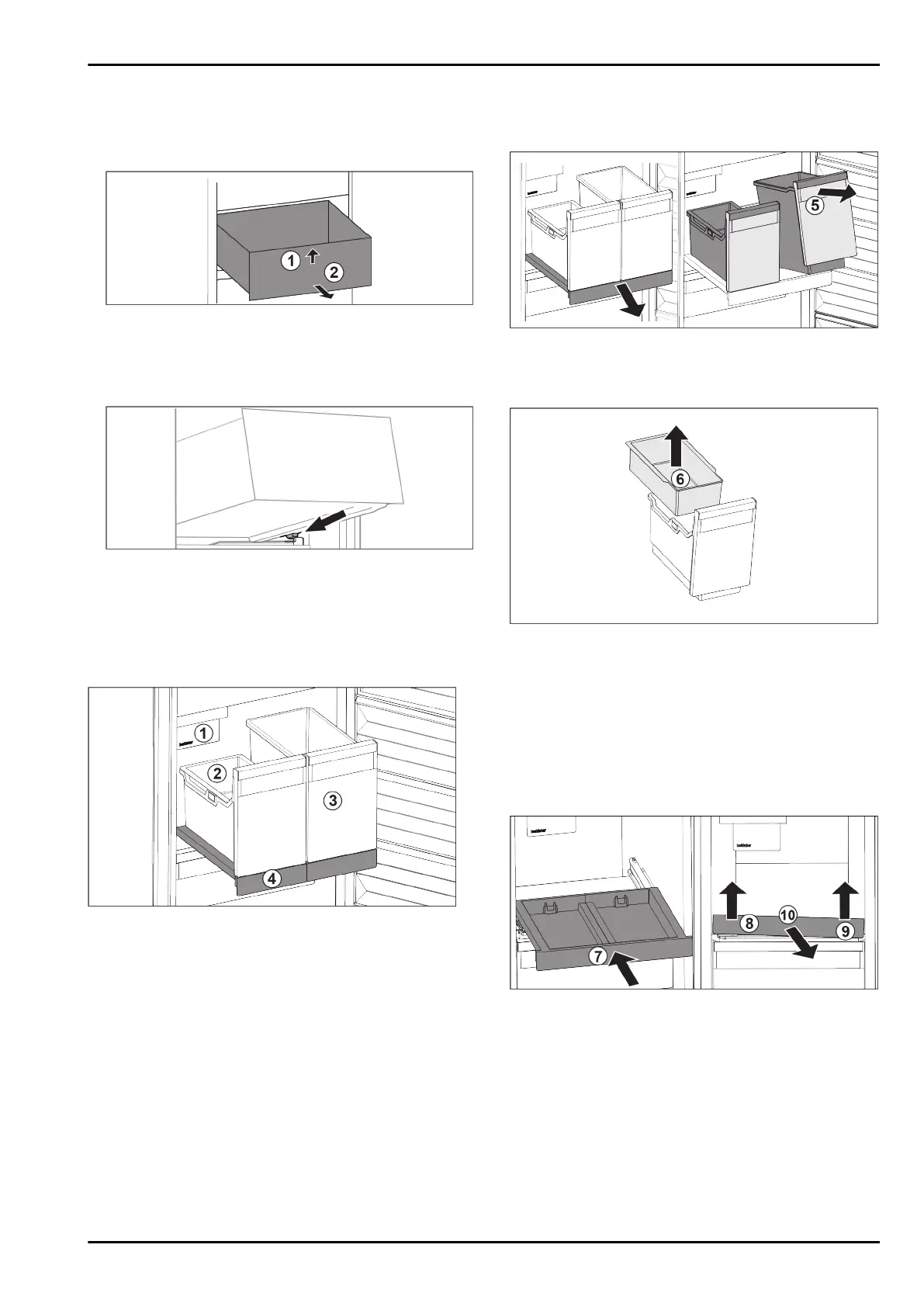

Fig. 30
u
Pull out drawer as far as it will go.
u
Lift up drawer at the front. Fig. 30 (1)
u
Remove drawer to the front. Fig. 30 (2)
Inserting drawer
Fig. 31
u
Place drawer at an angle behind the stoppers on the
moulded rib. (see Fig. 287)
u
Lower drawer.
u
Slide in drawer to the back.
7.2 Pull-out board with IceTower*
Fig. 32 Pull-out board with IceTower
(1)
IceMaker (3) Container for pizza or
alcoholic beverages, for
example
(2) Hang-on tray for ice
cubes
(4) Pull-out board
There are two high (IceTower) containers on the pull-out
board. Ice cubes from the IceMaker are collected and stored
in the Fig. 32 (2) container. The container Fig. 32 (3) is suit‐
able for storing tall foodstuffs or beverages such as pizzas
or alcoholic drinks.
The pull-out board with IceTower is mounted on a glass
shelf with pull-out rails. You can dismantle the pull-out
board for cleaning.
7.2.1 Dismantling the pull-out board with
IceTower
Removing the container
Fig. 33
u
Pull out the pull-out board.
u
Lift the container Fig. 33 (5) at the front.
u
Remove the container.
Fig. 34
u
Remove the hang-on tray Fig. 34 (6).
u
If there are ice cubes in the hang-on tray: Empty the
hang-on tray.
w
The container and hang-on tray have been removed and
you can clean them. (see 8.3.3 Clean the components)
Removing the pull-out board
Ensure that the following conditions are met:
q
Containers have been removed. (see 7.2.1.1 Removing the
container)
Fig. 35
u
Slide in the pull-out board. Fig. 35 (7)
u
Lift the pull-out board on the front left. Fig. 35 (8)
u
Lift the pull-out board on the front right. Fig. 35 (9)
w
Pull-out board is detached from the attachment at the
front.
u
Take out the pull-out board to the front. Fig. 35 (10)
w
The pull-out board has been removed and you can clean
it. (see 8.3.3 Clean the components)
Removing the glass shelf from under the pull-out board
(see 7.3 Glass shelves*)
Features
16 * Depending on model and options
