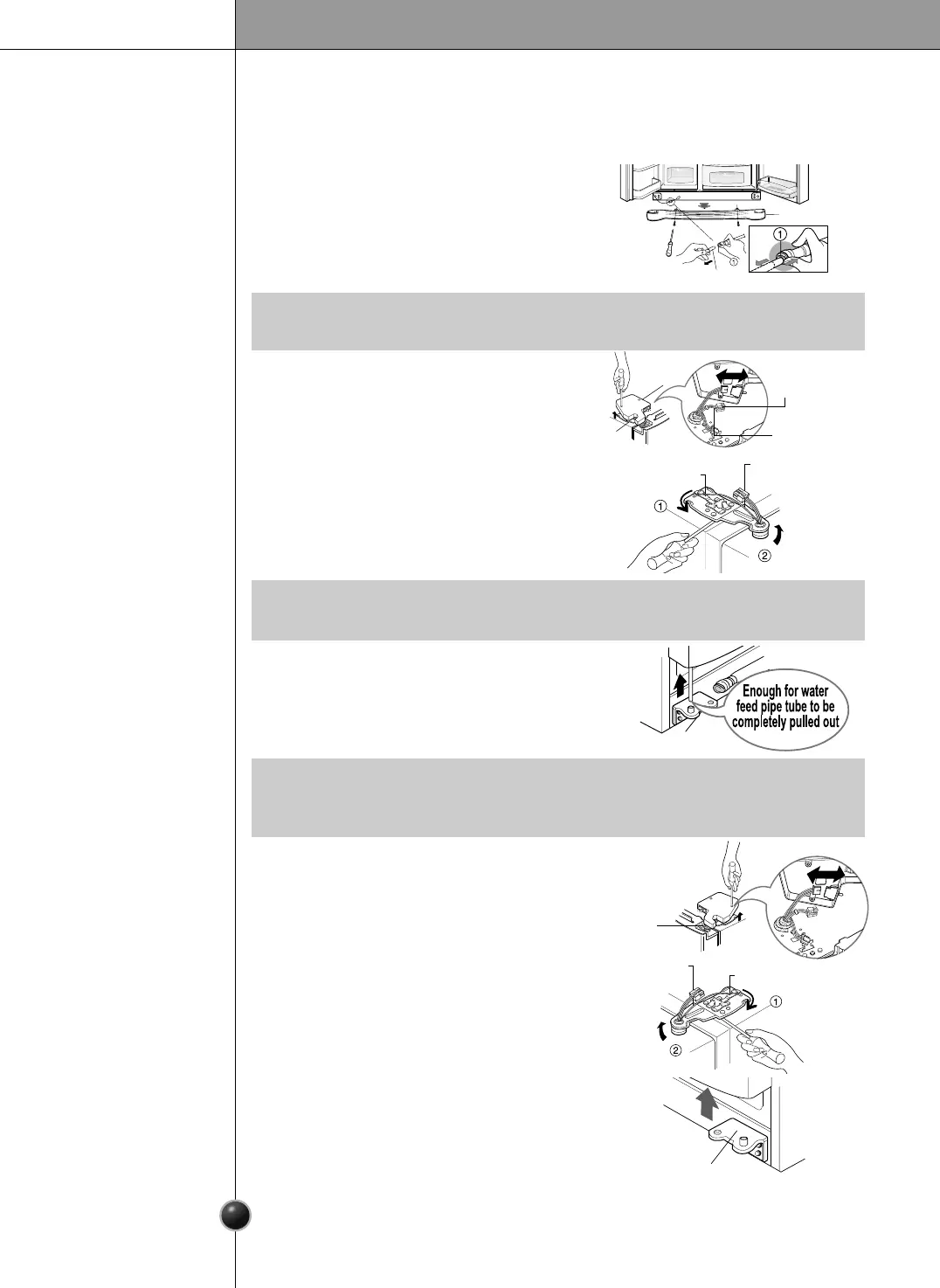

Door Removal
If your access door is too narrow for the refrigerator to pass the through, remove
the refrigerator door and pass the refrigerator
laterally.
Remove the lower cover by lifting upward, and
then pull up the feed water tube while pressing
area
shown in the figure to the right.
Remove lower
cover and
then feed water
pipe
Remove the
freezer
compartment
door
Remove the
refrigerator
door
Installation
6
1) Separate all connection wires except for the
earth line after removing the hinge cover by
loosening the screws.
2) Remove the keeper by rotating it to counted
clockwise (
)
and then lifting the upper
hinge up (
).
3) Remove the freezer compartment door by
lifting it upward. This time, the door should
be lifted enough for the feed water pipe tube
to be completely pulled out.
1) Loosen the hinge cover screws and remove
the cover. Remove all connection wires, if
any, except for the earth line
2) Remove keeper by rotating it clockwise (
)
and then remove the upper hinge by lifting
it up (
).
3) Remove the refrigerator compartment door
by lifting it up.
•
If a tube end is deformed or abraded, cut the part away.
NOTE
•
In removing the upper hinge, be careful so that the door does not to fall over frontward.
NOTE
•
Move the refrigerator compartment door passing through the access door and
laying it down but be careful not to damage the feed water pipe tube.
NOTE
Lower Cover
Lower Hinge
Lower Hinge
Keeper
Feed Water Tube
Connection
wires
Connection
wires
Hinge
Cover
Upper
Hinge
Upper Hinge
Keeper
Upper
Hinge
Earth Line
