“Remove the fan” on page 53
“Remove the I/O board” on page 54
“Remove the I/O board cable” on page 55
“Remove the touchpad board cable” on page 55
“Remove the system board and the touchpad board cable” on page 56
“Remove the LCD module” on page 58
Go to
https://support.lenovo.com/partslookup to look up the Lenovo part number of the following replacement
part:
Upper case
Disassemble the LCD module
The LCD module as a whole is not an FRU. Instead, it contains FRUs as its components. Before
disassembling the LCD module, make sure it has been detached from the upper case.
Remove the LCD bezel
Make sure the following unit has been removed.
“Remove the LCD module” on page 58
Step 1. Remove the LCD bezel.

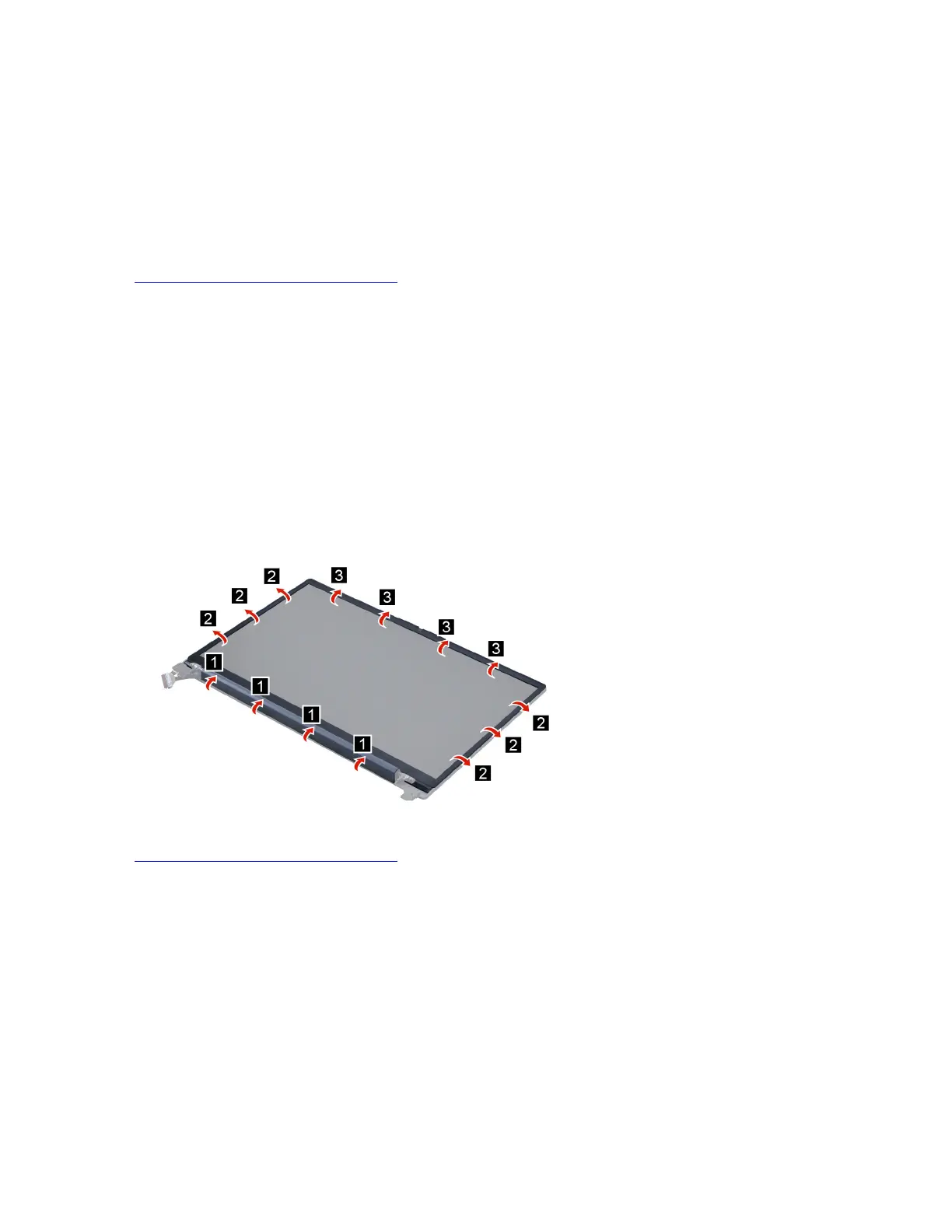

Figure 54. Remove the LCD bezel
Go to https://support.lenovo.com/partslookup to look up the Lenovo part number of the following replacement
part:
LCD bezel
Remove the hinges
Make sure the following FRUs (CRUs) have been removed.
“Remove the LCD module” on page 58
“Remove the LCD bezel” on page 60
Step 1. Remove ten screws and then remove the hinges.
60
Hardware Maintenance Manual
