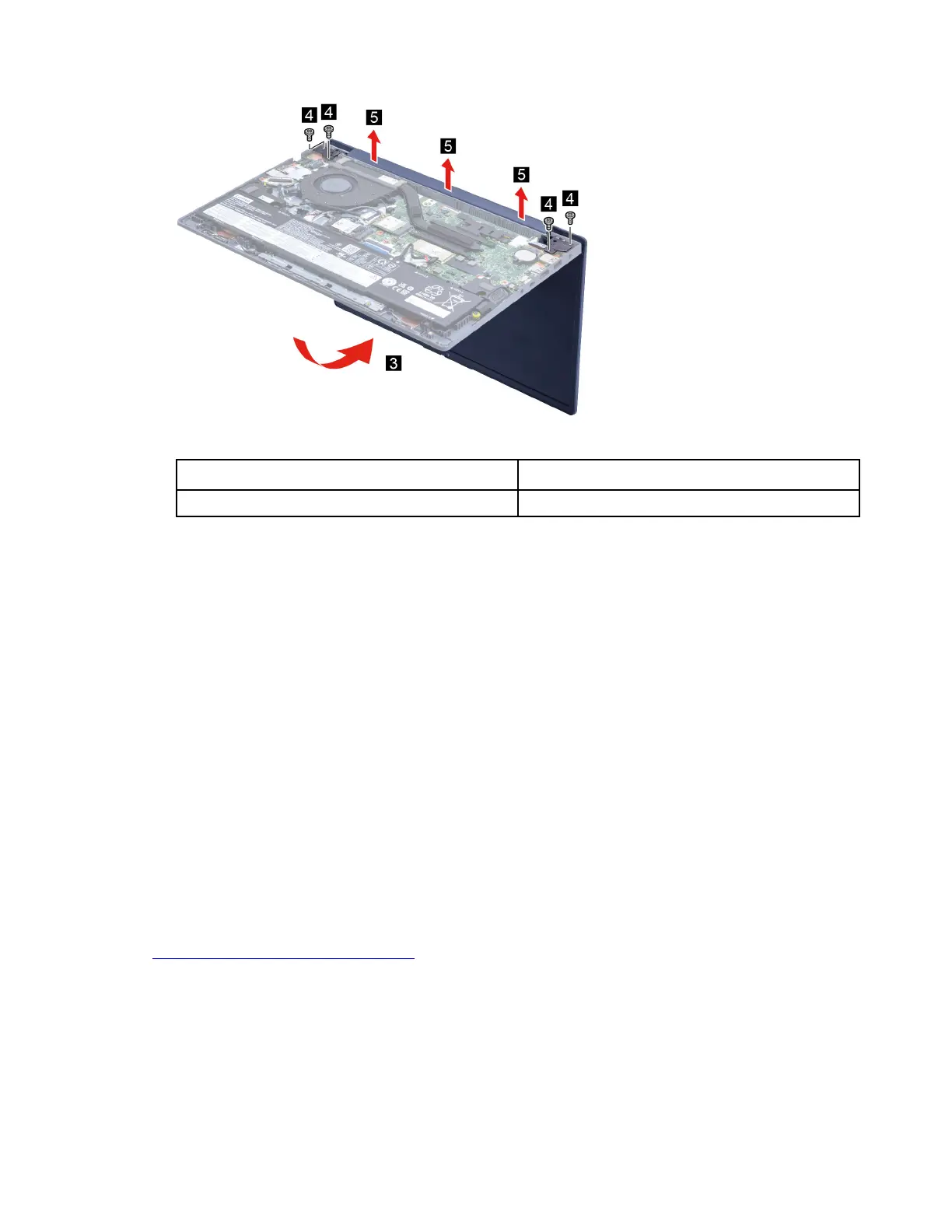

Figure 26. Remove four screws and then remove the LCD module
Screw specifications
Number of screws
M2.5 x L5 4
Remove the upper case
Make sure the following FRUs (CRUs) have been removed.
“Remove the lower case” on page 30
“Remove the battery pack” on page 31
“Remove the solid-state drive (SSD) module” on page 32
“Remove the solid-state drive (SSD) stand off” on page 33
“Remove the speakers” on page 34
“Remove the Wi-Fi card” on page 34
“Remove the heat sink” on page 35
“Remove the fan” on page 36
“Remove the I/O board” on page 36
“Remove the I/O board cable” on page 38
“Remove the touchpad board cable” on page 38
“Remove the system board” on page 39
“Remove the LCD module” on page 42
Go to
https://support.lenovo.com/partslookup to look up the Lenovo part number of the following replacement
part:
Upper case
Disassemble the LCD module
The LCD module as a whole is not an FRU. Instead, it contains FRUs as its components. Before
disassembling the LCD module, make sure it has been detached from the upper case.
Chapter 4. Removing a FRU or CRU 43
