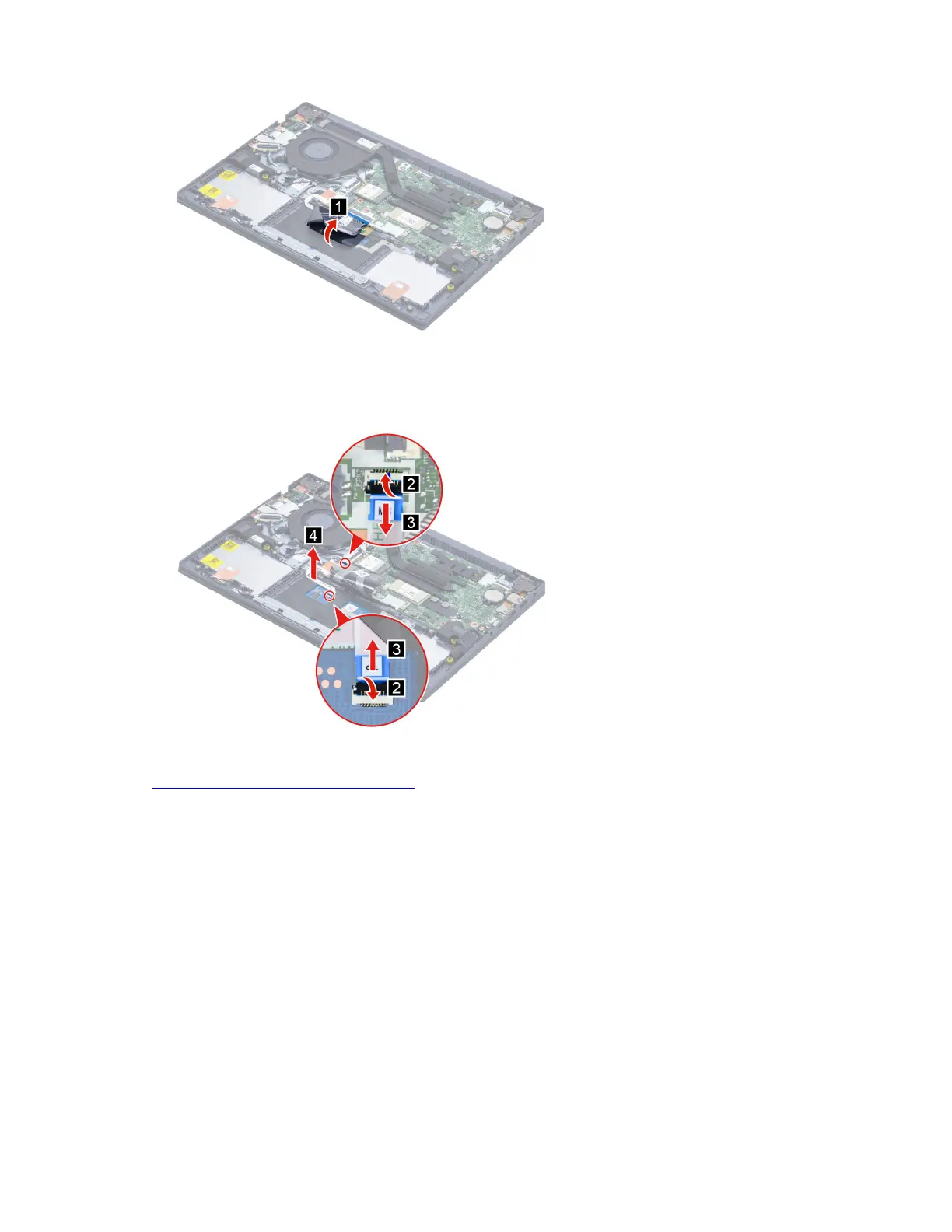

Figure 20. Peel off the keyboard cable
Step 2. Disconnect the touchpad board cable from the system board and touchpad board. Remove the
touchpad board cable.
Figure 21. Remove the touchpad board cable
Go to https://support.lenovo.com/partslookup to look up the Lenovo part numbers of the following
replacement parts:
Touchpad board cable
Remove the system board
Make sure the following FRUs (or CRUs) have been removed.
“Remove the lower case” on page 30
“Remove the battery pack” on page 31
“Remove the solid-state drive (SSD) module” on page 32
“Remove the solid-state drive (SSD) stand off” on page 33
“Remove the Wi-Fi card” on page 34
“Remove the heat sink” on page 35
Step 1. Remove two screws and then open the hinge.
Chapter 4. Removing a FRU or CRU 39
