I/O board
Remove the I/O board cable
Make sure the following FRU (or CRU) have been removed.
“Remove the lower case” on page 30
Step 1. Disconnect the battery pack cable from the system board.
Attention: Use your fingernails to pull the connector to unplug it. Do not pull the cable.
Step 2. Disconnect the I/O board cable from the I/O board and system board. Release the cable from cable
guide, then remove the I/O board cable.

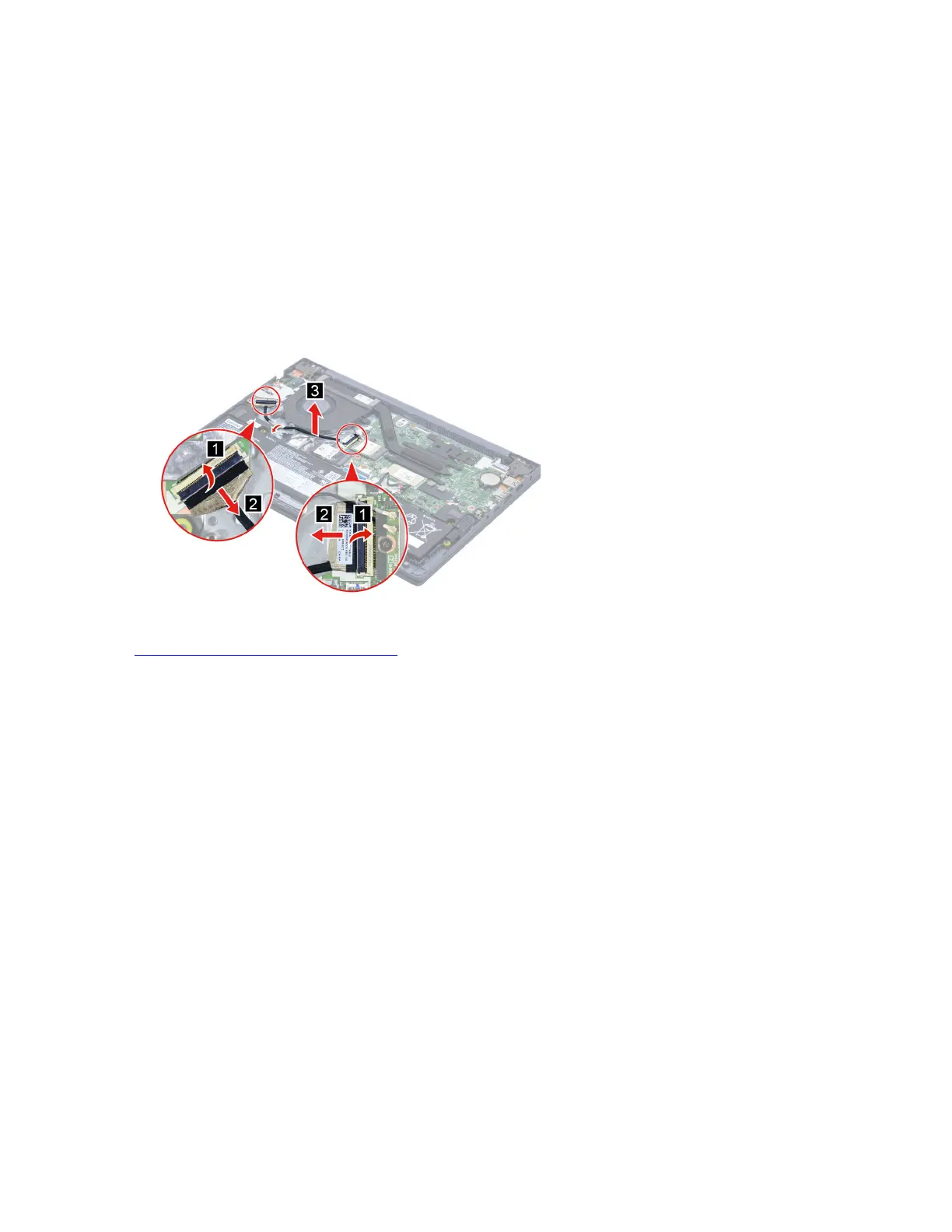

Figure 19. Remove the I/ O board cable
Go to https://support.lenovo.com/partslookup to look up the Lenovo part numbers of the following
replacement parts:
I/O board cable
Remove the touchpad board cable
Make sure the following FRU (or CRU) have been removed.
“Remove the lower case” on page 30
“Remove the battery pack” on page 31
Step 1. Peel off the keyboard cable.
38
Hardware Maintenance Manual
