Screw specifications Number of screws
M2 x L3.5 2
Go to
https://support.lenovo.com/partslookup to look up the Lenovo part number of the following replacement
part:
Battery pack
Remove the solid-state drive (SSD) module
Make sure the following FRU (or CRU) has been removed.
“Remove the lower case” on page 30
Step 1. Disconnect the battery pack cable from the system board.
Attention: Use your fingernails to pull the connector to unplug it. Do not pull the cable.
Step 2. Remove one screw then remove the SSD by pulling it away from the slot.

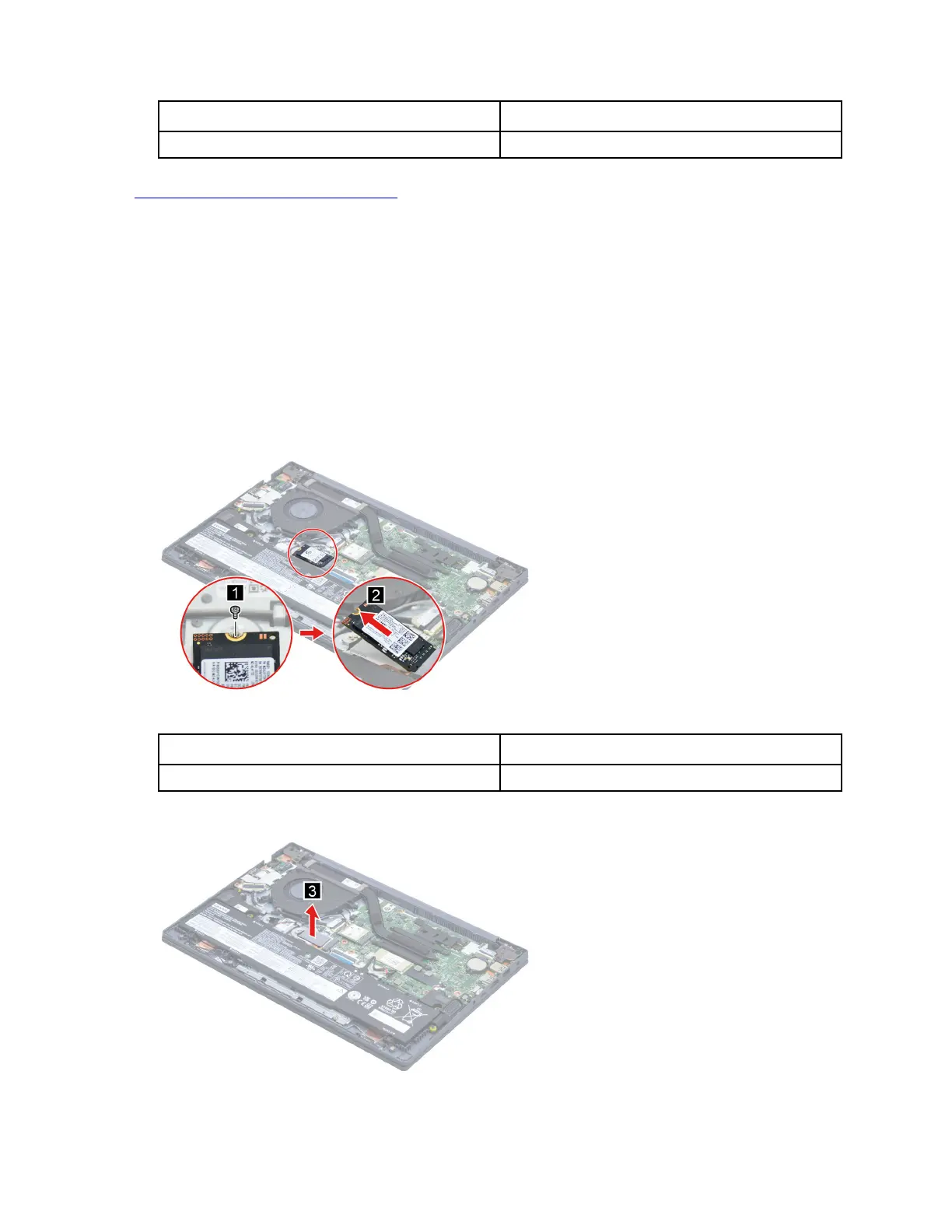

Figure 8. Remove one screw then remove the SSD by pulling it away from the slot
Screw specifications Number of screws
M2 x L2.8 1
Step 3. Remove the SSD thermal pad.
Figure 9. Remove the SSD thermal pad
32 Hardware Maintenance Manual
