Chapter 1. 1-8

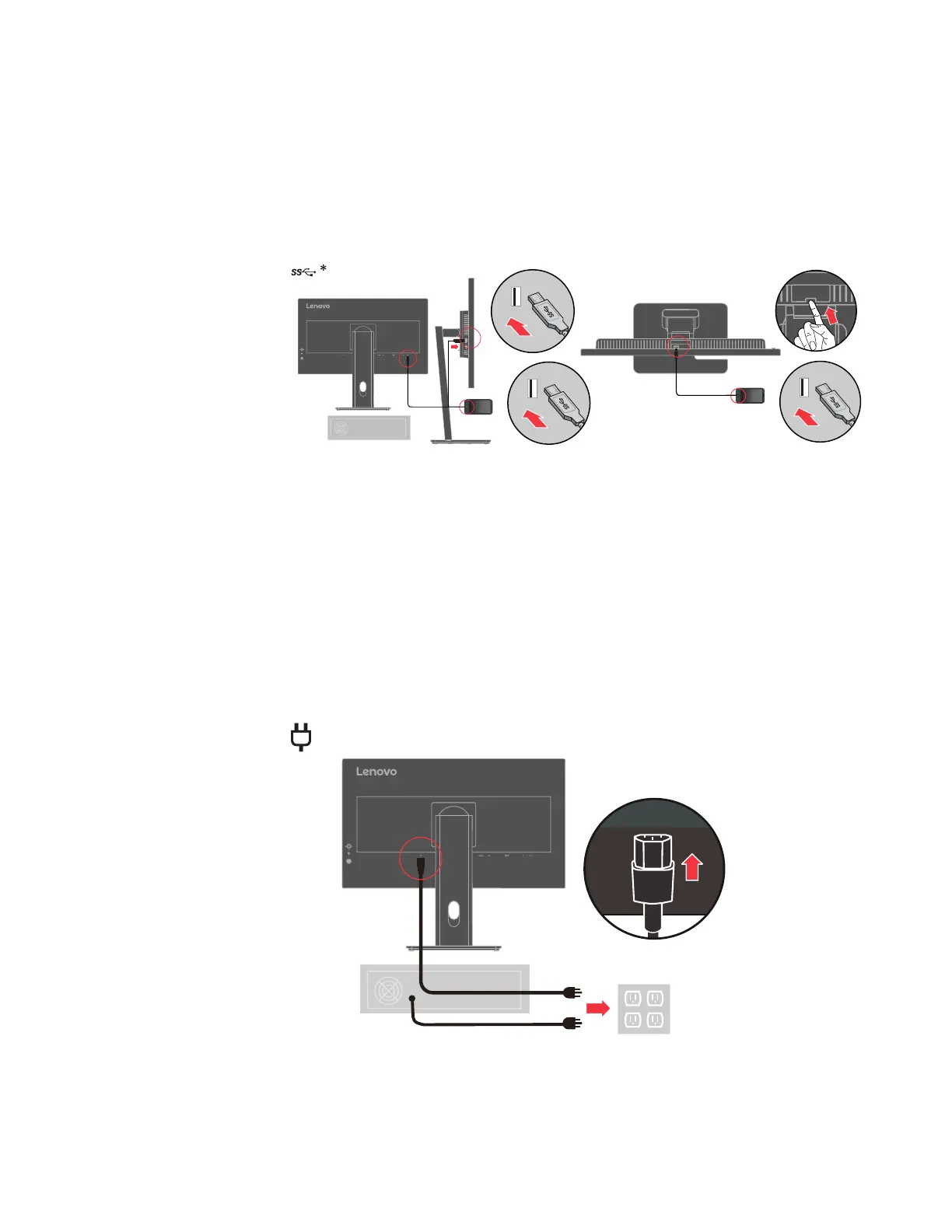

8. Connect one end of the USB cable to the USB downstream terminal of the monitor,
and connect the other end of the USB cable to an appropriate USB port on your
device.
Note: The USB downstream port does not provide power while the monitor switch
is off (when we select USB Always off mode).
USBA port below, 5V/0.9A
Right USBA port, 5V/0.9A
Upper USBA BC1.2 port, 5V/2.4A
If there are any * tag, you can consult the comments on page 1-1.
9. Insert the power cord into the monitor, then plug the monitor power cord and the
computer cord into grounded electrical outlets.
Note: A certified power supply cord has to be used with this equipment. The
relevant national installation and or equipment regulations shall be considered.
A certified power supply cord not lighter than ordinary polyvinyl chloride flexible
cord according to IEC 60227 (designation H05VV-F 3G 0.75mm
2
or H05VVH2-F2
3G 0.75mm
2
) shall be used. Alternative a flexible cord be of synthetic rubber
according to IEC 60245 (designation H05RR-F 3G 0.75mm
2
) shall be used.
Note: The type of plug & Socket shown here are for illustration only.
