1. There might be a wireless WAN card bracket preinstalled on your computer. You might need to

remove the bracket before the installation of a 5G wireless WAN card.

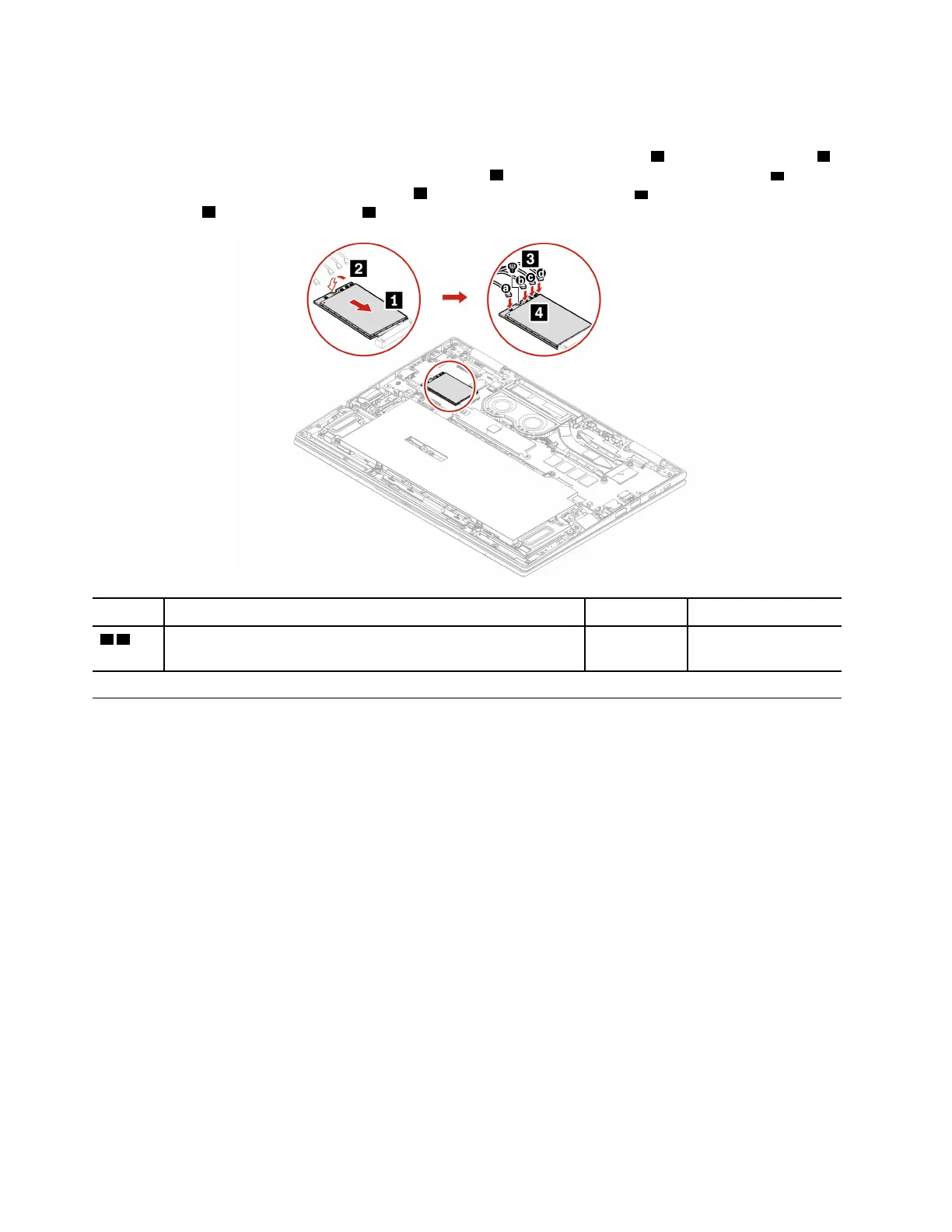

2. Insert the wireless WAN card into the slot at an angle of about 20 degrees

1 , and pivot downward 2 .

Install the screw to secure the wireless WAN card.

3 . Ensure you connect the blue cable to a

connector, the black with grey cable to b connector, the white cable to c connector, and the orange

cable to

d connector as shown 4 .

Step Screw (quantity) Color

Torque

3 4

M2 × L2.2 mm, big-hat (1) Silver 0.181 Nm

(1.85 kgf-cm)

1050 Pen charger (for ThinkPad X1 Yoga Gen 8 only)

For access, remove this FRU:

• “1010 Base cover assembly” on page 64

70

ThinkPad X1 Carbon Gen 11 and X1 Yoga Gen 8 Hardware Maintenance Manual
