Type three: models with wireless WAN bracket only

Step Screw (quantity) Color

Torque

2

M2 × L2.2 mm, big-hat (1) Silver

0.181 Nm

(1.85 kgf-cm)

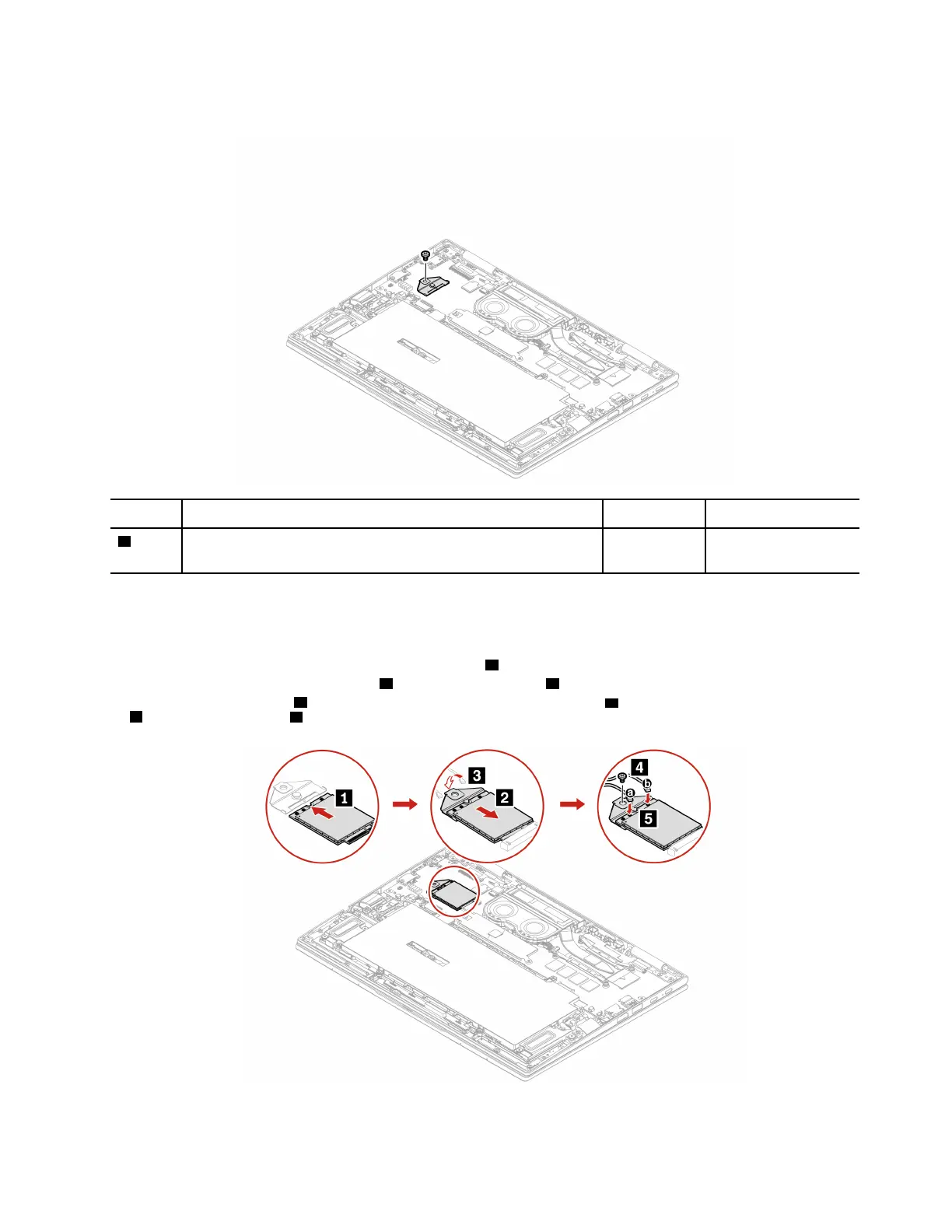

Installation procedure

• Type one: 4G wireless WAN card

Note: Attach the bracket to the wireless WAN card 1 . Insert the wireless WAN card and bracket into the

slot at an angle of about 20 degrees

2 , and pivot downward 3 . Install the screw to secure the wireless

WAN card and bracket.

4 . Ensure that you connect the blue cable to a connector and the orange cable to

b connector as shown 5 .

• Type two: 5G wireless WAN card

Chapter 8. Removing or replacing a FRU 69
