Screw (quantity)
Color
Torque
M3 × 5 mm, Zn coated (9)
Blue-white 5 ± 0.5 lb/in
When installing:
Clean all thermal grease that has been used and then apply new thermal grease if needed.
Microprocessor socket cover installation procedure
The failing system board must be returned with a microprocessor socket cover to protect the pins during
shipping and handling.
1. After you have removed the microprocessor from the failing system board, close the microprocessor
retainer. Then, put the lever to the locked position to secure the retainer in place.

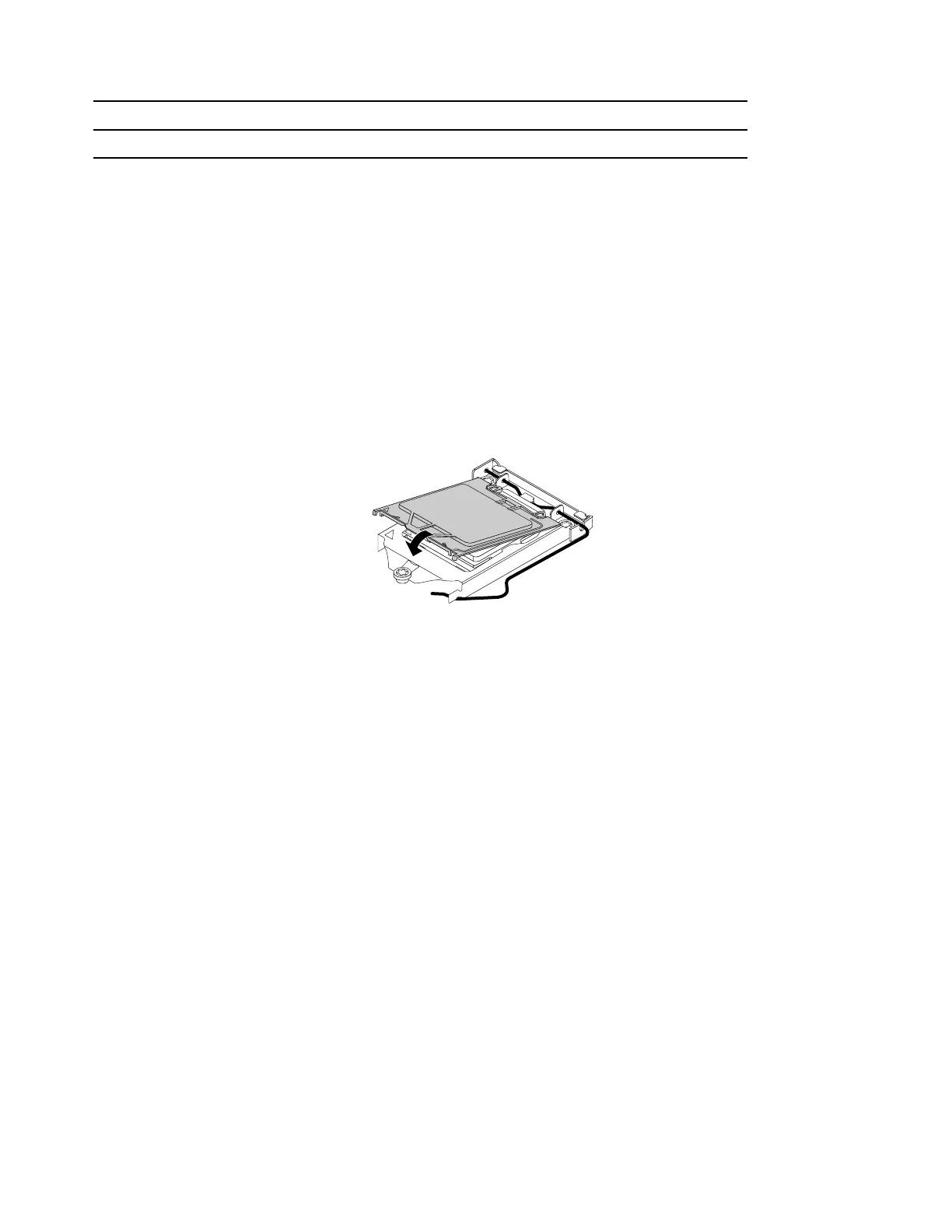

2. Note the orientation of the socket cover, and install one side of the socket cover into the microprocessor
socket. Carefully press the other side of the socket cover downward until the socket cover snaps into
position.
Note: The microprocessor socket cover might look slightly different from the illustration.
3. Carefully check the four corners of the socket cover to ensure that the cover is seated securely.
4. Follow any additional instructions that are included with the replacement part you received.
Rear I/O bracket
Prerequisite
Before you start, read Generic Safety and Compliance Notices, and print the following instructions.
For access, do the following:
1. Turn off the computer and remove all connected devices and cables.
2. Remove the following parts in order.
• “Power cord” on page 46
• “Computer cover” on page 48
• “Front bezel” on page 49
• “Storage drive cage” on page 52
• “Front I/O bracket” on page 68
• “Memory module” on page 53
• “M.2 solid-state drive and heatsink” on page 55
• “Microprocessor heatsink and fan assembly” on page 57
• “PCI-Express card and PCI-Express card holder” on page 59
• “Wi-Fi card shield and Wi-Fi card” on page 72
