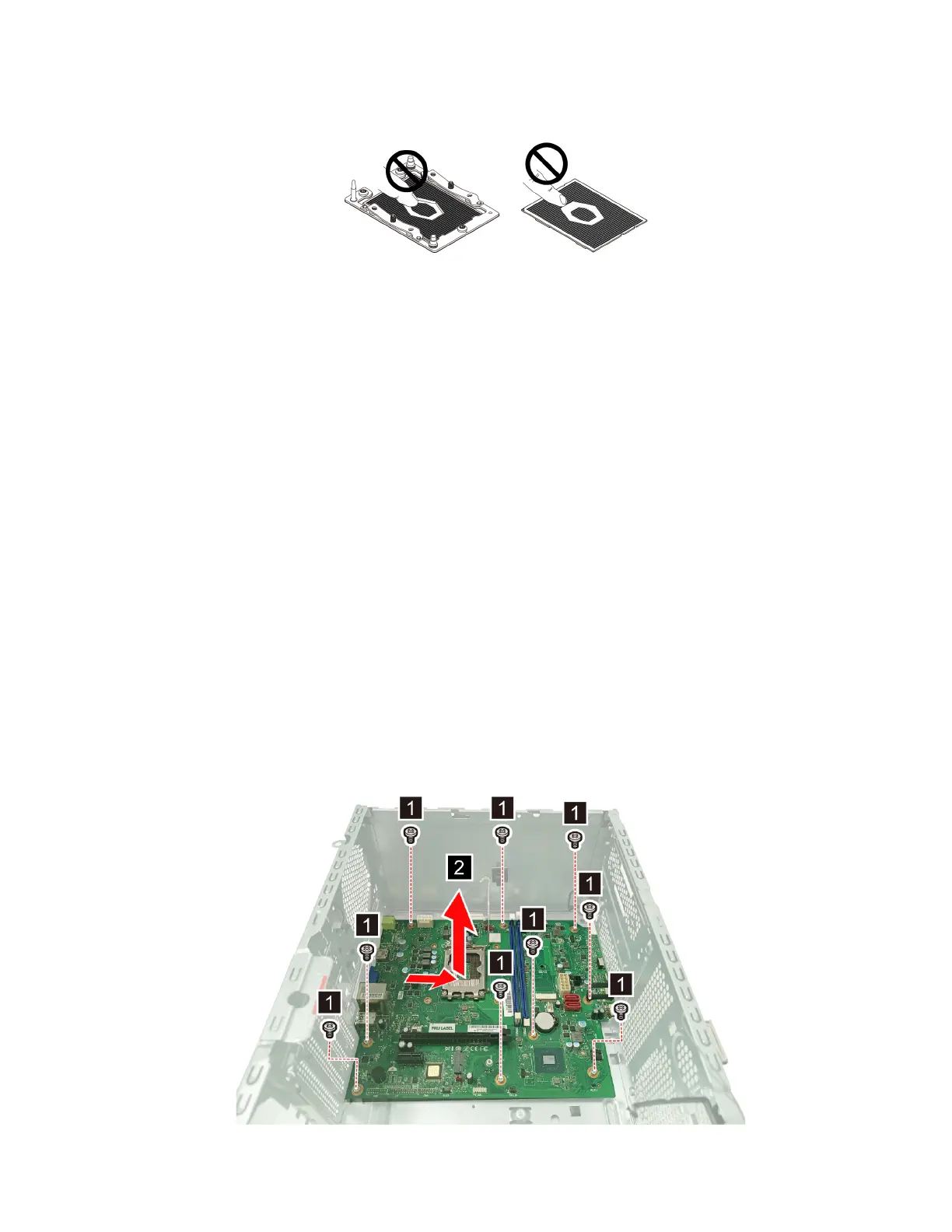

• Do not touch the pins on the microprocessor socket or the gold contacts on the microprocessor.
For access, do the following:
1. Turn off the computer and remove all connected devices and cables.
2. Remove the following parts in order.
• “Power cord” on page 46
• “Computer cover” on page 48
• “Front bezel” on page 49
• “Storage drive cage” on page 52
• “Front I/O bracket” on page 68
• “Memory module” on page 53
• “M.2 solid-state drive and heatsink” on page 55
• “Microprocessor heatsink and fan assembly” on page 57
• “PCI-Express card and PCI-Express card holder” on page 59
• “Wi-Fi card shield and Wi-Fi card” on page 72
• “Rear fan” on page 77
• “Microprocessor” on page 77
3. Record the cable routing and cable connections, and then disconnect all cables from the system board.
See “System board” on page 45.
Removal steps
Chapter 5. Hardware removal and installation 79
