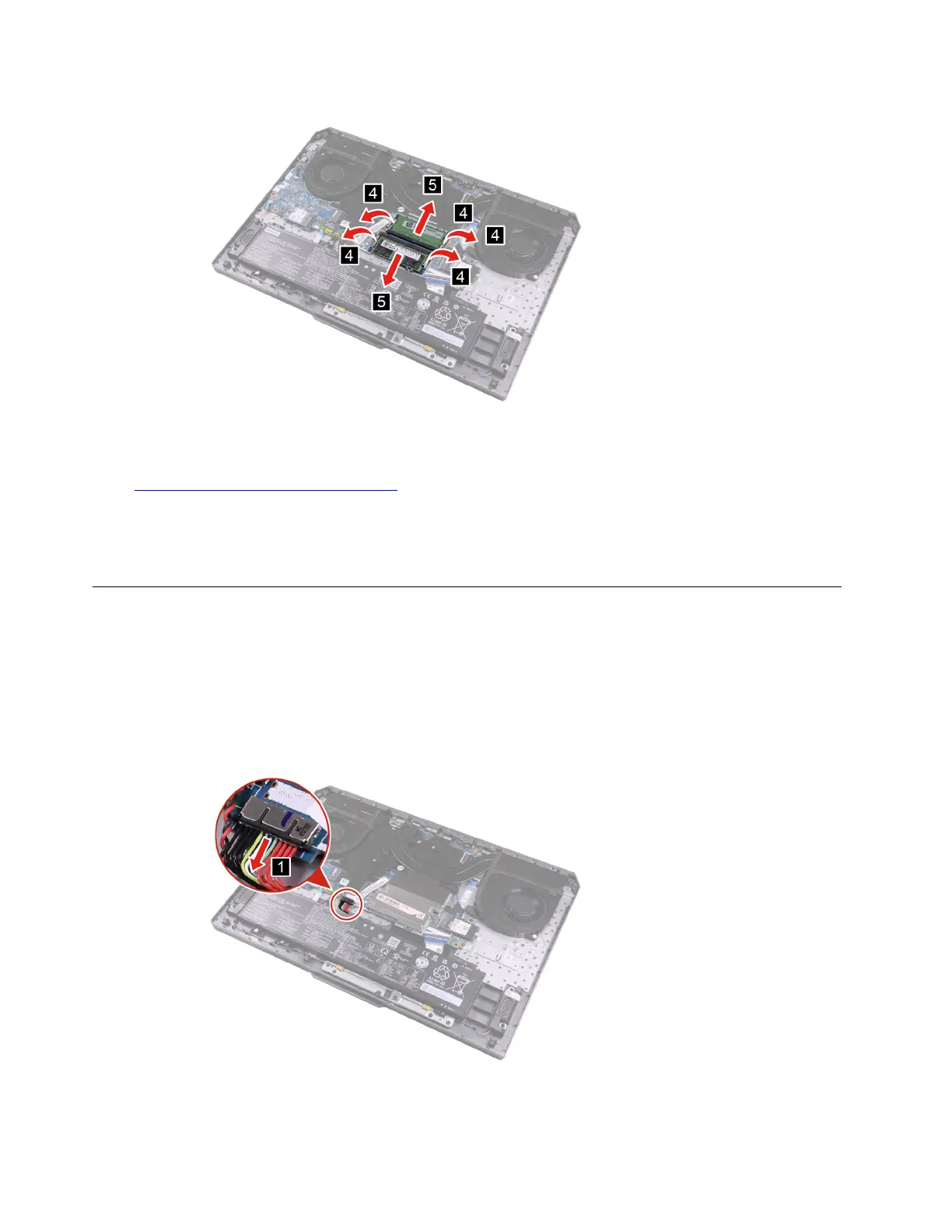

Figure 14. Open the latches and remove the memory module
Go to https://support.lenovo.com/partslookup to look up the Lenovo part numbers of the following
replacement part:
DIMM shielding
Memory module
Remove the strip cover
Make sure the following FRUs (or CRUs) have been removed.
“Remove the lower case” on page 29
Step 1. Disconnect the battery pack cable from the system board (1).
Attention: Use your fingernail to pull the connector to unplug it. Do not pull the cable.
Figure 15. Disconnect the battery pack cable
36 Lenovo LOQ 17IRX10 Hardware Maintenance Manual
