Remove the 2242 solid-state drive (for selected models)
Make sure the following FRUs (or CRUs) have been removed.
“Remove the lower case” on page 30
Step 1. Disconnect the battery pack cable from the system board, remove one screw, and remove the
2242 solid-state drive by pulling it away from the slot.
Attention: Use your fingernail to pull the connector to unplug it. Do not pull the cable.

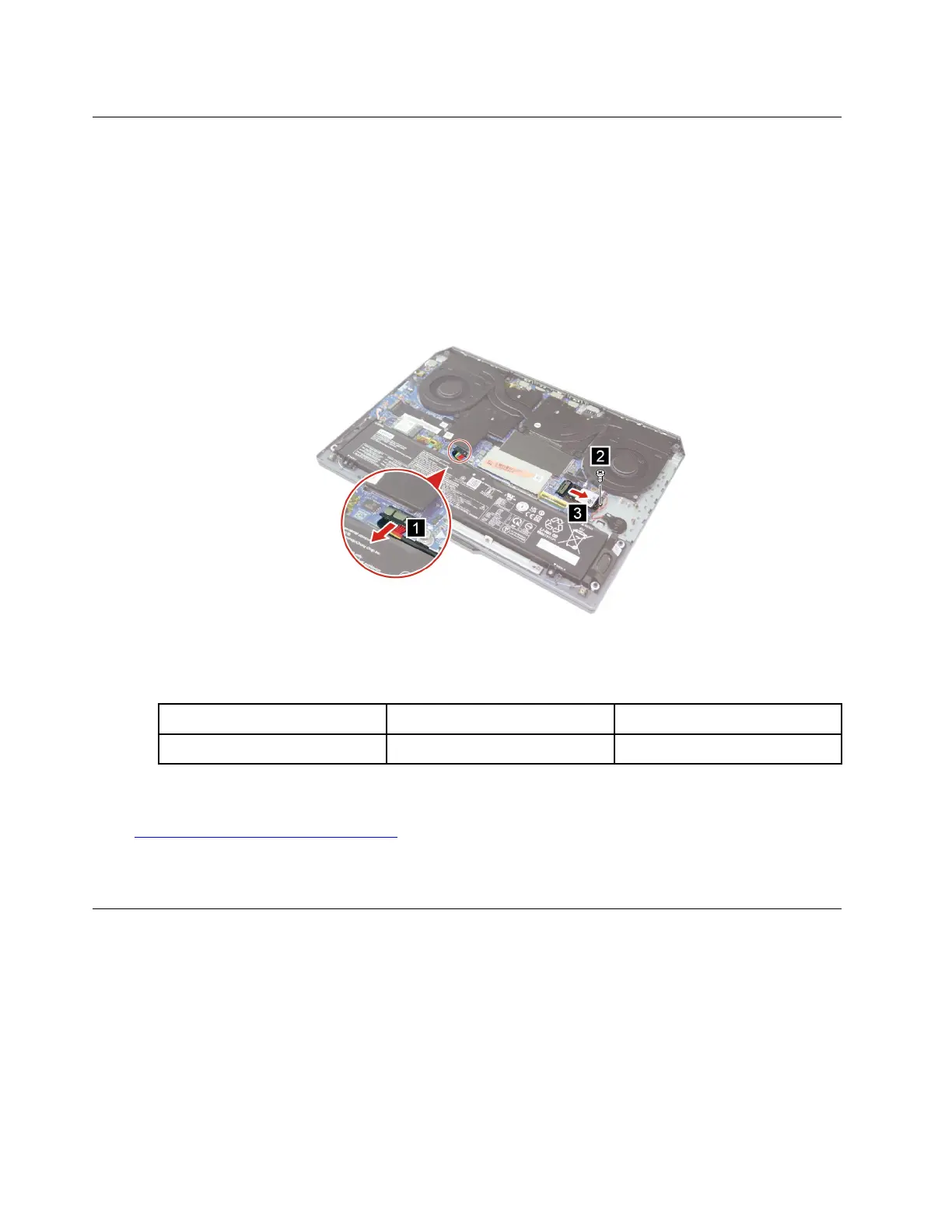

Figure 12. Disconnect the battery pack cable, remove one screw, and remove the 2242 solid-state drive
Screw specifications
Number of screws Torque
M2 × L3 1
1.85 ± 0.15 kgf-cm
Note: The product supports up to two solid-state drives. Remove both if needed.
Go to
https://support.lenovo.com/partslookup to look up the Lenovo part numbers of the following
replacement part:
2242 solid-state drive
Remove the 2280 solid-state drive (for selected models)
Make sure the following FRUs (or CRUs) have been removed.
“Remove the lower case” on page 30
Step 1. Disconnect the battery pack cable from the system board, remove one screw, and remove the
2280 solid-state drive by pulling it away from the slot.
Attention: Use your fingernail to pull the connector to unplug it. Do not pull the cable.
36
Hardware Maintenance Manual
