“Remove the solid-state drive (SSD) plate (right)” on page 55
“Remove the solid-state drive (SSD)” on page 56
“Remove the Wi-Fi card” on page 57
“Remove the memory module” on page 59
“Remove the DC-in bracket” on page 60
“Remove the thermal module” on page 63

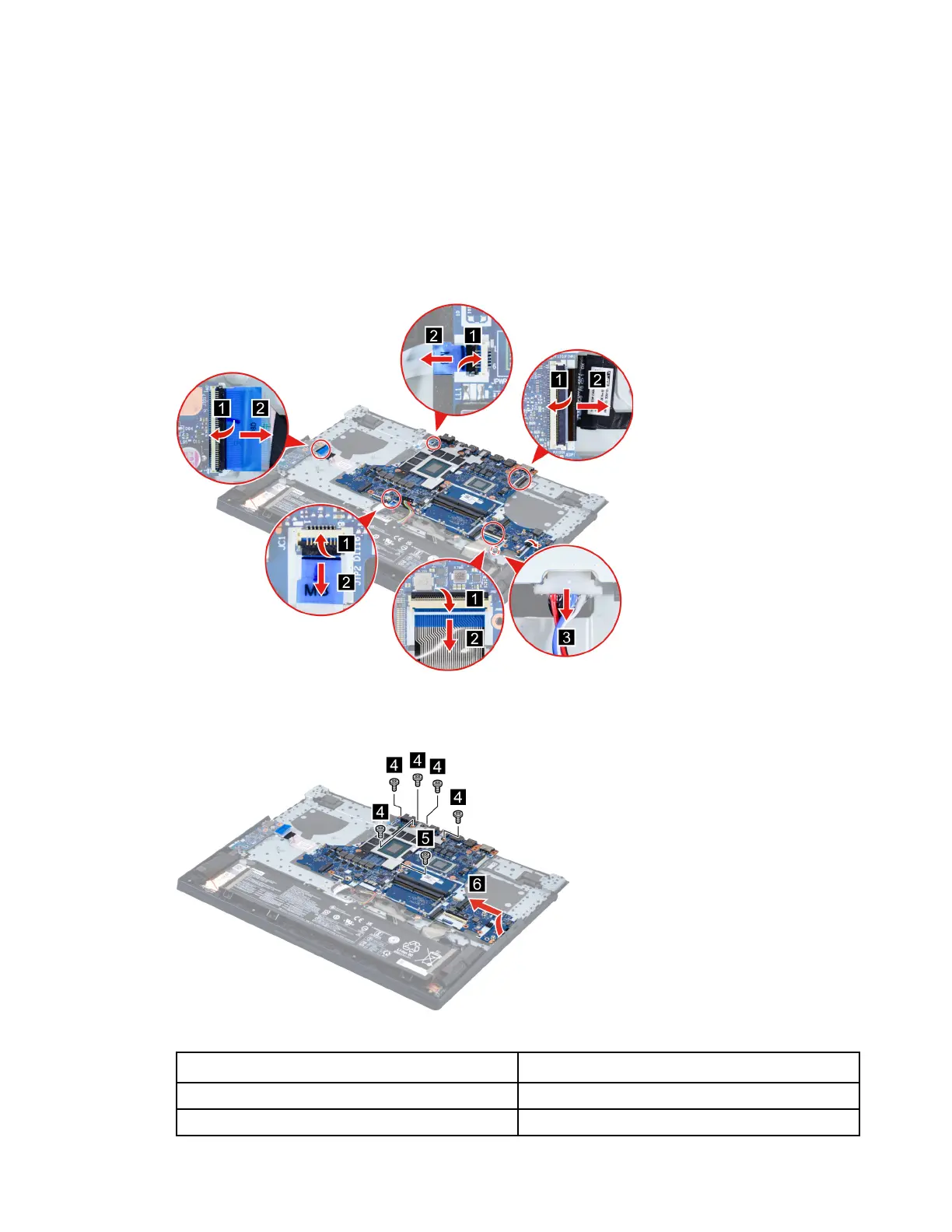

Step 1. Disconnect cables connected to the system board.
Figure 60. Disconnect cables connected to the system board
Step 2. Remove six screws and then turn over the system board.
Figure 61. Remove six screws and turn over the system board
Screw specifications
Number of screws
M2 xL4.5
5
M2 x L2.2 1
Chapter 4. Removing a FRU or CRU 65
