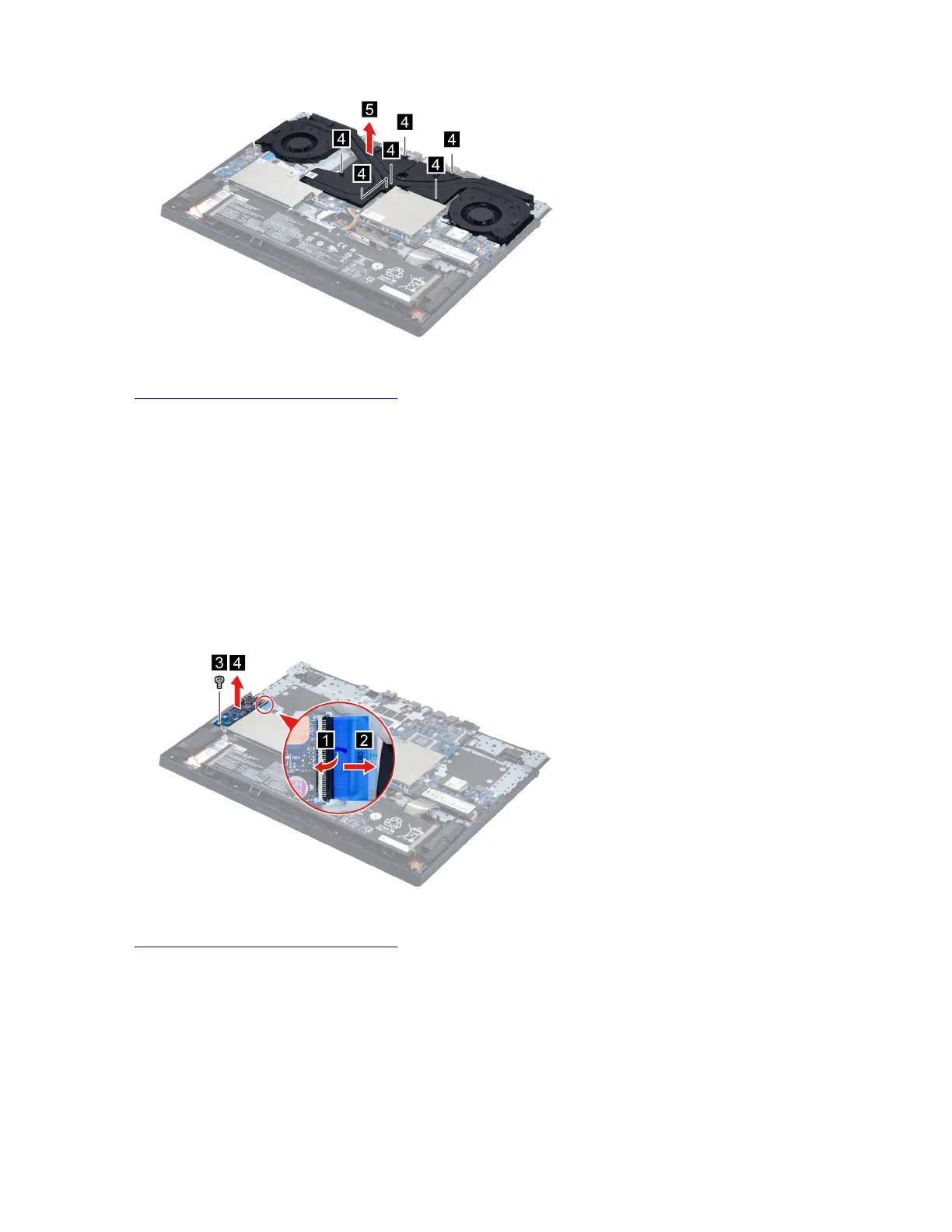

Figure 58. Loosen six screws and then remove the thermal module.
Go to https://support.lenovo.com/partslookup to look up the Lenovo part number of the following replacement
part:
Thermal module
Remove the I/O board
Make sure the following FRUs (or CRUs) have been removed.
“Remove the lower case” on page 53
“Remove the solid-state drive (SSD) plate (left)” on page 54
“Remove the thermal module” on page 63
Step 1. Disconnect the I/O board cable from the I/O board and then remove the I/O board.
Figure 59. Remove the I/O board
Go to https://support.lenovo.com/partslookup to look up the Lenovo part number of the following replacement
part:
I/O board
Remove the system board and the I/O board cable
Make sure the following FRUs (or CRUs) have been removed.
“Remove the lower case” on page 53
“Remove the solid-state drive (SSD) plate (left)” on page 54
64
Hardware Maintenance Manual
