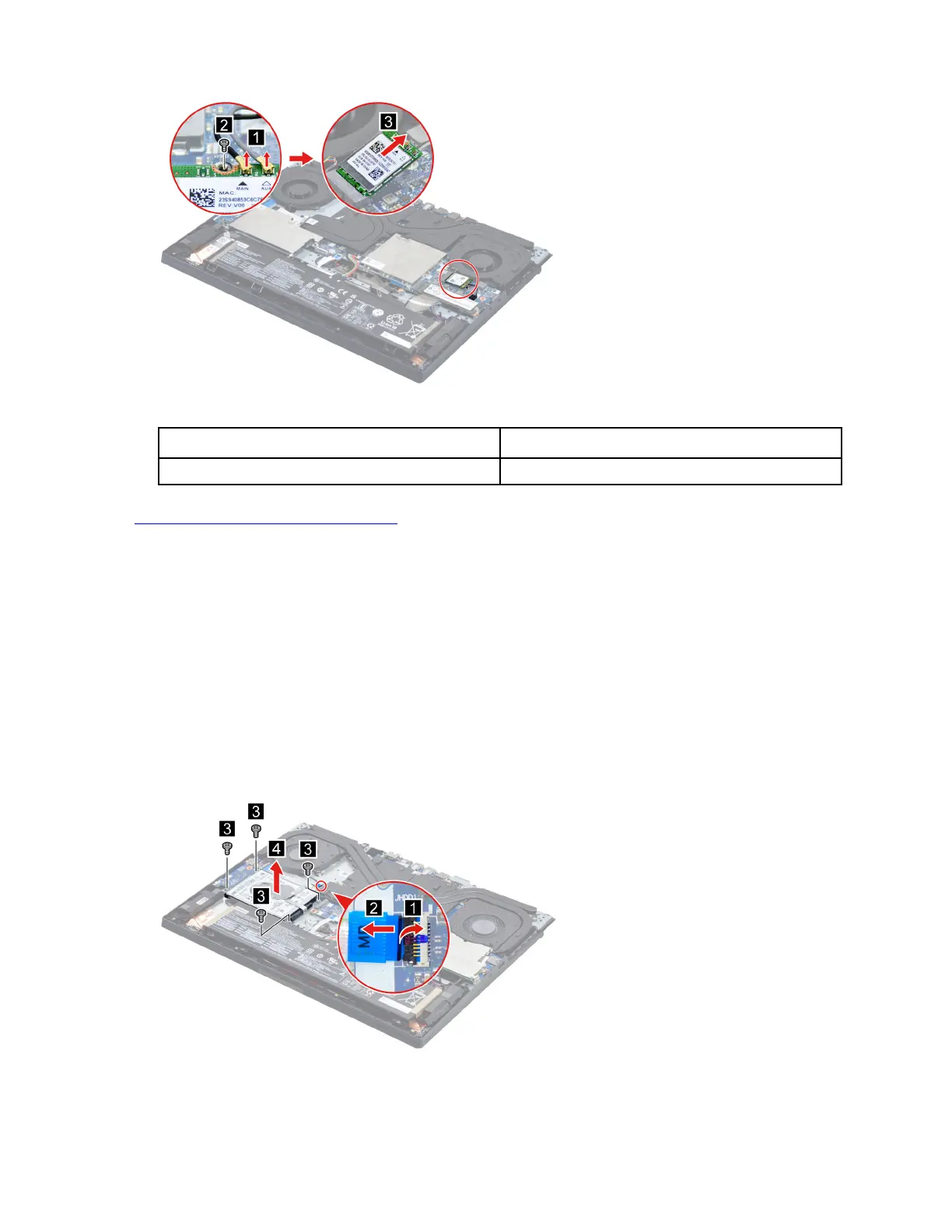

Figure 47. Remove the Wi-Fi card
Screw specifications Number of screws
M2 x L2 1
Go to
https://support.lenovo.com/partslookup to look up the Lenovo part number of the following replacement
part:
Wi-Fi card
Remove the hard disk drive (HDD) module (for selected models)
Make sure the following FRU (or CRU) has been removed.
“Remove the lower case” on page 53
Step 1. Disconnect the battery cable from the system board.
Attention: Use your fingernails to pull the connector to unplug it. Do not pull the cable.
Step 2. Disconnect the HDD cable from the system board. Remove four screws and then remove the HDD
module.
Figure 48. Remove the HDD module
58 Hardware Maintenance Manual
