Remove the solid-state drive (SSD) plates
Make sure the following FRU (or CRU) has been removed.
“Remove the lower case” on page 33
Step 1. Disconnect the battery pack cable from the system board.
Attention: Use your fingernails to pull the connector to unplug it. Do not pull the cable.

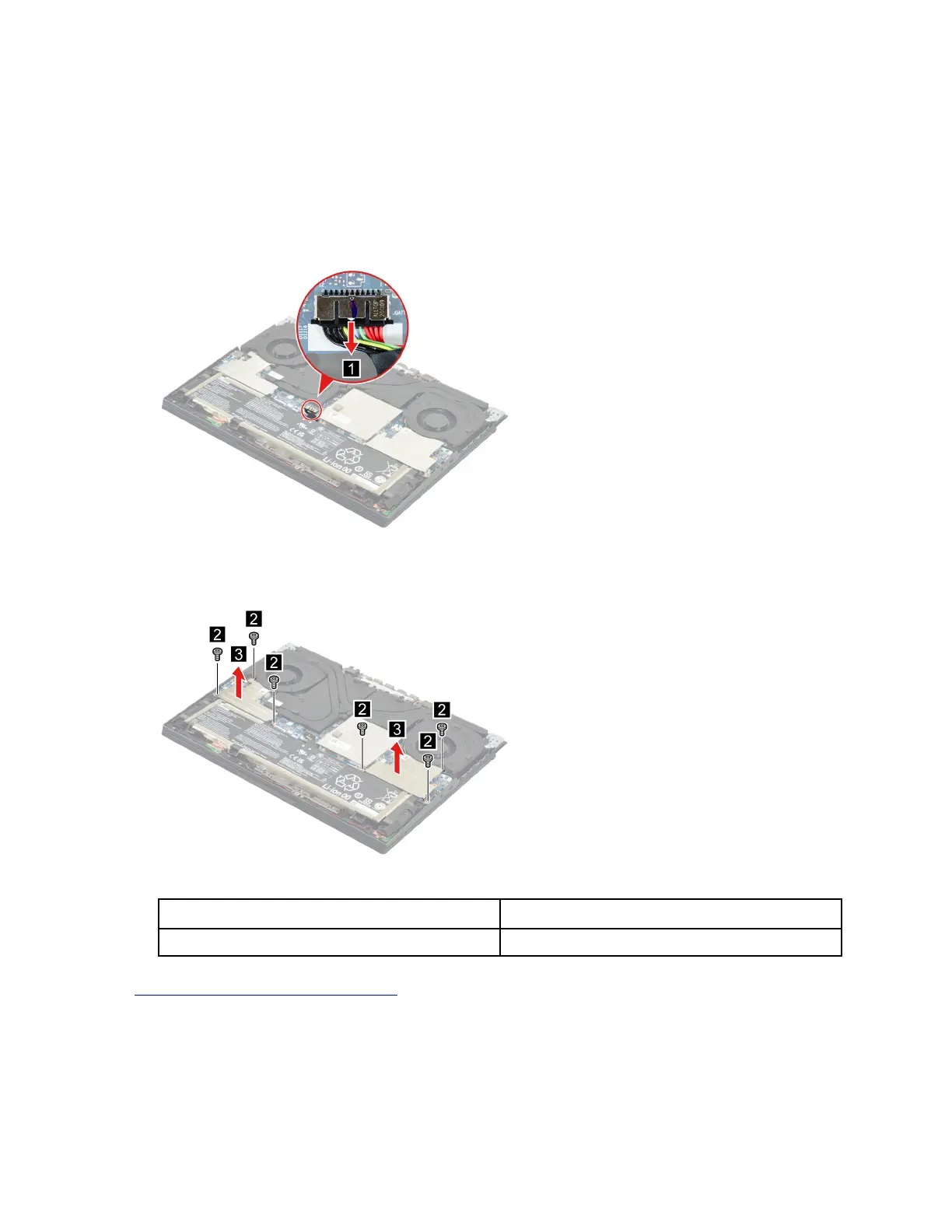

Figure 7. Disconnect the battery pack cable from the system board
Step 2. Remove six screws and then remove the SSD plates carefully.
Figure 8. Remove the SSD plates
Screw specifications Number of screws
M2 x L4.5 6
Go to
https://support.lenovo.com/partslookup to look up the Lenovo part number of the following replacement
part:
Solid-state drive (SSD) plates
Remove the battery pack
Make sure the following FRU (or CRU) has been removed.
34
Hardware Maintenance Manual
