18 / EN
Hood / User Manual
10
Mounting sheet stacks

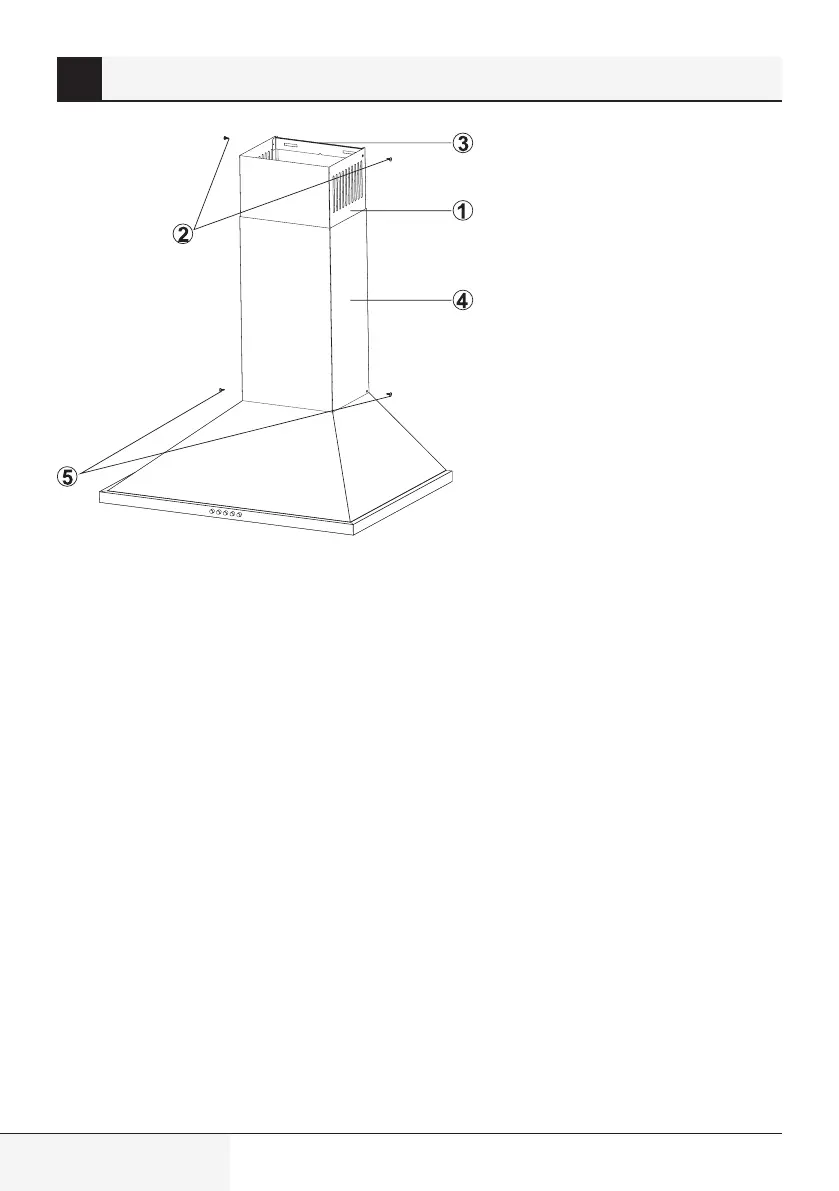

Figure 10: Mounting sheet stacks
1. Internal Stack
2. Internal Stack Connection Sheet Fixing Screws
3. Stack Connection Metallic Sheet
4. External Stack
5. External Stack Fitting Screw
Install air exhaust connection of the appliance.
Internal and external sheet stacks are inserted
to each other. “Installation Scheme and Parts”.
Center stack connection sheet (3) on the hood,
hold it under the cover or measure and mark C,
D points. (Figure 10)
– Drill C, D points with Ø6mm drill and place
Ø6mm plastic pins. Place stack connection
sheet on the surface where 3.9x22 screws
will be installed. (Figure 10)
– Pull out the internal stack (1) using screws (2)
and screw it on stack connection sheet on the
right and left (3). (Figure 10)
– Mount the external stack (4) on hood body
using 2 screws (5). (Figure 10)
