Hood / User Manual
17 / EN
9
Installation of the product
9.1 Installation scheme and parts
10

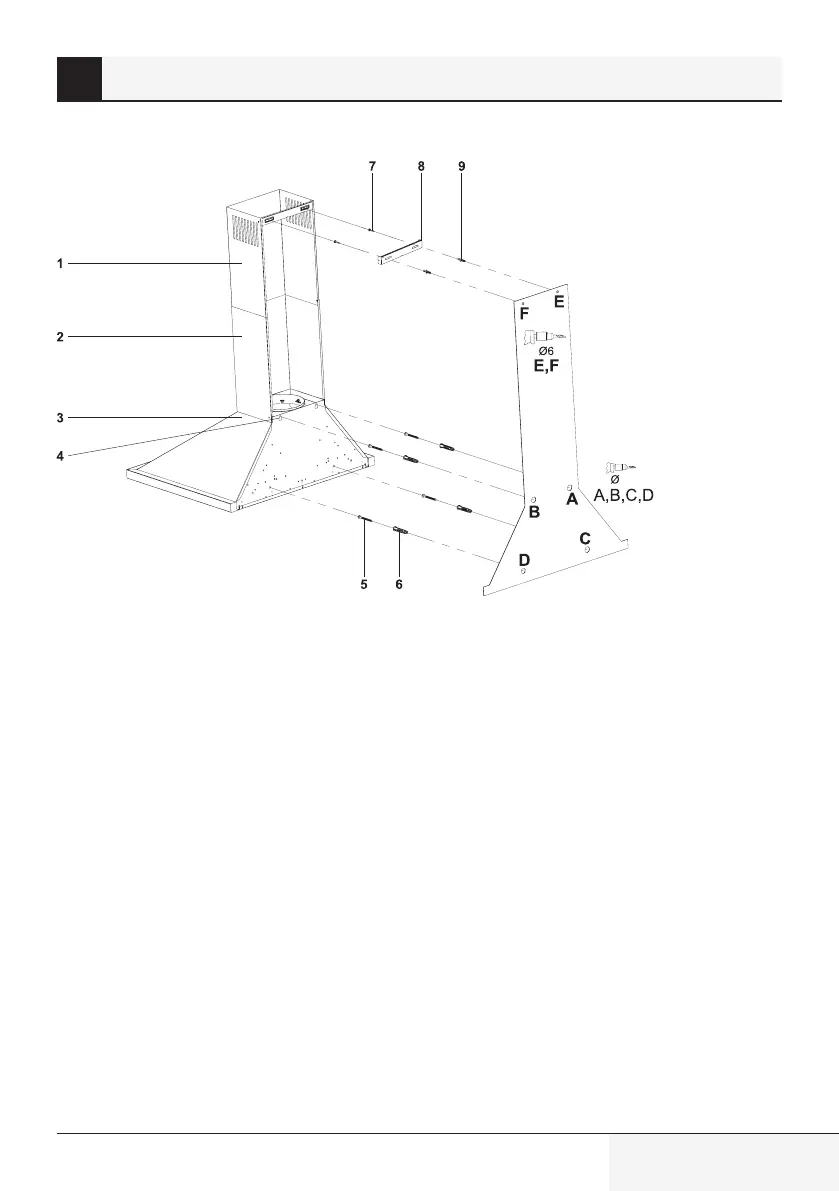

Figure 9: Installation and parts
1. Internal Stack
2. External Stack
3. Body
4. Product Rack Sheet
5. 2x 5.5x60 Wall Rack Screw
6. 2x Ø10mm Plastic Pin
7. 2x 3.9x22 Screw
8. Stack Connection Metallic Sheet
9. 2x Ø6mm Plastic Pin
Install the hood using the installation scheme.
– Check the minimum and maximum distance
according to workbench and drill points A, B.
(Figure 9)
– Place Ø10mm pins in drilled A, B points and
screw the screws to A+B points leaving 5
mm gap between screw head and the wall.
(Figure 9)
– Hang the hood on the wall using A, B points.
