RAK112B_ENG / 2023-06-27
21 / 40

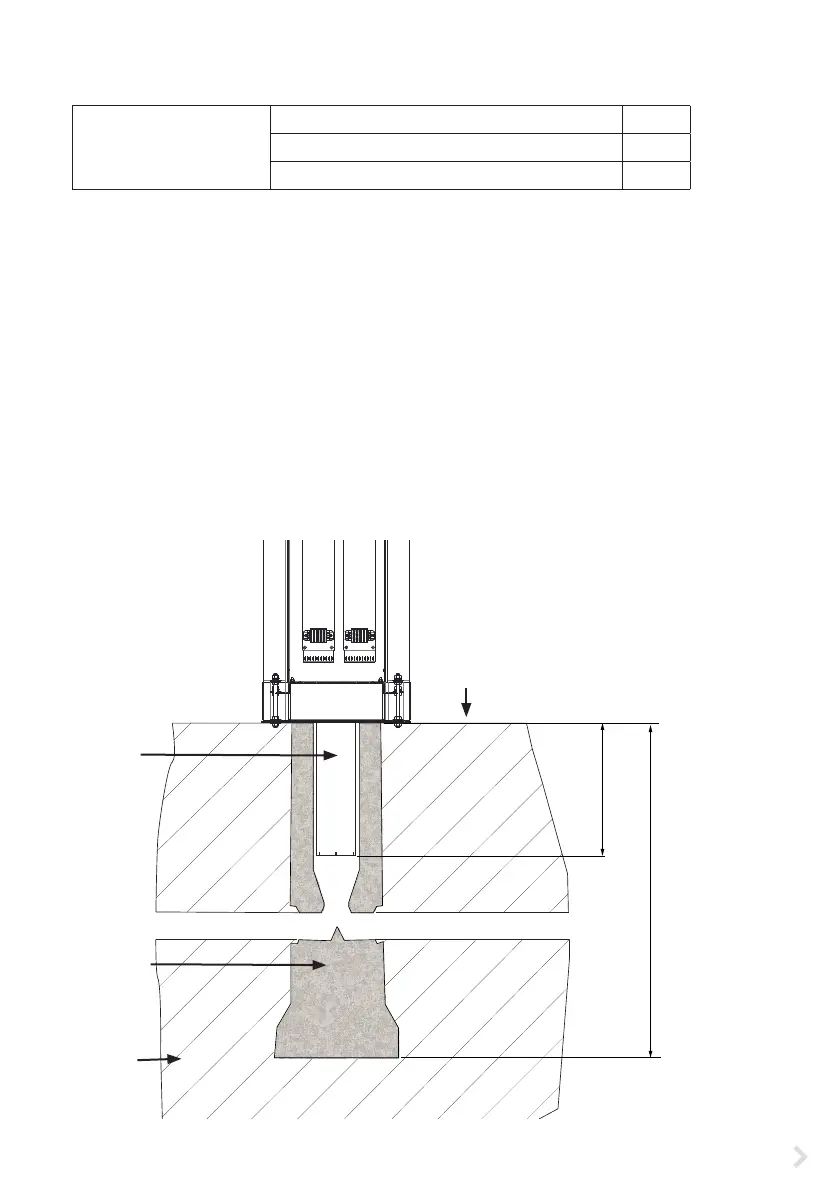

7.7. EVF300 mounting on concrete foundation
Installation accessories
Mounting box EVTL35.00 1 pcs
Adapter for concrete foundation EVTL37.00 1 pcs
Concrete foundation 1 pcs
This example describes installation procedure when using a concrete foundation supplied by Sähkö-Joki-
nen Oy, product code SJR-08.
If you want to use a foundation manufactured by another supplier, make sure that the foundation is com-
patible with the adapter.
• Plan the installation depth so that the top surface of the adapter is above the ground surface. Take
into consideration the possible paving materials.
• Dig a trench for cable conduits and an excavation pit for the concrete foundation to applicable
depths.
• Lift the foundation into the pit.
• Put cable pipes for supply and output chaining and, if necessary, the cable pipe for the data cable
into the ground. Install the pipes in relevant inlets.
• Close the unused inlets with plugs.
• Tighten the foundation to its place by lling the excess space outside the foundation with gravel.
800
450
Ground
Gravel
Adapter
EVTL37.00
Concrete
foundation
Cable protection pipe Ø110
