Super-Minature Belt Pack Transmitter
Rio Rancho, NM
7

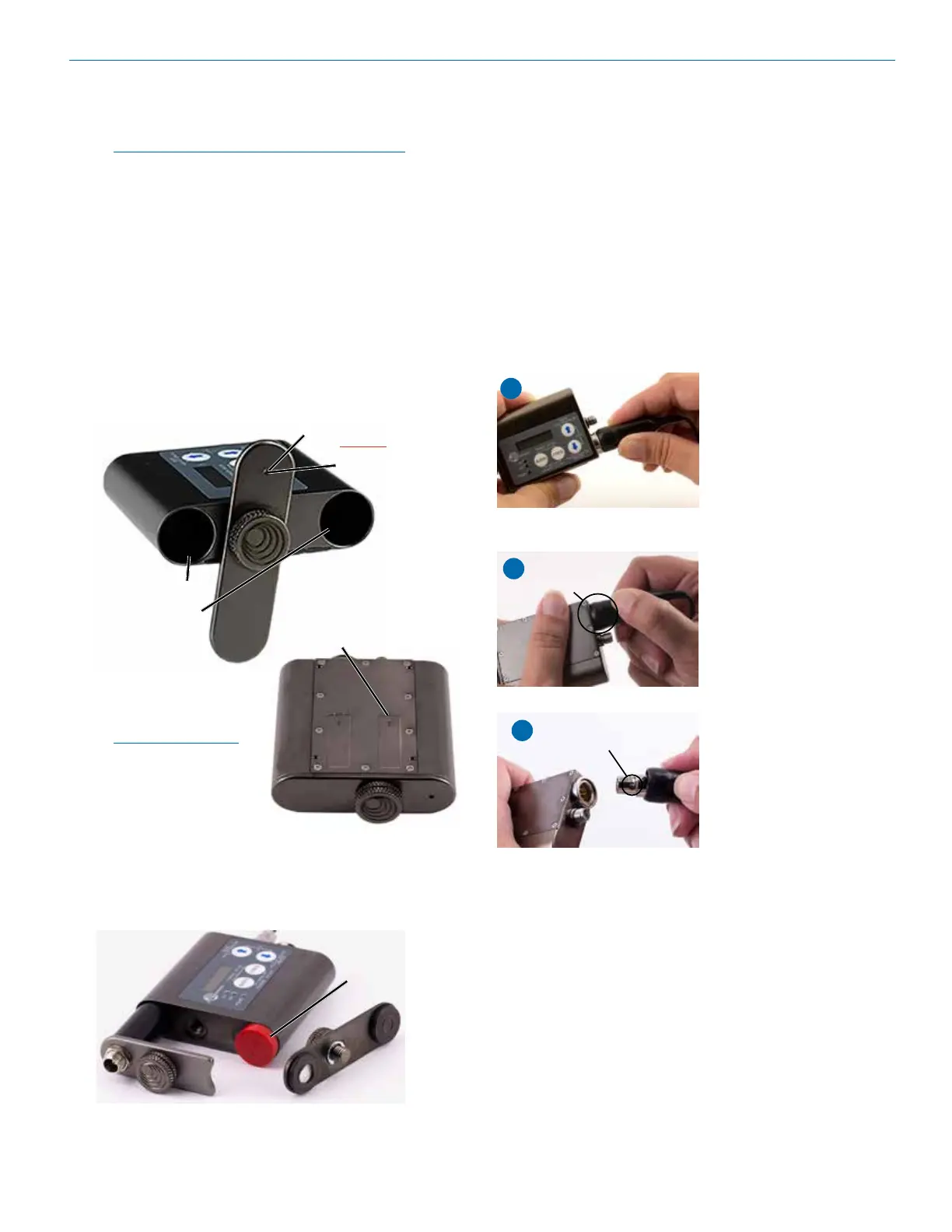

Battery and Battery
Eliminator Installation
Note: Standard zinc-carbon batteries marked
“heavy-duty” or “long-lasting” are not
adequate.
The battery status circuitry is designed for the voltage
drop over the life of lithium batteries.
To install new batteries:
1. Turn the Battery Cover Plate Thumbscrew counter-
clockwise a few turns until the door will rotate.
2. Insert the new batteries into the housing. The posi-
tive (+) battery terminal goes into the transmit-
ter rst.
3. Align the Battery Cover Plate and tighten the Bat-
tery Cover Plate Thumbscrew.
Two battery
compartments
(SMQV)
Gore-Tex®
covered vent
Polarity
engraved into
housing
Do Not
Cover Vent
NOTE: Refer to the
previous section entitled
Configuring for Power
Restore
To install the battery eliminator, loosen the
thumbscrew completely and remove the battery
door. Insert the battery eliminator and tighten the
thumbscrew.
Install plastic cap
on dual battery
model to cover
the open battery
compartment.
Attaching and Removing
the Microphone
The exible sleeve over the 5-pin plug on the microphone
helps prevent dust and moisture from getting into the
input jack. The ange around the rim of the connector on
the transmitter helps retain the sleeve after it is installed
and
The following procedure simplies the attachment and
removal of the microphone to assure the sleeve is seated
securely.
Align the pins on the plug and jack and insert the con-
nector.
1
If the sleeve is pulled
down and covering the
connector, squeeze the
end of the sleeve so you
can feel the connector
inside and press it into the
jack until it latches.
Pinch and
squeeze the
sleeve on this
end to work it
down over the
2
Pinch and squeeze the
sleeve near the ange and
work it down with a
kneading motion over the
ange all the way around
until it stays in place ush
with the housing. Pull on
the connector to make
sure it is rmly latched.
3
Release button
To remove the connector,
pull the sleeve back to
expose the black release
button. Press the button
to unlatch the plug.
Gore - Tex is a Registered trademark of W. L. Gore and Associates
