Digital IEM Transmitter
Rio Rancho, NM
19

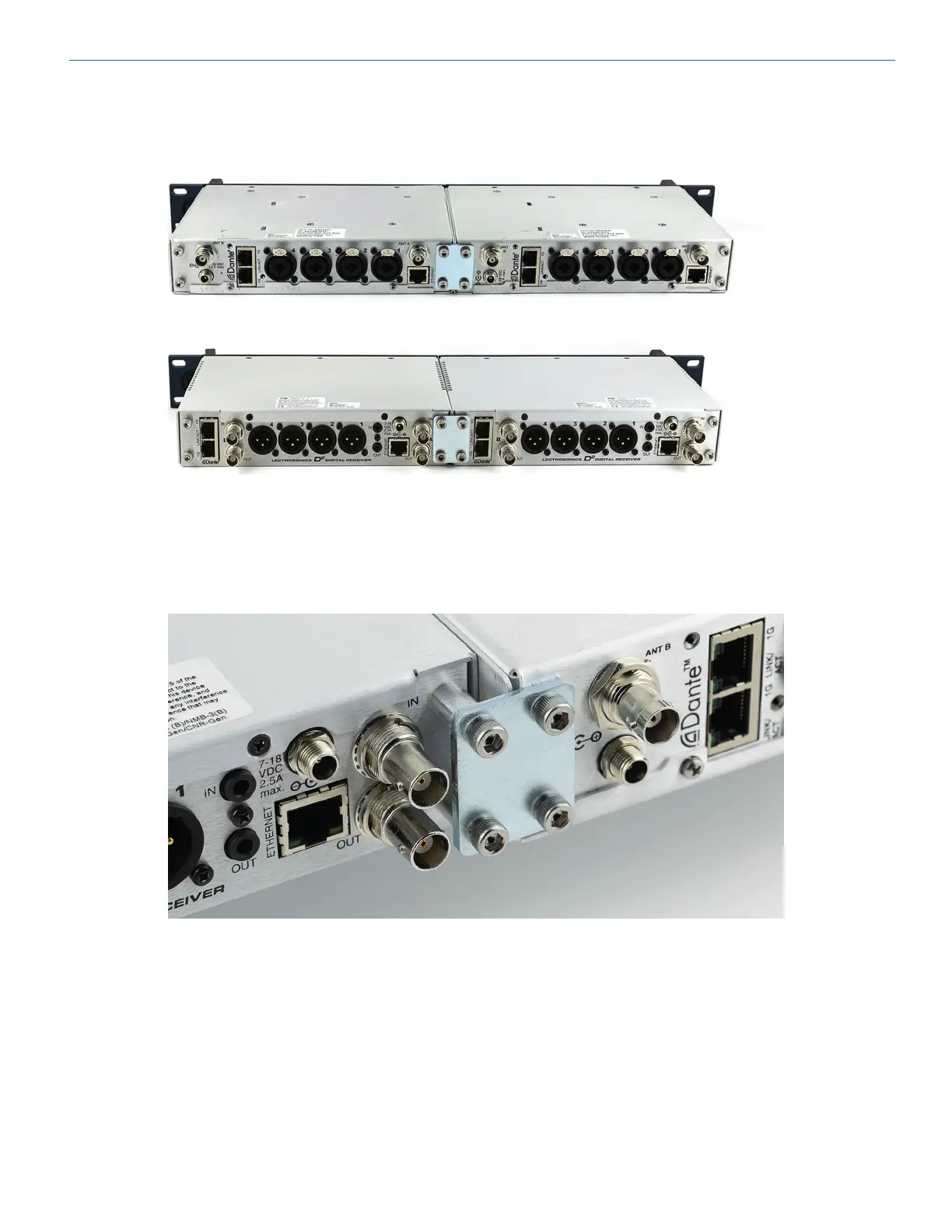

Mounting M2T To DSQD
When mounting two M2Ts or two DSQDs together, the units lie ush together as shown. This is not the case with an
M2T and a DSQD, as the DSQD housing is shorter and the spacer tubes are needed.
Recommended DSQD-M2T
mounting
When attaching an M2T to a DSQD unit, the preferred conguration (when viewing from the back side) is to have the
DSQD to the left and the M2T to the right. If the units are mounted the opposite way, the mounting plate will partially
block the Dante
®
ports on the DSQD, making it dicult to remove the cables. Having the DSQD on the left as shown
below eliminates this inconvenience.
Two DSQD units
Two M2T units
