LAVOR - IFH-175
USER MANUAL
175,000BTU - Industrial Fan Forced Heater
TOOLS REQUIRED:
• Medium Phillips screwdriver (2.75 inches).
• M5 open-end or adjustable wrench.
• Long nose pliers.
ASSEMBLY INSTRUCTIONS:

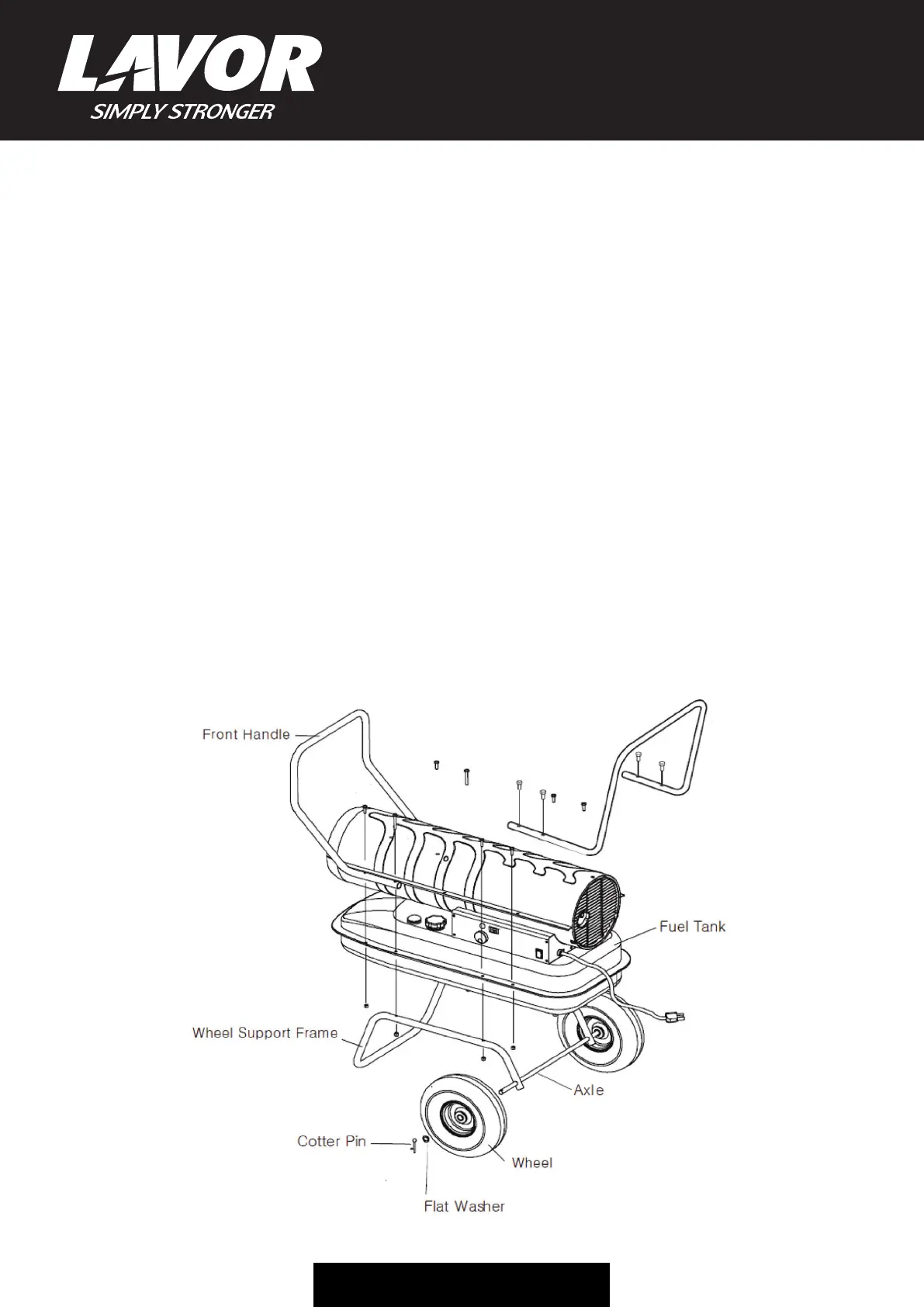

1. Slide the axle through the wheel support frame. Install the wheels on the axle, ensuring the extended hub
of the wheel points toward the wheel support frame.
2. Place at washers and a cotter pin on the axle ends. Use long nose pliers to bend the cotter pin and secure
it in place.
3. Position the heater on the wheel support frame, ensuring the air inlet end (rear) of the heater is above the
wheels. Align the holes on the fuel tank ange with the holes on the support frame.
4. Place the handle on top of the fuel tank ange. Insert screws through the handle, fuel tank ange, and
wheel support frame as shown in Figure 8. Attach nuts nger-tight after inserting each screw.
5. Once all screws are inserted, rmly tighten all nuts.
Important: Do not operate the heater without the support frame fully assembled and securely attached to the
fuel tank.
This model comes pre-assembled with handles and an adjustable pipe. Assembly is only required for the
wheels with shaft brackets.
